Reliable interconnection is essential for the stable operation of industrial equipment.

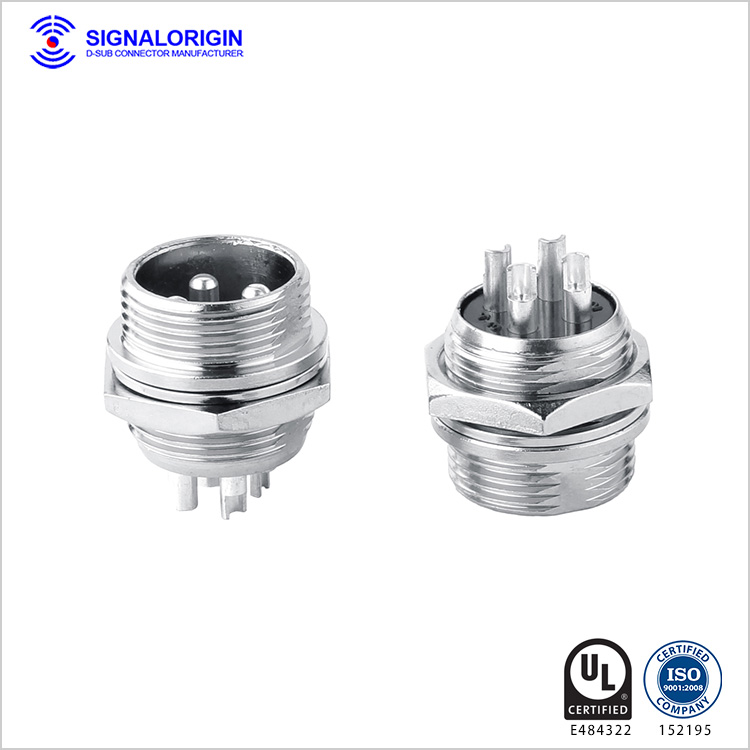

The Signalorigin M16 circular connector is designed for high-strength industrial applications.
It offers a safe, stable, and professional interconnect solution for demanding environments.

Stable Mechanical Connection

The Signalorigin M16 circular connector uses integrated injection molding for the housing and terminals.
This process keeps the terminals stable and prevents rotation after insertion.

The socket adopts embedded riveting technology, while the plug features locking wire blades.
These designs improve mechanical strength and connection stability.

Testing shows that the connector can support a load of more than 15 kg.
It also withstands over 500 mating cycles, ensuring long service life.
This makes it suitable for long-term industrial operation.

Secure Electrical Performance

The female contacts are designed with a crown spring socket structure.
This structure increases the contact area and improves electrical stability.

The connector supports a maximum current of 12 A.
The contact resistance is as low as 5 mΩ max.
These features ensure efficient and stable current transmission.

Once locked, the connector remains secure.
It maintains reliable performance even under vibration or mechanical shock.

High Protection for Harsh Environments

Industrial equipment often operates in harsh conditions.
These include moisture, dust, corrosion, and temperature changes.

The Signalorigin M16 circular connector uses multiple sealing rings on both plug and socket.
It provides excellent waterproof performance.
The connector supports operation at depths of up to 50 meters underwater.

The shell is made from die-cast alloy material.
A special surface treatment improves strength and corrosion resistance.
The connector passes over 1000 hours of salt spray testing.
It is well suited for harsh industrial environments.
