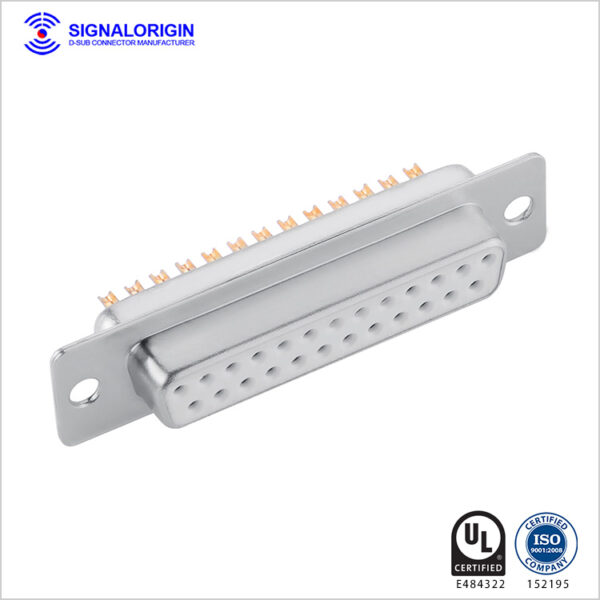

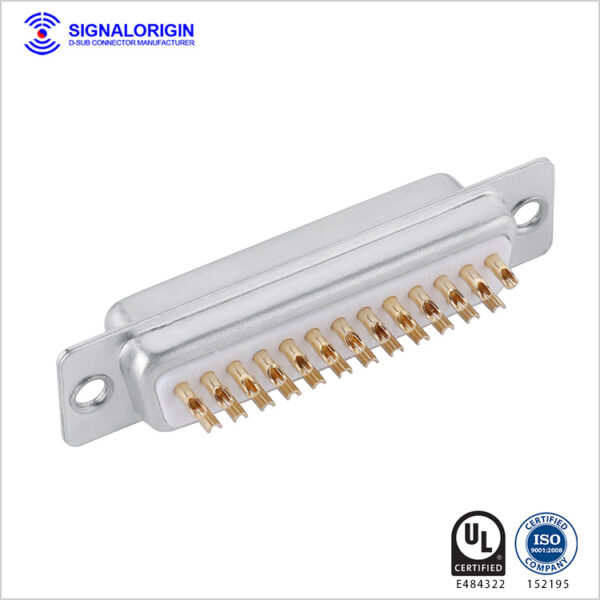

SIGNALORIGIN 25-Pin Female D-Sub Connector – Solder Cup Type
Reliable and Versatile Solution for High-Performance Connectivity
SIGNALORIGIN is a professional manufacturer of 25-pin female D-sub connectors with solder cup terminations, engineered to deliver secure, high-quality signal connections. Our D-sub connector range includes both male and female variants with various termination styles such as solder buckets, straight pins, and right-angle pins, available in 9, 15, 25, and 37 pin configurations.
These connectors are widely used in military, aerospace, industrial control systems, medical equipment, telecommunications, and computer interface applications. Designed for durability and precision, our D-Subminiature portfolio also includes custom accessories to support complex designs, offering an economical and dependable solution for demanding electronic environments.
SIGNALORIGIN 25-Pin Female D-Sub Connector – Solder Cup Type
Reliable and Versatile Solution for High-Performance Connectivity
SIGNALORIGIN is a professional manufacturer of 25-pin female D-sub connectors with solder cup terminations, engineered to deliver secure, high-quality signal connections. Our D-sub connector range includes both male and female variants with various termination styles such as solder buckets, straight pins, and right-angle pins, available in 9, 15, 25, and 37 pin configurations.
These connectors are widely used in military, aerospace, industrial control systems, medical equipment, telecommunications, and computer interface applications. Designed for durability and precision, our D-Subminiature portfolio also includes custom accessories to support complex designs, offering an economical and dependable solution for demanding electronic environments.
| Material | Insulator material | PBT+30% G. F(UL94V-O) |
| Insulator color | Black/Blue (can be customized) | |
| Contacts material | Copper alloy | |
| Contact plating | Gold flash over nickel, 1U”-30U” | |
| Shell material | SPCC, NICKEL/TIN plated | |
| Screws | Copper alloy/Ni plated | |
| Electrical | Working voltage | 300V |
| Contact current rating | 5A (customized) | |
| Contact resistance | 15mΩ Max | |
| Insulation resistance | 1000MΩ Min.at 500v DC | |
| Mechanical | Dielectric strength | 500V AC rms for 1 minute |
| Insertion force | ￠1.0 :0.6～2 N /Pin
￠3.6:2～7 N /Pin |
|
| Extraction force | ￠1.0:0.2 N /Pin MIN
￠3.6:0.5 N /Pin MIN |
|
| Durability | 500 cycles | |
| Operating temperature | -55°C to +125°C |
