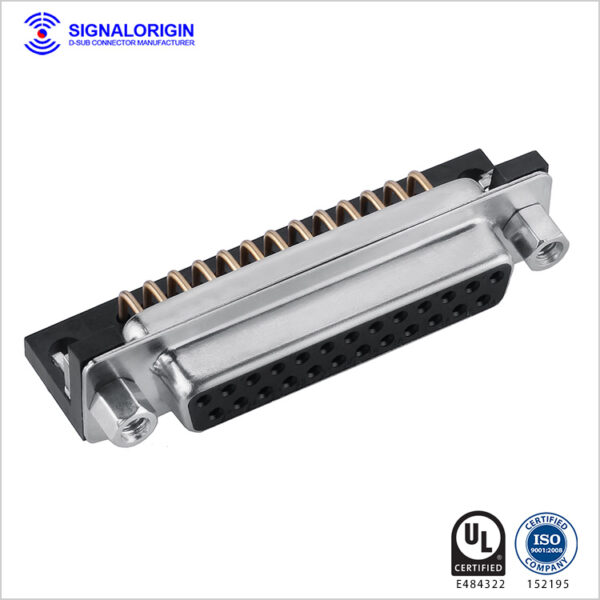

25-Pin Female D-Sub Right Angle PCB Connector – Compact, Reliable, and Versatile
SIGNALORIGIN is a leading manufacturer of 25-pin D-sub female PCB right angle connectors, engineered for precision alignment and stable signal transmission. Available in 9, 15, 25, and 37 pin configurations, our D-sub connector range supports various terminations including solder buckets, straight pins, and right-angle solder pins, making it adaptable for different design requirements.
Ideal for Military, Industrial, Medical & Communication Systems
Designed for reliability in mission-critical environments, SIGNALORIGIN’s D-subminiature connectors are widely used in military electronics, aerospace systems, medical instruments, telecom infrastructure, and computing devices. With a full range of compatible accessories, we offer cost-effective and flexible solutions for even the most complex applications.
Discover SIGNALORIGIN – your global partner in precision D-sub connectivity.
25-Pin Female D-Sub Right Angle PCB Connector – Compact, Reliable, and Versatile
SIGNALORIGIN is a leading manufacturer of 25-pin D-sub female PCB right angle connectors, engineered for precision alignment and stable signal transmission. Available in 9, 15, 25, and 37 pin configurations, our D-sub connector range supports various terminations including solder buckets, straight pins, and right-angle solder pins, making it adaptable for different design requirements.
Ideal for Military, Industrial, Medical & Communication Systems
Designed for reliability in mission-critical environments, SIGNALORIGIN’s D-subminiature connectors are widely used in military electronics, aerospace systems, medical instruments, telecom infrastructure, and computing devices. With a full range of compatible accessories, we offer cost-effective and flexible solutions for even the most complex applications.
Discover SIGNALORIGIN – your global partner in precision D-sub connectivity.
|
Material |
Insulator material | PBT+30% G.F (UL94V-O) |
| Insulator color | Black/Blue (can be customized) | |
| Contacts material | Phosphor copper | |
| Contact plating | Gold finish over nickel | |
| Shell material | Steel/SPCC-SD, nickel or tin plated | |
|
Electrical |
Dielectric rating | 300V AC |
| Current rating | 5 AMP | |
| Contacts OD | ∮1.0 | |
| Contact resistance | 15mΩ Max | |
| Insulation resistance | 1000MΩ Min at 500V DC | |
|
Mechanical |
Dielectric withstanding voltage | 750V AC rms at 1 minute |
| Insertion force | ∮1.0:0.2 N /Pin MIN | |
| Extraction force | ∮1.0:0.2 N /Pin MIN | |
| Durability | 500 cycles | |
| Operating temperature | -55°C to +105°C |
