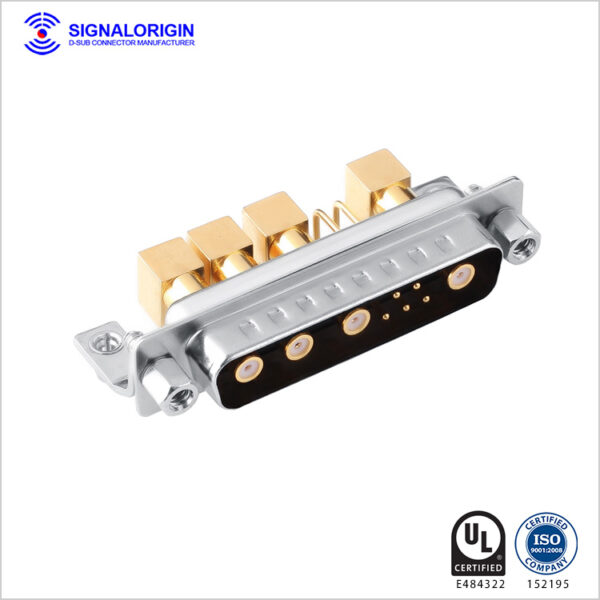

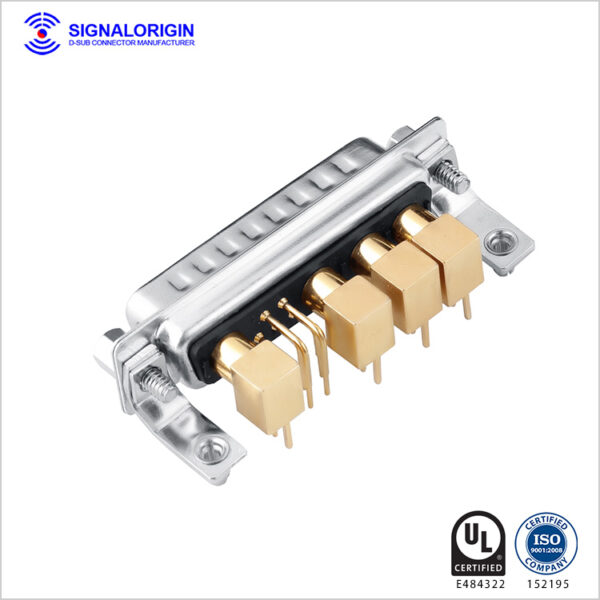

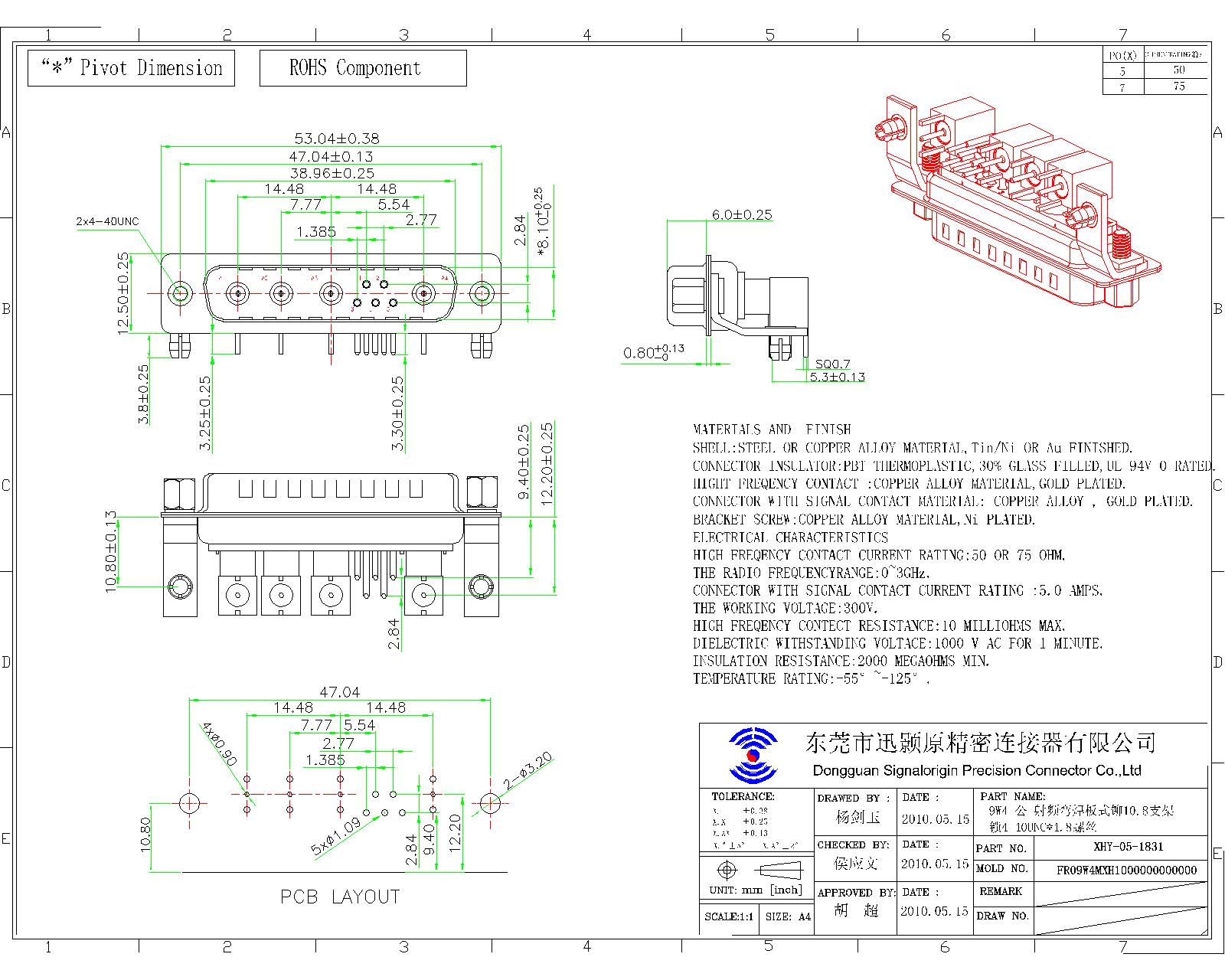

SIGNALORIGIN 9W4 Male Right Angle Coaxial Combo D-Sub Connectors are engineered with a mixed layout that integrates signal, power (up to 40A), and coaxial RF contacts (50Ω & 75Ω) within a compact D-sub shell. This hybrid design delivers high performance and space-saving benefits for PCB layouts and I/O interfaces, making it ideal for telecom, broadcast systems, industrial automation, and military equipment.
As a leading D-sub connector manufacturer, SIGNALORIGIN offers a full line of D-subminiature solutions including standard, high-density, combo, high-power, dual-port, waterproof, and coaxial D-sub connectors. With customization options, fast delivery, and competitive wholesale pricing, our products are built to meet complex connectivity demands in critical environments.
SIGNALORIGIN 9W4 Male Right Angle Coaxial Combo D-Sub Connectors are engineered with a mixed layout that integrates signal, power (up to 40A), and coaxial RF contacts (50Ω & 75Ω) within a compact D-sub shell. This hybrid design delivers high performance and space-saving benefits for PCB layouts and I/O interfaces, making it ideal for telecom, broadcast systems, industrial automation, and military equipment.
As a leading D-sub connector manufacturer, SIGNALORIGIN offers a full line of D-subminiature solutions including standard, high-density, combo, high-power, dual-port, waterproof, and coaxial D-sub connectors. With customization options, fast delivery, and competitive wholesale pricing, our products are built to meet complex connectivity demands in critical environments.
| Material | Insulator material | PBT thermoplastic, UL94-V0 fireproof rated |
| Insulator color | Black/Blue (can be customized) | |
| High frequency contact | Copper alloy material, gold plated | |
| Connector with signal contact material | Copper alloy, gold plated | |
| Shell material | Copper alloy, gold plated | |
| Bracket/Screw | Copper alloy material, Ni plated | |
| Electrical | High frequency contact current rating | 50 or 75 ohm |
| The radio frequency | 0~3GHz | |
| Connector with signal contact current rating | 5A | |
| The working voltage | 300V | |
| High frequency contact resistance | 10 milliohms max | |
| Insulation resistance | 2000 megaohms min | |
| Mechanical | Dielectric withstanding voltage | 1000V AC rms at 1 minute |
| Insertion force | ￠1.0 :0.6～2 N /Pin
￠3.6:2～7 N /Pin |
|
| Extraction force | ￠1.0:0.2 N /Pin MIN
￠3.6:0.5 N /Pin MIN |
|
| Durability | 500 cycles | |
| Operating temperature | -55°C to +125°C |
