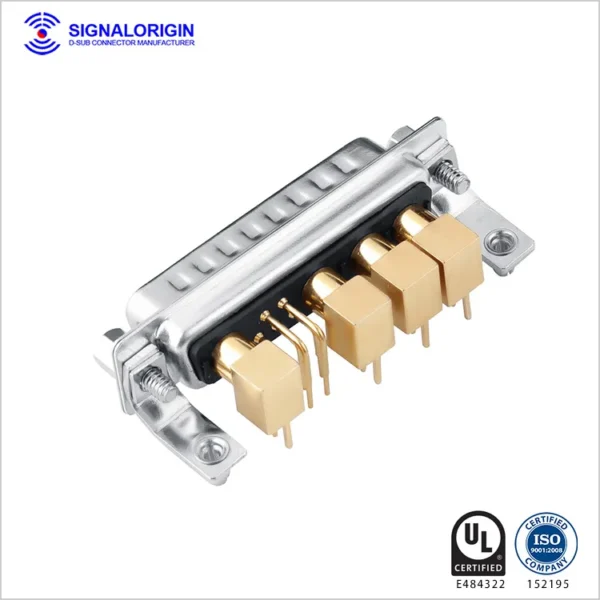

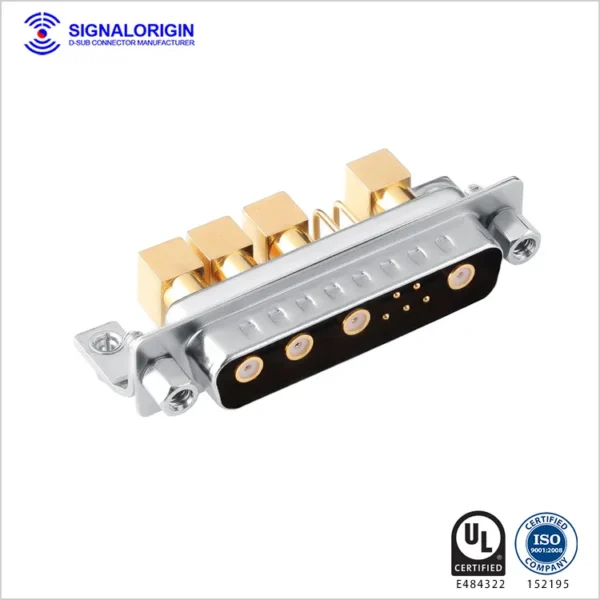

SIGNALORIGIN Offers High-quality 9W4 Male Right Angle Coaxial D-sub Connectors For Wholesale, Ideal For Compact PCB Layouts And Advanced I/O Systems. These Combo D-sub Connectorsintegrate Signal, High-power, And RF Coaxial Contacts (50Ω / 75Ω) Within Standard D-sub Shells, Providing An All-in-one Space-saving Solution For Industrial Control, Medical Devices, Communication Equipment, And Military Applications.
Our D-sub Connector Series Includes Standard, High-density, High-power, Dual-port, Waterproof, And Coaxial D-sub Types, All Manufactured With Precision To Meet International Standards. Designed For Versatility And Reliability, Our Connectors Support A Wide Range Of Complex Applications. Customization, Free Samples (3–5 Sets), And Fast Global Delivery (3–7 Days) Are Available To Help Accelerate Your Product Development Cycle.
| Material | Insulator material | PBT thermoplastic, UL94-V0 fireproof rated |
| Insulator color | Black/Blue (can be customized) | |
| High frequency contact | Copper alloy material, gold plated | |
| Connector with signal contact material | Copper alloy, gold plated | |
| Shell material | Copper alloy, gold plated | |
| Bracket/Screw | Copper alloy material, Ni plated | |
| Electrical | High frequency contact current rating | 50 or 75 ohm |
| The radio frequency | 0~3GHz | |
| Connector with signal contact current rating | 5A | |
| The working voltage | 300V | |
| High frequency contact resistance | 10 milliohms max | |
| Insulation resistance | 2000 megaohms min | |
| Mechanical | Dielectric withstanding voltage | 1000V AC rms at 1 minute |
| Insertion force | ￠1.0 :0.6～2 N /Pin
￠3.6:2～7 N /Pin |
|
| Extraction force | ￠1.0:0.2 N /Pin MIN
￠3.6:0.5 N /Pin MIN |
|
| Durability | 500 cycles | |
| Operating temperature | -55°C to +125°C |
