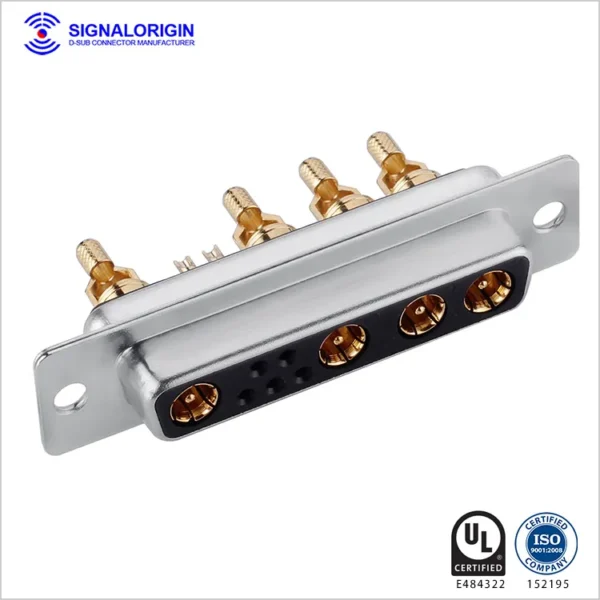

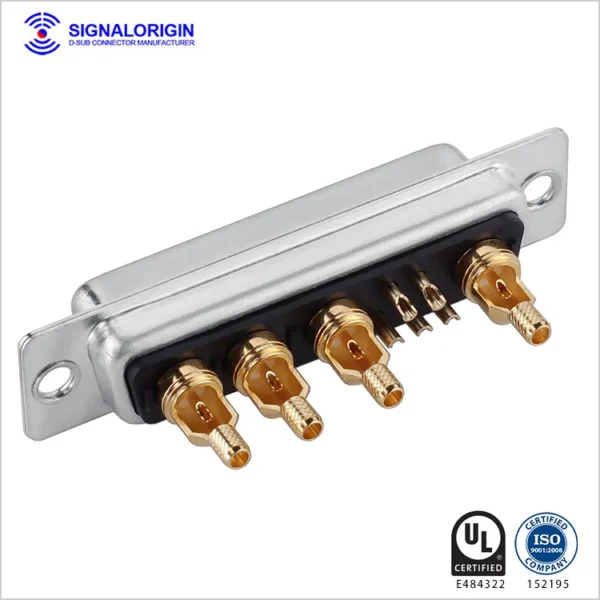

SIGNALORIGIN Offers High-performance 9W4 D-sub Coaxial Connector (female Solder Cup), Built With Precision Machined Contacts For Exceptional Signal Integrity And Reliability Under High-intensity And Mission-critical Conditions. Housed In Nickel Or Tin-plated Steel Shells, The Connector Features Flame-retardant PBT Insulators And Gold-over-nickel Plated Contacts, Making It Ideal For Industrial Automation, Telecommunication Systems, And Military-grade Applications.
Our High-density D-sub Connectors Are Engineered To Support A Wide Range Of Frequencies (0–3GHz). Backed By UL Safety Certification And ISO 9001 Standards, We Provide Flexible, Durable, And Sealed Solutions Tailored To Your Project Needs. Enjoy Fast Delivery (3–7 Days), Friendly Service, And Free 3–5 Set Samples For Testing. A Perfect Fit For Complex System Integrations Requiring High Performance And Reliability.
| Material | Insulator material | PBT thermoplastic, 30% Glass filled, UL 94V-O rated |
| Insulator color | Black/Blue (can be customized) | |
| Contacts material | Copper alloy material | |
| Contact plating | Gold flash over nickel, 1U”-30U” | |
| Shell material | Steel or copper alloy material, Tin/Ni or Au finished | |
| Electrical | High frequency contact current rating | 50 or 75 ohm |
| The radio frequency | 0~3GHz | |
| Connector with signal contact current rating | 5 A | |
| The working voltage | 300V | |
| High frequency contact resistance | 10 milliohms max | |
| Mechanical | Dielectric withstanding voltage | 1000 v AC for 1 minute |
| Insertion force | ￠1.0 :0.6～2 N /Pin
￠3.6:2～7 N /Pin |
|
| Extraction force | ￠1.0:0.2 N /Pin MIN
￠3.6:0.5 N /Pin MIN |
|
| Durability | 500 cycles | |
| Operating temperature | -55°C to +125°C |
