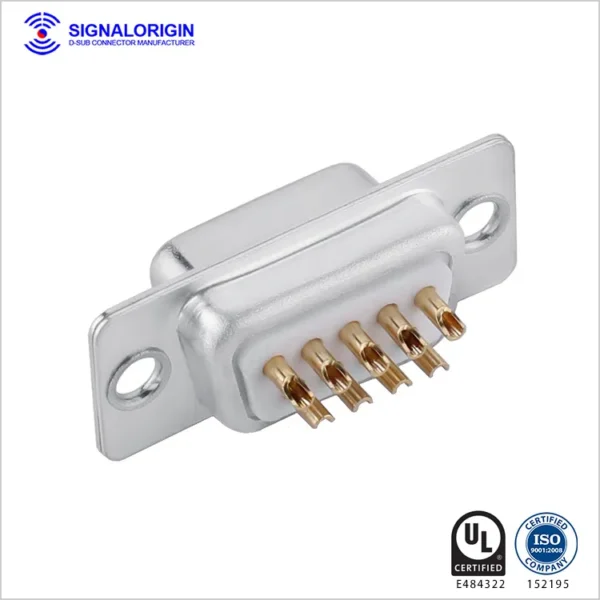

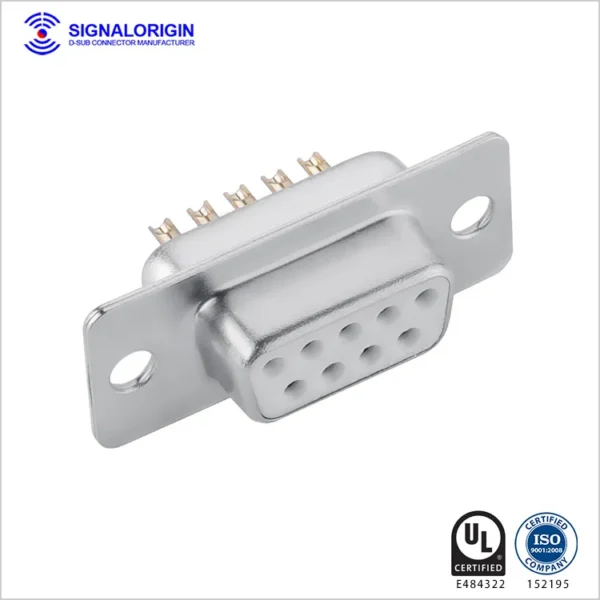

9-Pin D-Sub Female Connector (Solder Cup Type) – Manufactured By Signalorigin
Signalorigin Is A Professional Manufacturer Of 9-Pin D-Sub Female Connectors With Solder Cup Termination, Designed For Secure And Efficient Wire-To-Connector Assembly. Our D-Sub Product Line Includes Both Male And Female Connectors In Solder Bucket, Straight, And Right-Angle Solder Pin Versions, With 9, 15, 25, And 37 Contact Options To Meet A Variety Of Engineering Requirements.
Built For High-Reliability Applications In Sectors Such As Military, Aerospace, Industrial Automation, Medical Equipment, Telecommunications, And Computer Systems, Our D-Sub Connectors Deliver Excellent Electrical Performance And Long-Term Durability. Supported By A Full Range Of Specialized Accessories, Signalorigin Offers Cost-Effective, Flexible Connectivity Solutions Tailored For Complex Electronic Systems.
9-Pin D-Sub Female Connector (Solder Cup Type) – Manufactured By Signalorigin
Signalorigin Is A Professional Manufacturer Of 9-Pin D-Sub Female Connectors With Solder Cup Termination, Designed For Secure And Efficient Wire-To-Connector Assembly. Our D-Sub Product Line Includes Both Male And Female Connectors In Solder Bucket, Straight, And Right-Angle Solder Pin Versions, With 9, 15, 25, And 37 Contact Options To Meet A Variety Of Engineering Requirements.
Built For High-Reliability Applications In Sectors Such As Military, Aerospace, Industrial Automation, Medical Equipment, Telecommunications, And Computer Systems, Our D-Sub Connectors Deliver Excellent Electrical Performance And Long-Term Durability. Supported By A Full Range Of Specialized Accessories, Signalorigin Offers Cost-Effective, Flexible Connectivity Solutions Tailored For Complex Electronic Systems.
|
Material |
Insulator material | PBT+30% G. F(UL94V-O) |
| Insulator color | Black/Blue (can be customized) | |
| Contacts material | Copper alloy | |
| Contact plating
|
Gold flash over nickel, 1U”-30U” | |
| Shell material | SPCC, NICKEL/TIN plated | |
| Screws | Copper alloy/Ni plated | |
|
Electrical |
Working voltage | 300V |
| Contact current rating | 5A (customized) | |
| Contact resistance | 15mΩ Max | |
| Insulation resistance | 1000MΩ Min.at 500v DC | |
|
Mechanical |
Dielectric strength
|
500V AC rms for 1 minute |
| Insertion force | ￠1.0 :0.6～2 N /Pin
￠3.6:2～7 N /Pin |
|
| Extraction force | ￠1.0:0.2 N /Pin MIN
￠3.6:0.5 N /Pin MIN |
|
| Durability | 500 cycles | |
| Operating temperature | -55°C to +125°C |
