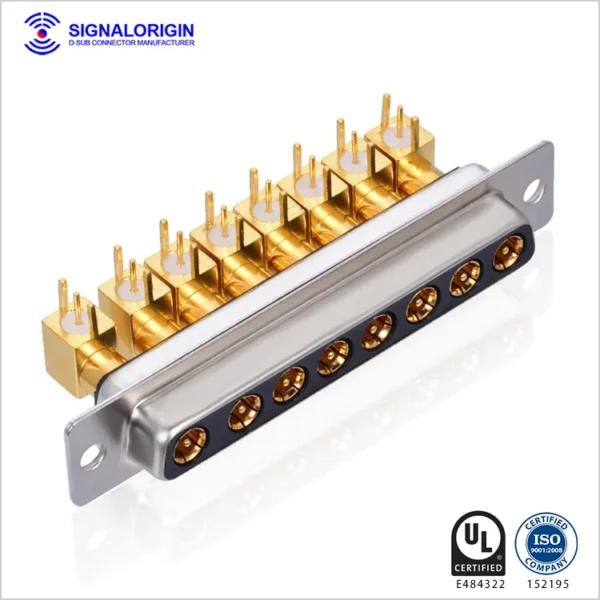

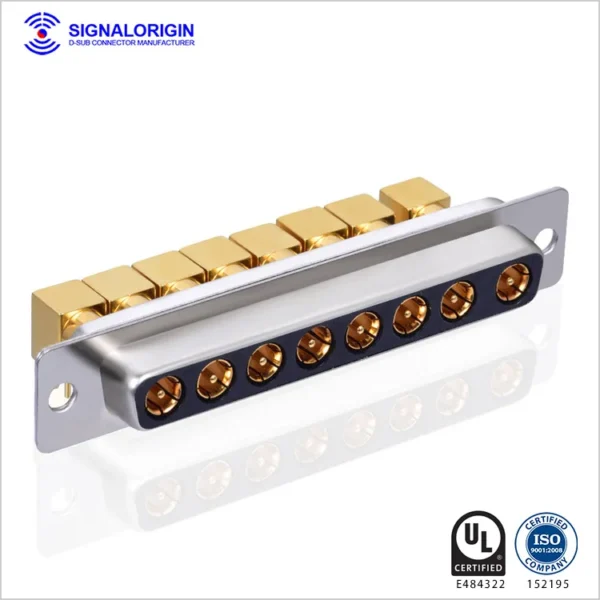

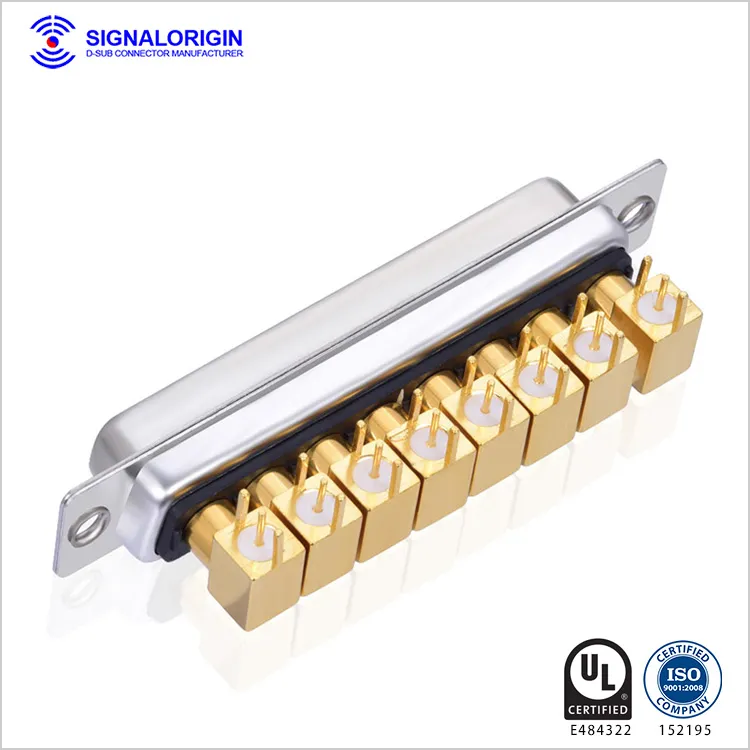

Right Angle Female 8W8 Coaxial D-Sub Connector (Wholesale) Offers A Full 8-position Coaxial Layout, Making It Ideal For High-frequency, High-current Signal Transmission. Each Contact Is Precision-machined From Phosphor Bronze And Gold Plated For Enhanced Conductivity, Durability, And Low Contact Resistance. The 50Ω Or 75Ω Coaxial Impedance Ensures Reliable RF Performance, While The Design Significantly Reduces EMI/RFI Leakage In Sensitive Electronic Systems.
Perfect For Broadcast Systems, RF Communications, Military Electronics, Test Equipment, And Industrial Control, This Connector Is Available For Bulk Wholesale Supply And Supports Fast Delivery With Customizable Specifications To Suit Diverse Application Needs.
| Material | Insulator material | PBT thermoplastic, 30% Glass filled, UL 94V-O rated |
| Insulator color | Black/Blue (can be customized) | |
| Contacts material | Copper alloy | |
| Contact Plating | Gold Plated, 1U”-30U” | |
| Contact insulator material | TEFLON | |
| Shell Material | Steel or copper alloy material, Tin/Ni or Au finished | |
| Electrical | High frequency contact current rating | 50 or 75 ohm |
| The radio frequency | 0~3GHz | |
| The working voltage | 300V | |
| Coaxial contact impedance | 50Ω+/-5Ω；75Ω+/-5Ω | |
| High frequency contact resistance | 10 milliohms max | |
| Mechanical | Dielectric Withstanding Voltage | 1000 v AC for 1 minute |
| Insertion force | ￠1.0 :0.6～2 N /Pin
￠3.6:2～7 N /Pin |
|
| Extraction force | ￠1.0:0.2 N /Pin MIN
￠3.6:0.5 N /Pin MIN |
|
| Durability | 500 cycles | |
| Operating temperature | -55°C to +125°C |
