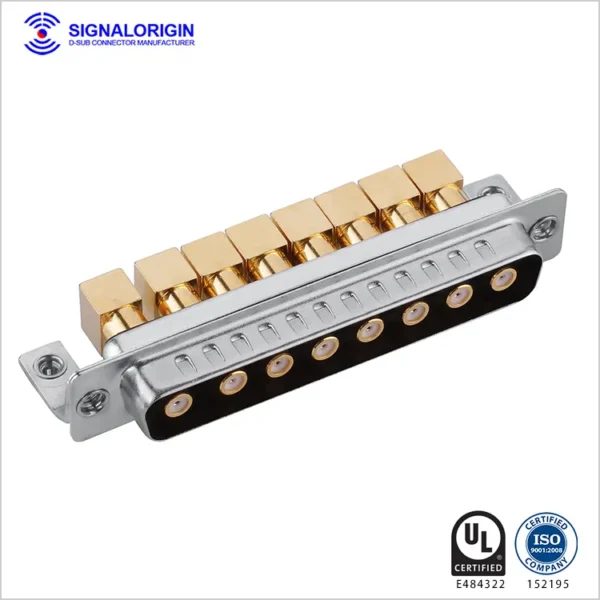

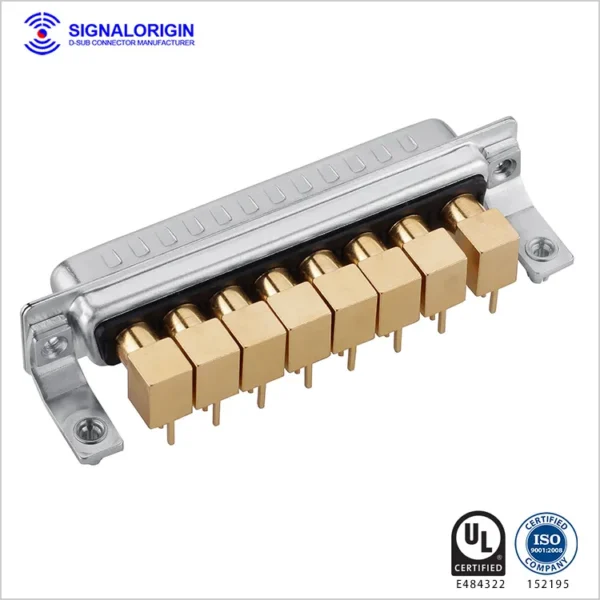

SIGNALORIGIN 8W8 Male Right Angle Coaxial D-Sub Connector Is Engineered For High-density, High-reliability Applications, Featuring Precision-machined Gold-over-nickel Contacts Housed In A Nickel Or Tin-plated Steel Shell With Flame-retardant Glass-filled PBT Insulators. Designed For RF And High-current Applications, Coaxial Contacts Are Available In 50Ω Or 75Ω Impedance, Ideal For High-frequency Transmission.
Ideal For Use In Telecom, Defense, Aerospace, Industrial Control, And Test Equipment, SIGNALORIGIN’s D-sub Portfolio Offers Superior Durability, Flexibility, And Sealability. We Provide UL-certified And ISO 9001-compliant Connectors With Fast Delivery (3–7 Days), Free Samples (3–5 Sets), And Full Customization To Meet Your Unique Needs.
| Material | Insulator material | PBT thermoplastic, 30% Glass filled, UL 94V-O rated |
| Insulator color | Black/Blue (can be customized) | |
| Contacts material | Copper alloy material | |
| Contact plating | Gold flash over nickel, 1U”-30U” | |
| Shell material | Steel or copper alloy material, Tin/Ni or Au finished | |
| Electrical | High frequency contact current rating | 50 or 75 ohm |
| The radio frequency | 0~3GHz | |
| Connector with signal contact current rating | 5 A | |
| The working voltage | 300V | |
| High frequency contact resistance | 10 milliohms max | |
| Mechanical | Dielectric withstanding voltage | 1000 v AC for 1 minute |
| Insertion force | ￠1.0 :0.6～2 N /Pin
￠3.6:2～7 N /Pin |
|
| Extraction force | ￠1.0:0.2 N /Pin MIN
￠3.6:0.5 N /Pin MIN |
|
| Durability | 500 cycles | |
| Operating temperature | -55°C to +125°C |
