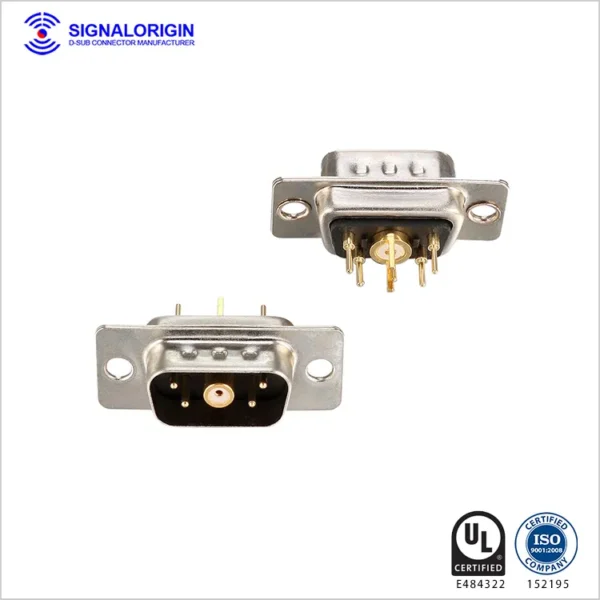

The 5W1 Male Coaxial Power D-Sub Connector Is A Mixed-contact D-shell Connector That Integrates 4 Signal Contacts And 1 Coaxial Contact In A Compact 5-position Layout. Designed For High-performance Electronic Systems, It Supports 50Ω Or 75Ω Impedance For Coaxial Transmission, Making It Ideal For High-frequency And High-reliability Applications.
Widely Used In Telecom, Military, Industrial Automation, And Test Equipment, This Hybrid Connector Offers Excellent Signal Integrity And Rugged Durability. Pair It With Our 5W1 Female D-Sub Connector For A Complete, Reliable Connection Solution.
| Material | Insulator material | PBT thermoplastic, 30% Glass filled, UL 94V-O rated |
| Insulator color | Black/Blue (can be customized) | |
| Contacts material | Copper alloy | |
| Contact Plating | Gold Plated, 1U”-30U” | |
| Contact insulator material | TEFLON | |
| Shell Material | Steel or copper alloy material, Tin/Ni or Au finished | |
| Electrical | Working Voltage | 300V AC |
| Signal Contacts Current Rating | 5A | |
| Contact resistance | 30mΩ Max | |
| Coaxial contact impedance | 50Ω+/-5Ω；75Ω+/-5Ω | |
| Insulation resistance | 2000MΩ Min.at 500v DC | |
| Mechanical | Dielectric Withstanding Voltage | 750V AC rms at 1 minute |
| Insertion force | ￠1.0 :0.6～2 N /Pin
￠3.6:2～7 N /Pin |
|
| Extraction force | ￠1.0:0.2 N /Pin MIN
￠3.6:0.5 N /Pin MIN |
|
| Durability | 500 cycles | |
| Operating temperature | -55°C to +125°C |
