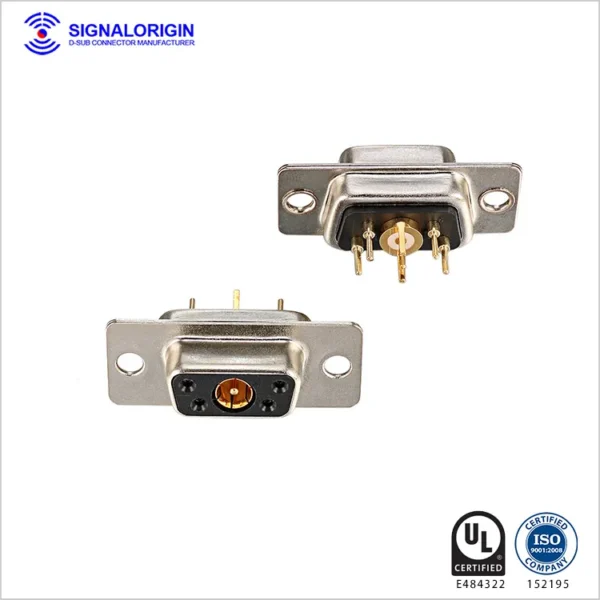

The 5W1 Female Coaxial D-Sub Connector Is A High-reliability Hybrid Connector That Combines Signal, Power, Coaxial, And High-voltage Contacts In A Single Compact Unit. Ideal For Demanding Electronic Systems, It Supports Board-to-board, Cable-to-cable, And Panel-to-board Configurations, With Options For Blind Mating And Sequential Mating To Ensure Safe And Precise Connections.
Perfect For Aerospace, Telecommunications, Medical Equipment, And Industrial Control Systems, This D-sub Coaxial Connector Offers Superior Performance And Long-term Durability. 🔌 For A Complete Solution, Check Out Our Matching 5W1 Male D-Sub Connector For Seamless Mating Compatibility.
| Material | Insulator material | PBT thermoplastic, 30% Glass filled, UL 94V-O rated |
| Insulator color | Black/Blue (can be customized) | |
| Contacts material | Copper alloy | |
| Contact Plating | Gold Plated, 1U”-30U” | |
| Contact insulator material | TEFLON | |
| Shell Material | Steel or copper alloy material, Tin/Ni or Au finished | |
| Electrical | Working Voltage | 300V AC |
| Signal Contacts Current Rating | 5A | |
| Contact resistance | 30mΩ Max | |
| Coaxial contact impedance | 50Ω+/-5Ω；75Ω+/-5Ω | |
| Insulation resistance | 2000MΩ Min.at 500v DC | |
| Mechanical | Dielectric Withstanding Voltage | 750V AC rms at 1 minute |
| Insertion force | ￠1.0 :0.6～2 N /Pin
￠3.6:2～7 N /Pin |
|
| Extraction force | ￠1.0:0.2 N /Pin MIN
￠3.6:0.5 N /Pin MIN |
|
| Durability | 500 cycles | |
| Operating temperature | -55°C to +125°C |
