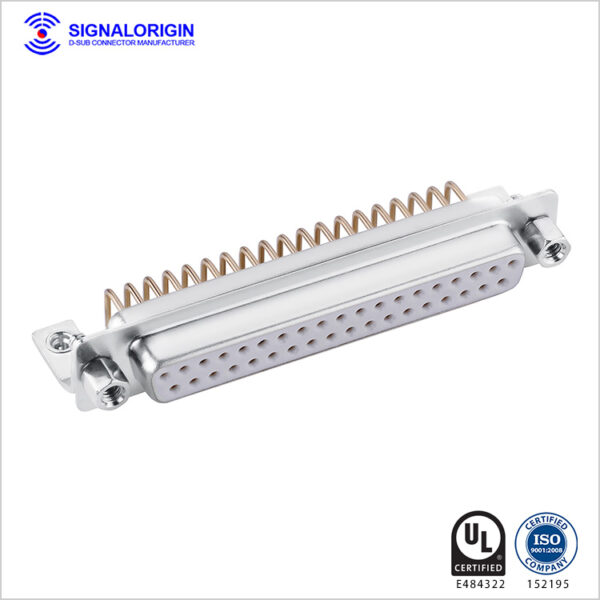

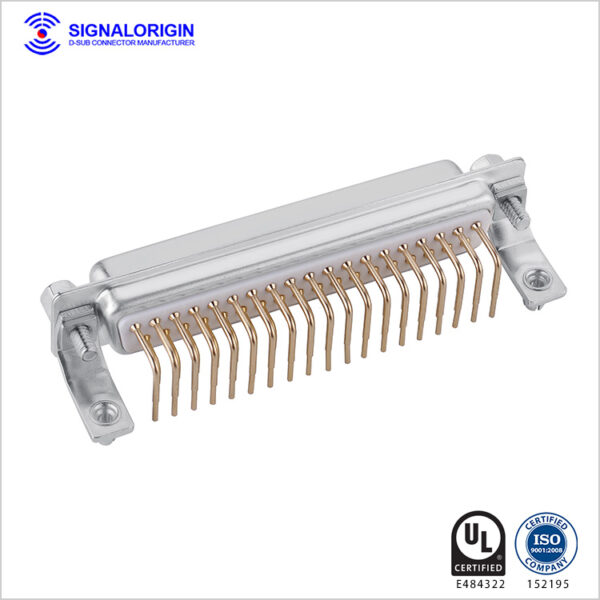

37-Pin Female Right-Angle D-Sub Connector – Reliable Bending Type for PCB Applications High-Performance D-Sub Connector Manufacturer from China SIGNALORIGIN is a leading 37-pin female right-angle D-sub connector manufacturer based in China. Our comprehensive D-sub product range includes male and female connectors with solder bucket, straight, and right-angle pin terminations, available in 9, 15, 25, and 37 contact versions. These connectors conform to industry standards and are widely used in military, aerospace, industrial automation, medical equipment, telecom, and computer systems. Built with precision-engineered materials, our D-sub connectors are ideal for space-constrained PCB layouts and offer stable signal performance and long-term durability. SIGNALORIGIN also provides a range of custom accessories to help customers achieve cost-effective and flexible solutions for complex electronic applications.
37-Pin Female Right-Angle D-Sub Connector – Reliable Bending Type for PCB Applications High-Performance D-Sub Connector Manufacturer from China SIGNALORIGIN is a leading 37-pin female right-angle D-sub connector manufacturer based in China. Our comprehensive D-sub product range includes male and female connectors with solder bucket, straight, and right-angle pin terminations, available in 9, 15, 25, and 37 contact versions. These connectors conform to industry standards and are widely used in military, aerospace, industrial automation, medical equipment, telecom, and computer systems. Built with precision-engineered materials, our D-sub connectors are ideal for space-constrained PCB layouts and offer stable signal performance and long-term durability. SIGNALORIGIN also provides a range of custom accessories to help customers achieve cost-effective and flexible solutions for complex electronic applications.

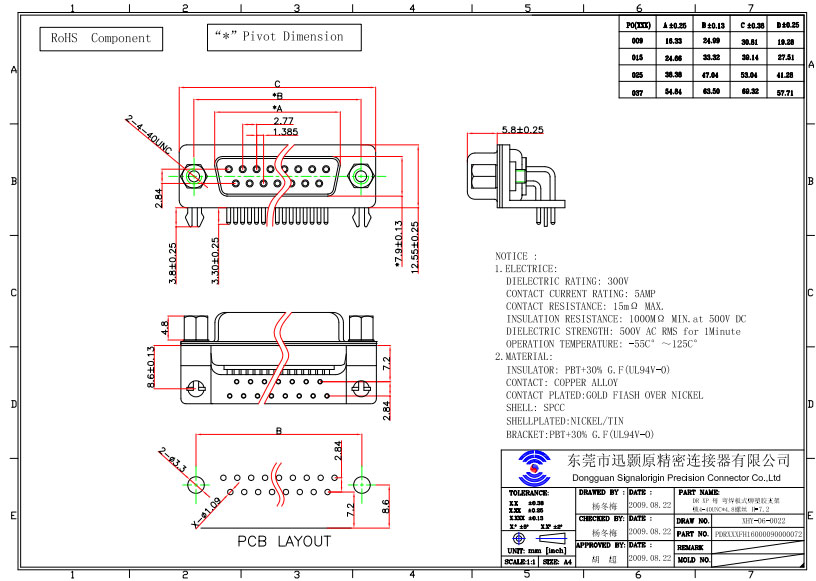

| Material | Insulator material | PBT+30% G.F (UL94V-O) |
| Insulator color | Black/Blue (can be customized) | |
| Contacts material | Phosphor copper | |
| Contact plating | Gold finish over nickel | |
| Shell material | Steel/SPCC-SD, nickel or tin plated | |
| Electrical | Dielectric rating | 300V AC |
| Current rating | 5 AMP | |
| Contacts OD | ∮1.0 | |
| Contact resistance | 15mΩ Max | |
| Insulation resistance | 1000MΩ Min at 500V DC | |
| Mechanical | Dielectric withstanding voltage | 750V AC rms at 1 minute |
| Insertion force | ∮1.0: 0.2～2N /Pin | |
| Extraction force | ∮1.0: 0.3 N /Pin min | |
| Durability | 500 cycles | |
| Operating temperature | -55°C to +105°C |
