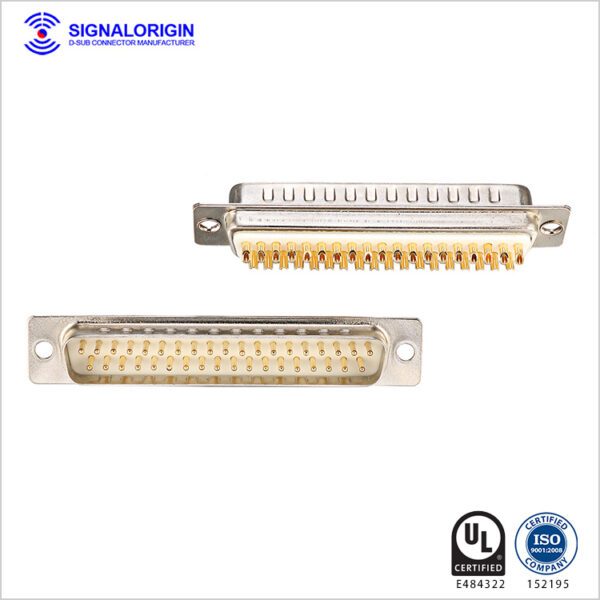

37-Pin Male D-Sub Connector – Solder Cup, High-Density PCB Mount
Standard-Compliant, Cost-Effective Solution for Cable Termination & PCB Integration
SIGNALORIGIN offers 37-pin male high-density D-sub connectors with solder cup terminations, designed for easy PCB integration and reliable cable assembly. These connectors comply with commercial industry standards, ensuring full compatibility with opposite-gender high-density D-sub contacts. The gold flash-plated contacts and UL94V-0 flame-retardant insulator provide both electrical reliability and safety compliance.
Perfect for high-volume production environments, this connector is available in both solder and crimp termination versions, making it an ideal choice for a wide range of industrial, telecom, computing, and automation applications where space, durability, and efficiency matter.
37-Pin Male D-Sub Connector – Solder Cup, High-Density PCB Mount
Standard-Compliant, Cost-Effective Solution for Cable Termination & PCB Integration
SIGNALORIGIN offers 37-pin male high-density D-sub connectors with solder cup terminations, designed for easy PCB integration and reliable cable assembly. These connectors comply with commercial industry standards, ensuring full compatibility with opposite-gender high-density D-sub contacts. The gold flash-plated contacts and UL94V-0 flame-retardant insulator provide both electrical reliability and safety compliance.
Perfect for high-volume production environments, this connector is available in both solder and crimp termination versions, making it an ideal choice for a wide range of industrial, telecom, computing, and automation applications where space, durability, and efficiency matter.
| Material | Insulator material | PBT+30% G.F (UL94V-O) |
| Insulator color | Black/Blue (can be customized) | |
| Contacts material | Copper Alloy | |
| Contact plating | Gold finish over nickel | |
| Shell material | Steel/SPCC-SD, nickel or tin plated | |
| Electrical | Dielectric rating | 300V AC |
| Current rating | 5 AMP | |
| Contacts OD | ∮1.0 | |
| Contact resistance | 15mΩ Max | |
| Insulation resistance | 1000MΩ Min at 500V DC | |
| Mechanical | Dielectric withstanding voltage | 500V AC rms at 1 minute |
| Insertion force | ∮1.0 : 0.6～2 N /Pin | |
| Insertion force | ∮1.0: 0.3 N /Pin min | |
| Durability | 500 cycles | |
| Operating temperature | -55°C to +105°C |
