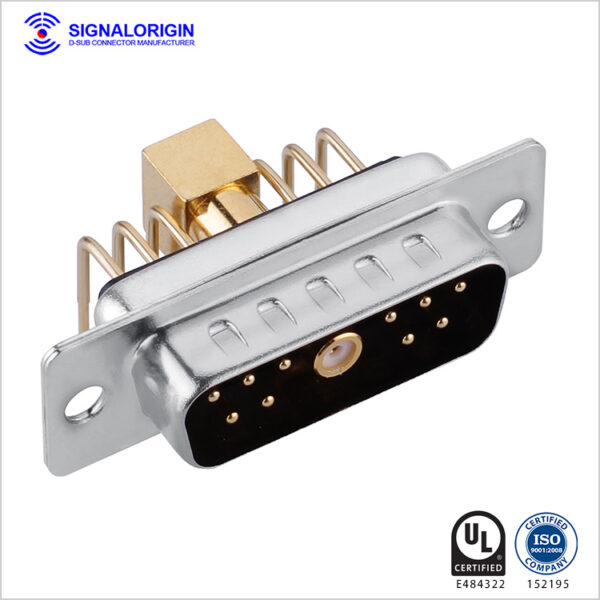

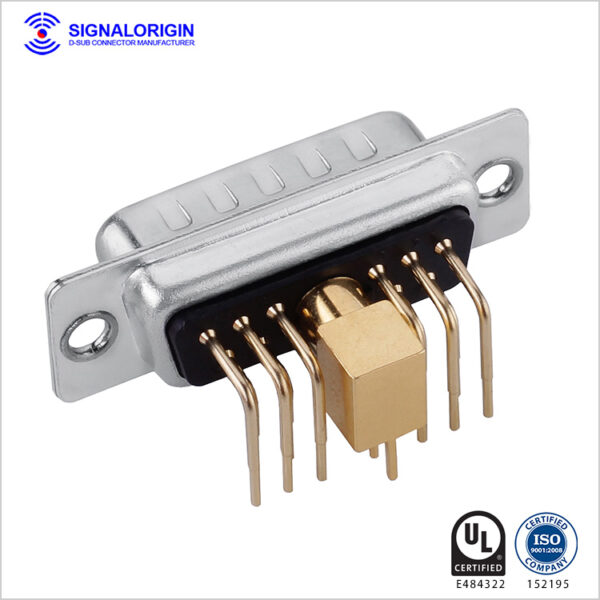

SIGNALORIGIN is a trusted supplier of 11W1 right angle coaxial male D-sub connectors, engineered for high-reliability performance in high-intensity and mission-critical applications. Featuring gold-over-nickel plated machined contacts, flame-retardant glass-filled PBT insulators, and housed in nickel or tin-plated steel shells, this connector delivers exceptional durability, electrical performance, and heat resistance. Ideal for applications in military electronics, broadcasting systems, medical equipment, and industrial automation.
Our full range of high-density D-sub connectors supports frequencies up to 3GHz and customizable current ratings from 10A to 40A, offering the flexibility to meet complex design demands. Backed by UL certification and ISO 9001 quality standards, we provide 3–5 free samples, rapid 3–7 day delivery, and friendly service. Custom designs and wide compatibility make SIGNALORIGIN a one-stop solution for your D-sub connection needs.
SIGNALORIGIN is a trusted supplier of 11W1 right angle coaxial male D-sub connectors, engineered for high-reliability performance in high-intensity and mission-critical applications. Featuring gold-over-nickel plated machined contacts, flame-retardant glass-filled PBT insulators, and housed in nickel or tin-plated steel shells, this connector delivers exceptional durability, electrical performance, and heat resistance. Ideal for applications in military electronics, broadcasting systems, medical equipment, and industrial automation.
Our full range of high-density D-sub connectors supports frequencies up to 3GHz and customizable current ratings from 10A to 40A, offering the flexibility to meet complex design demands. Backed by UL certification and ISO 9001 quality standards, we provide 3–5 free samples, rapid 3–7 day delivery, and friendly service. Custom designs and wide compatibility make SIGNALORIGIN a one-stop solution for your D-sub connection needs.

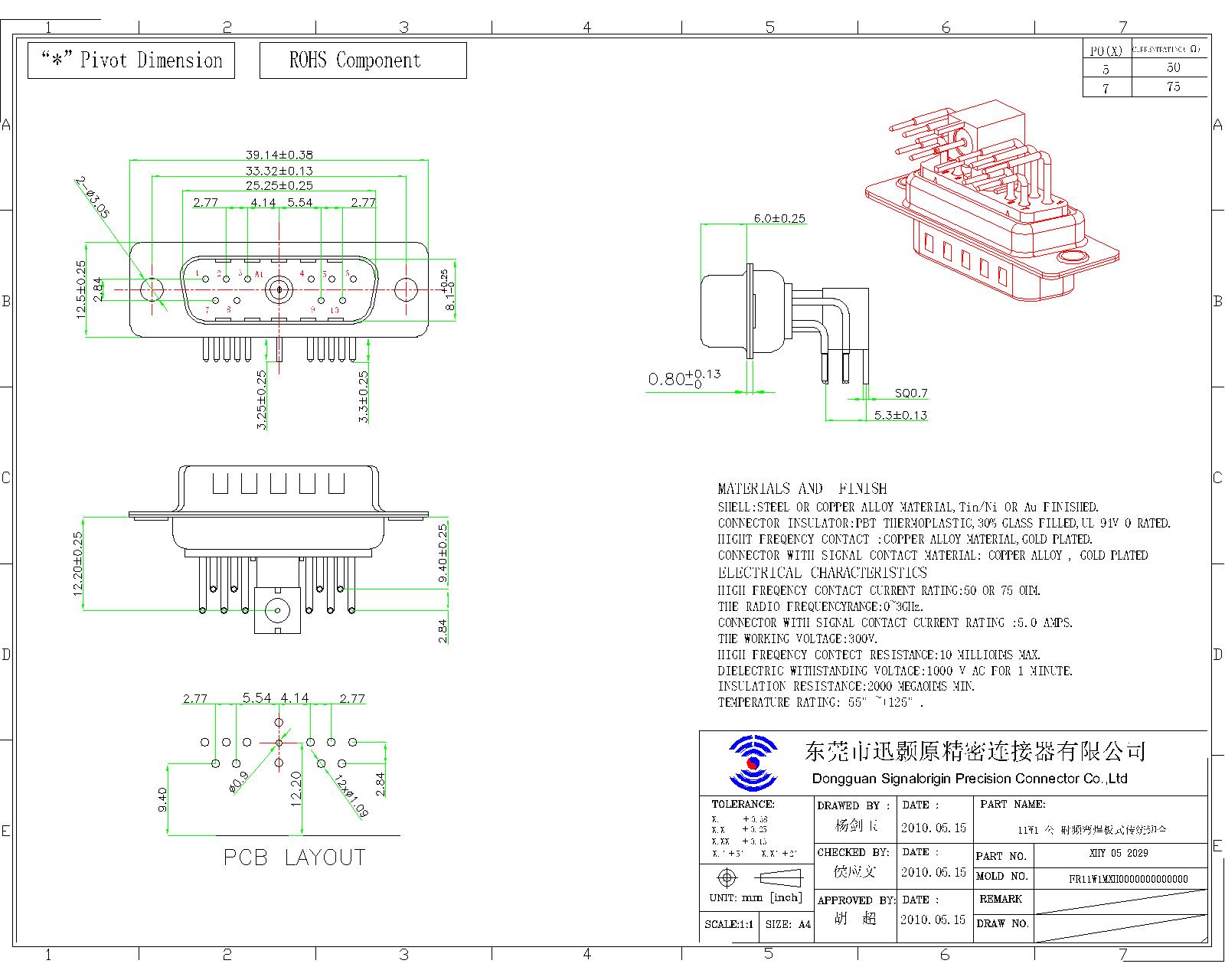

| Material | Insulator material | PBT thermoplastic, 30% Glass filled, UL 94V-O rated |
| Insulator color | Black/Blue (can be customized) | |
| Contacts material | Copper alloy material | |
| Contact plating | Gold flash over nickel, 1U”-30U” | |
| Shell material | Steel or copper alloy material, Tin/Ni or Au finished | |
| Electrical | High frequency contact current rating | 50 or 75 ohm |
| The radio frequency | 0~3GHz | |
| Connector with signal contact current rating | 5 A | |
| The working voltage | 300V | |
| High frequency contact resistance | 10 milliohms max | |
| Mechanical | Dielectric withstanding voltage | 1000 v AC for 1 minute |
| Insertion force | ￠1.0 :0.6～2 N /Pin
￠3.6:2～7 N /Pin |
|
| Extraction force | ￠1.0:0.2 N /Pin MIN
￠3.6:0.5 N /Pin MIN |
|
| Durability | 500 cycles | |
| Operating temperature | -55°C to +125°C |
