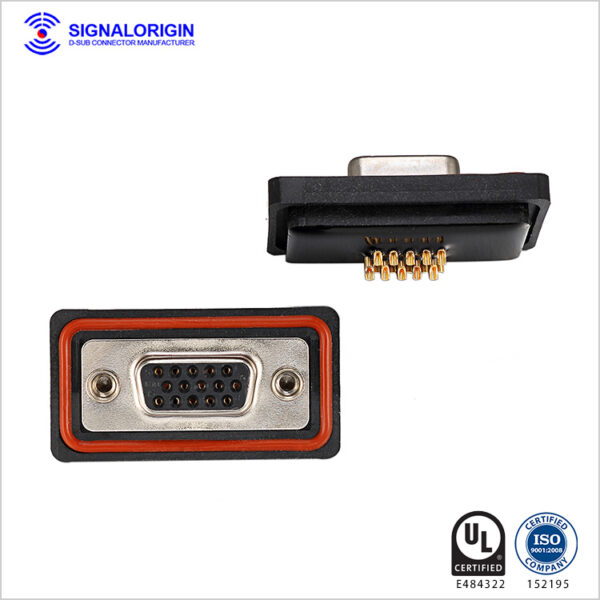

The Solder Cup Waterproof Female DB15 Connector from SIGNALORIGIN is designed to deliver IP67-rated protection in demanding environments, while maintaining full compatibility with standard (non-sealed) DB15 connectors. This allows for a seamless upgrade to waterproof performance without redesigning PCBs or enclosures — saving both time and engineering cost. Built with a 15-pin solder cup layout, this D-sub connector supports reliable signal transmission in medical devices, industrial controls, transportation electronics, outdoor displays, and communication equipment. The robust sealed design ensures long-term durability against moisture, dust, oil, and vibration.
The Solder Cup Waterproof Female DB15 Connector from SIGNALORIGIN is designed to deliver IP67-rated protection in demanding environments, while maintaining full compatibility with standard (non-sealed) DB15 connectors. This allows for a seamless upgrade to waterproof performance without redesigning PCBs or enclosures — saving both time and engineering cost. Built with a 15-pin solder cup layout, this D-sub connector supports reliable signal transmission in medical devices, industrial controls, transportation electronics, outdoor displays, and communication equipment. The robust sealed design ensures long-term durability against moisture, dust, oil, and vibration.
| Material | Insulator material | PBT thermoplastic, UL94-V0 fireproof rated |
| Insulator color | Black/Blue (can be customized) | |
| Contacts material | Phosphor Copper | |
| Contact plating | Gold Plated, 1U”-30U” | |
| Shell material | Steel/SPCC-SD, nickel or tin plated | |
| Electrical | Working voltage | 300V AC |
| High power contacts current rating | 10A-40A(customized) | |
| Signal contacts current rating | 3A | |
| Contact resistance | 15mΩ Max | |
| Insulation resistance | 2000MΩ Min.at 500v DC | |
| Mechanical | Dielectric withstanding voltage | 1000V AC rms at 1 minute |
| Insertion force | ￠1.0 :0.6～2 N /Pin
￠3.6:2～7 N /Pin |
|
| Extraction force | ￠1.0:0.2 N /Pin MIN
￠3.6:0.5 N /Pin MIN |
|
| Durability | 500 cycles | |
| Operating temperature | -55°C to +125°C |
