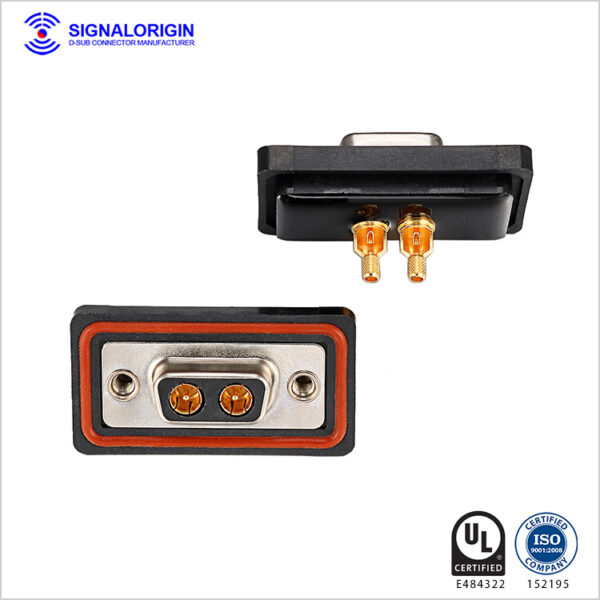

We are a trusted supplier of the 2W2 D-Sub Coaxial Cable Female Connector, specially designed for high-frequency and power signal transmission. Featuring a solid body IP67 waterproof design, this connector offers superior protection against water, dust, and other contaminants, making it ideal for outdoor and industrial environments where reliability is critical. This connector supports multiple mounting options, including straight and right-angle contact configurations, providing design flexibility for various applications such as telecommunications, military systems, testing equipment, and aerospace. Built for harsh conditions, the 2W2 female coaxial D-Sub connector ensures secure, stable performance in challenging environments. 分类: Agriculture & Construction Equipment, Communication, Harsh Environment, IP67 Coaxial RF D-sub connectors, Machine Manufacturing, Medical, Military, Robotics & Automation, Transportation
We are a trusted supplier of the 2W2 D-Sub Coaxial Cable Female Connector, specially designed for high-frequency and power signal transmission. Featuring a solid body IP67 waterproof design, this connector offers superior protection against water, dust, and other contaminants, making it ideal for outdoor and industrial environments where reliability is critical. This connector supports multiple mounting options, including straight and right-angle contact configurations, providing design flexibility for various applications such as telecommunications, military systems, testing equipment, and aerospace. Built for harsh conditions, the 2W2 female coaxial D-Sub connector ensures secure, stable performance in challenging environments. 分类: Agriculture & Construction Equipment, Communication, Harsh Environment, IP67 Coaxial RF D-sub connectors, Machine Manufacturing, Medical, Military, Robotics & Automation, Transportation
Material | Insulator material | PBT thermoplastic, UL94-V0 fireproof rated |
Insulator color | Black/Blue (can be customized) | |
Contacts material | Phosphor Copper | |
Contact Plating | Gold Plated, 1U”-30U” | |
Contact insulator material | TEFLON | |
Shell Material | Steel/SPCC-SD, Nickel or tin plated | |
Electrical | Working Voltage | 300V AC |
Signal Contacts Current Rating | 3A | |
Contact resistance | 15mΩ Max | |
Coaxial contact impedance | 50Ω+/-5Ω;75Ω+/-5Ω | |
Insulation resistance | 2000MΩ Min.at 500v DC | |
Mechanical | Dielectric Withstanding Voltage | 1000V AC rms at 1 minute |
Insertion force | ¢1.0 :0.6~2 N /Pin
¢3.6:2~7 N /Pin |
|
Extraction force | ¢1.0:0.2 N /Pin MIN
¢3.6:0.5 N /Pin MIN |
|
Durability | 500 cycles | |
Operating temperature | -55°C to +125°C |
