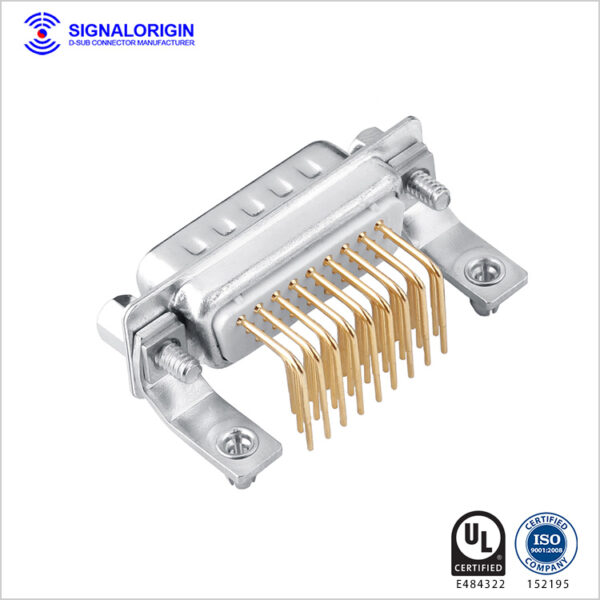

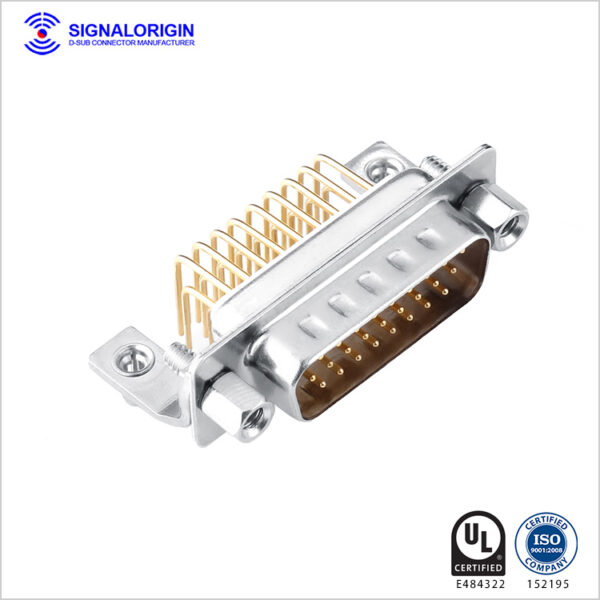

SIGNALORIGIN is a trusted manufacturer of Right Angle 26 Pin D-Sub Connectors, offering standard density designs that deliver high reliability and 3A current rating per contact. Available in six shell sizes (from 9 to 50 contacts), these connectors support board-to-board, cable-to-cable, or panel-to-board configurations, making them suitable for a wide range of system integration needs.
All connectors are available in RoHS and non-RoHS compliant versions, and are ideal for applications in industrial control, telecommunications, embedded systems, consumer electronics, and instrumentation. As part of our broad D-sub portfolio, SIGNALORIGIN also offers custom accessories to provide flexible, economical solutions for complex interconnect challenges.
SIGNALORIGIN is a trusted manufacturer of Right Angle 26 Pin D-Sub Connectors, offering standard density designs that deliver high reliability and 3A current rating per contact. Available in six shell sizes (from 9 to 50 contacts), these connectors support board-to-board, cable-to-cable, or panel-to-board configurations, making them suitable for a wide range of system integration needs.
All connectors are available in RoHS and non-RoHS compliant versions, and are ideal for applications in industrial control, telecommunications, embedded systems, consumer electronics, and instrumentation. As part of our broad D-sub portfolio, SIGNALORIGIN also offers custom accessories to provide flexible, economical solutions for complex interconnect challenges.
| Material | Insulator material | PBT+30% G.F (UL94V-O) |
| Insulator color | Black/Blue (can be customized) | |
| Contacts material | Copper alloy | |
| Contact plating | Gold finish over nickel | |
| Shell material | Steel/SPCC-SD, nickel or tin plated | |
| Electrical | Dielectric rating | 300V AC |
| Current rating | 3 AMP | |
| Contacts OD | ∮0.76 | |
| Contact resistance | 15mΩ Max | |
| Insulation resistance | 1000MΩ Min at 500V DC | |
| Mechanical | Dielectric strength | 750V AC rms at 1 minute |
| Insertion force | ∮0.76: 0.3～2N /Pin | |
| Extraction force | ∮0.76: 02 N /Pin min | |
| Durability | 500 cycles | |
| Operating temperature | -55°C to +105°C |
