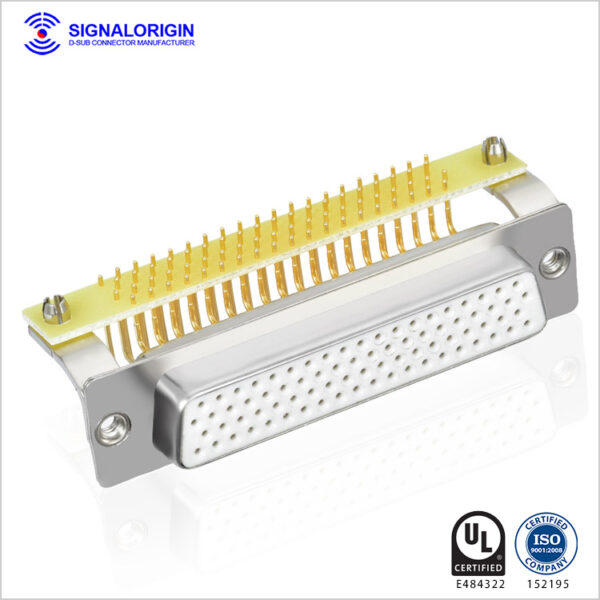

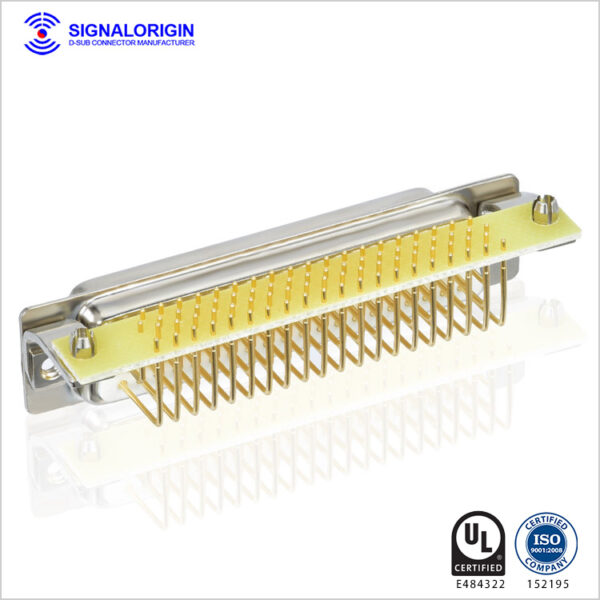

The 78-pin right-angle PCB D-sub socket connector is a compact, 90-degree board-mount solution designed to optimize space and reduce cable strain in high-density systems. Its right-angle configuration makes it ideal for applications where vertical clearance is limited, providing a space-efficient interface between cable and PCB.
Manufactured with high-grade metals and flame-retardant synthetic materials, this connector offers exceptional durability and signal reliability under physical stress and in mission-critical, data-intensive environments. It’s widely used in telecommunications, embedded systems, industrial automation, aerospace, and military equipment.
The 78-pin right-angle PCB D-sub socket connector is a compact, 90-degree board-mount solution designed to optimize space and reduce cable strain in high-density systems. Its right-angle configuration makes it ideal for applications where vertical clearance is limited, providing a space-efficient interface between cable and PCB.
Manufactured with high-grade metals and flame-retardant synthetic materials, this connector offers exceptional durability and signal reliability under physical stress and in mission-critical, data-intensive environments. It’s widely used in telecommunications, embedded systems, industrial automation, aerospace, and military equipment.
| Material | Insulator material | PBT+30% G.F (UL94V-O) |
| Insulator color | Black/Blue (can be customized) | |
| Contacts material | Copper alloy | |
| Contact plating | Gold finish over nickel | |
| Shell material | Steel/SPCC-SD, nickel or tin plated | |
| Electrical | Dielectric rating | 300V AC |
| Current rating | 3 AMP | |
| Contacts OD | ∮0.76 | |
| Contact resistance | 15mΩ Max | |
| Insulation resistance | 1000MΩ Min at 500V DC | |
| Mechanical | Dielectric strength | 750V AC rms at 1 minute |
| Insertion force | ∮0.76: 0.3～2N /Pin | |
| Extraction force | ∮0.76: 02 N /Pin min | |
| Durability | 500 cycles | |
| Operating temperature | -55°C to +105°C |
