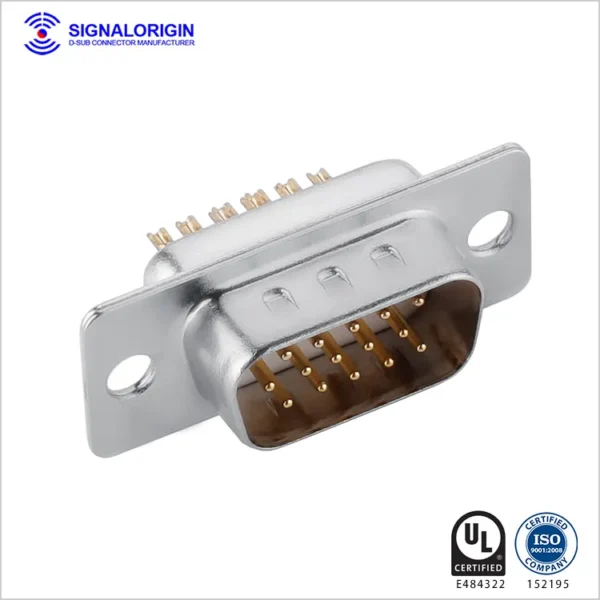

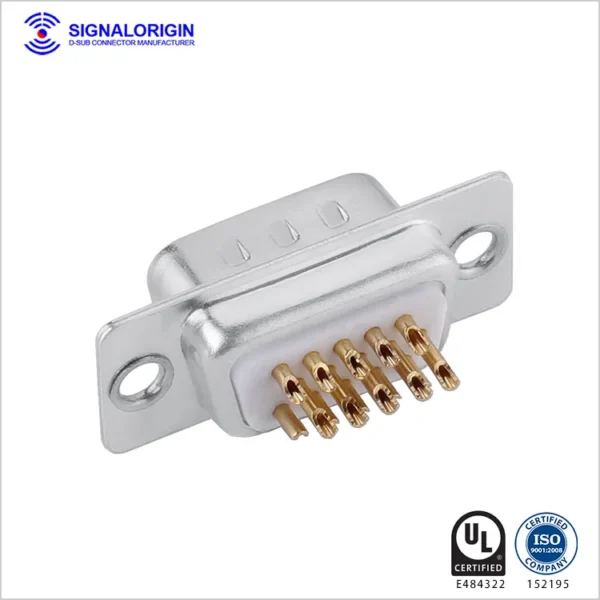

Signalorigin Is A Trusted Supplier Of High Density Db15 Male Solder Cup Connectors, Offering Solutions Built For Mission-Critical And High-Performance Applications. These High-Density D-Sub Connectors Are Available In 7 Standard Layouts (9, 15, 25, 37, 50, 62, 78 Positions) And Feature Non-Removable, Gold-Over-Nickel Plated Machined Contacts For Excellent Electrical Conductivity And Reliability.
The Connectors Are Constructed With Flame-Retardant, Glass-Filled Pbt Insulators, Housed In Tin Or Nickel-Plated Steel Shells With Grounding Indents For Better Emi Protection And Mechanical Retention. Designed To Provide Maximum Contact Density Within A Standard D-Sub Footprint, They Are Ideal For Industrial Control, Telecom Systems, Data Acquisition, Aerospace, And Military-Grade Electronics.
Our D-Sub Connector Portfolio Includes Customized Accessories And Economical Solutions Tailored To Meet The Complex Demands Of Your Application, Ensuring Secure And Long-Lasting Performance.
Signalorigin Is A Trusted Supplier Of High Density Db15 Male Solder Cup Connectors, Offering Solutions Built For Mission-Critical And High-Performance Applications. These High-Density D-Sub Connectors Are Available In 7 Standard Layouts (9, 15, 25, 37, 50, 62, 78 Positions) And Feature Non-Removable, Gold-Over-Nickel Plated Machined Contacts For Excellent Electrical Conductivity And Reliability.
The Connectors Are Constructed With Flame-Retardant, Glass-Filled Pbt Insulators, Housed In Tin Or Nickel-Plated Steel Shells With Grounding Indents For Better Emi Protection And Mechanical Retention. Designed To Provide Maximum Contact Density Within A Standard D-Sub Footprint, They Are Ideal For Industrial Control, Telecom Systems, Data Acquisition, Aerospace, And Military-Grade Electronics.
Our D-Sub Connector Portfolio Includes Customized Accessories And Economical Solutions Tailored To Meet The Complex Demands Of Your Application, Ensuring Secure And Long-Lasting Performance.
| Material | Insulator material | PBT+30% G. F(UL94V-O) |
| Insulator color | Black/Blue (can be customized) | |
| Contacts material | Copper alloy | |
| Contact plating | Gold flash over nickel, 1U”-30U” | |
| Shell material | SPCC | |
| Shell plated | Nicker/Tin | |
| Electrical | Working voltage | 300V |
| Contact current rating | 3A (customized) | |
| Contact resistance | 15mΩ Max | |
| Insulation resistance | 1000MΩ Min.at 500v DC | |
| Mechanical | Dielectric strength | 500V AC rms for 1 minute |
| Insertion force | ￠1.0 :0.6～2 N /Pin
￠3.6:2～7 N /Pin |
|
| Extraction force | ￠1.0:0.2 N /Pin MIN
￠3.6:0.5 N /Pin MIN |
|
| Durability | 500 cycles | |
| Operating temperature | -55°C to +125°C |
