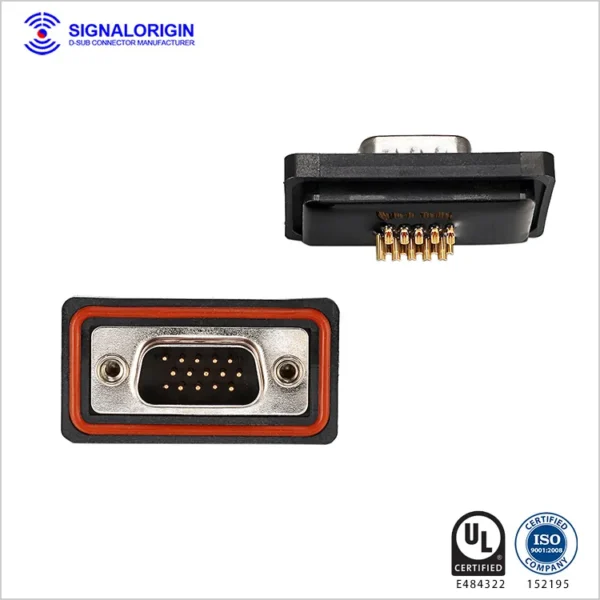

The High Density 15 Pin Male D-Sub Connector Is Built With Precision To Deliver Maximum Performance In High-Intensity, Mission-Critical Applications. Made With Premium Materials, It Ensures Stable Signal Transmission, Excellent Durability, And Full Compatibility With All Standard High-Density Female D-Sub Connectors On The Market.
For Harsher Environments, Our Waterproof Solder Cup 15 Pin D-Sub Connector Offers Ip67-Rated Protection Against Water, Oil, Dust, Chemicals, Vibration, And Emi/Rfi Interference. Perfect For Outdoor Equipment, Industrial Systems, Transportation Electronics, And Telecom Applications, This Connector Ensures Data Integrity Under Extreme Conditions Such As Temperature Fluctuations And High Humidity.
The High Density 15 Pin Male D-Sub Connector Is Built With Precision To Deliver Maximum Performance In High-Intensity, Mission-Critical Applications. Made With Premium Materials, It Ensures Stable Signal Transmission, Excellent Durability, And Full Compatibility With All Standard High-Density Female D-Sub Connectors On The Market.
For Harsher Environments, Our Waterproof Solder Cup 15 Pin D-Sub Connector Offers Ip67-Rated Protection Against Water, Oil, Dust, Chemicals, Vibration, And Emi/Rfi Interference. Perfect For Outdoor Equipment, Industrial Systems, Transportation Electronics, And Telecom Applications, This Connector Ensures Data Integrity Under Extreme Conditions Such As Temperature Fluctuations And High Humidity.
| Material | Insulator | PBT UL94-V0 fireproof rated |
| Insulator color | Black/Blue (can be customized) | |
| Contacts | Copper Alloy | |
| Contact plating | Gold finish | |
| Shell material | Steel, Tin finished | |
| Watertight frame | PBT UL94-0 Black color | |
| O ring | Silicone | |
| Electrical | Signal contact current rating | 3 AMP |
| Signal contact resistance | 15mΩ MAX | |
| Insulation resistance | 5GΩ MIN. | |
| Mechanical | Dielectric withstanding voltage | 1000V AC rms at 1 minute |
| Insertion force | ∮1.0 : 0.6～2 N /Pin | |
| Extraction force | ∮1.0: 0.3 N /Pin min | |
| Durability | 500 cycles | |
| Operating temperature | -55°C to +105°C |
