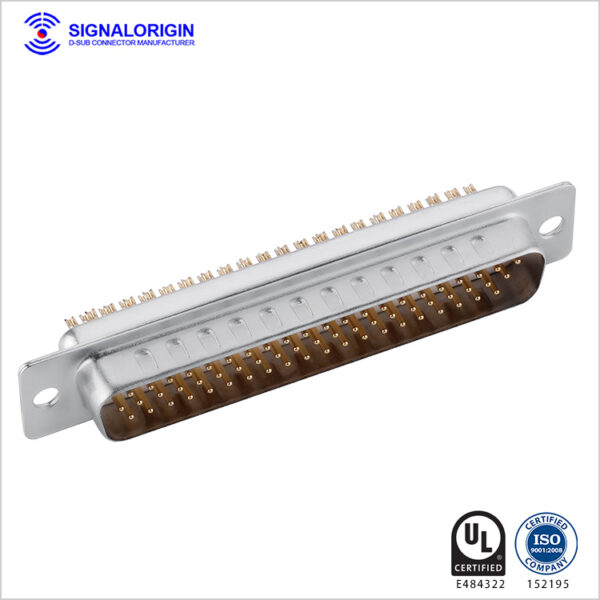

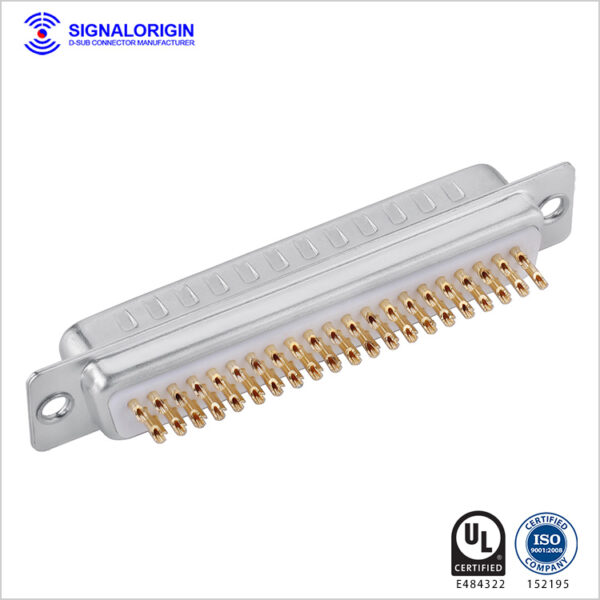

SIGNALORIGIN’s 62-pin D-sub plug (solder cup type) is a high-density connector engineered for compact designs and demanding applications. Available in seven industry-standard positions (9, 15, 25, 37, 50, 62, 78), this connector features non-removable, gold-over-nickel plated machined contacts that ensure stable signal transmission. The tin or nickel-plated steel shell with grounding indents offers enhanced EMI shielding and retention, making it ideal for mission-critical systems.
Constructed with flame-retardant, glass-filled PBT insulators, these D-subminiature connectors provide superior durability and long-term performance in industrial automation, telecommunications, medical electronics, military, and aerospace applications. SIGNALORIGIN also offers a wide range of accessories and custom solutions, making it a one-stop provider for cost-effective, high-reliability D-sub connectors.
SIGNALORIGIN’s 62-pin D-sub plug (solder cup type) is a high-density connector engineered for compact designs and demanding applications. Available in seven industry-standard positions (9, 15, 25, 37, 50, 62, 78), this connector features non-removable, gold-over-nickel plated machined contacts that ensure stable signal transmission. The tin or nickel-plated steel shell with grounding indents offers enhanced EMI shielding and retention, making it ideal for mission-critical systems.
Constructed with flame-retardant, glass-filled PBT insulators, these D-subminiature connectors provide superior durability and long-term performance in industrial automation, telecommunications, medical electronics, military, and aerospace applications. SIGNALORIGIN also offers a wide range of accessories and custom solutions, making it a one-stop provider for cost-effective, high-reliability D-sub connectors.
| Material | Insulator material | PBT+30% G. F(UL94V-O) |
| Insulator color | Black/Blue (can be customized) | |
| Contacts material | Copper alloy | |
| Contacts material | Gold flash over nickel, 1U”-30U” | |
| Shell material | SPCC | |
| Shell plated | Nicker/Tin | |
| Electrical | Working voltage | 300V |
| Contact current rating | 3A (customized) | |
| Contact resistance | 15mΩ Max | |
| Insulation resistance | 1000MΩ Min.at 500v DC | |
| Mechanical | Dielectric strength | 500V AC rms for 1 minute |
| Insertion force | ￠1.0 :0.6～2 N /Pin
￠3.6:2～7 N /Pin |
|
| Extraction force | ￠1.0:0.2 N /Pin MIN
￠3.6:0.5 N /Pin MIN |
|
| Durability | 500 cycles | |
| Operating temperature | -55°C to +125°C |
