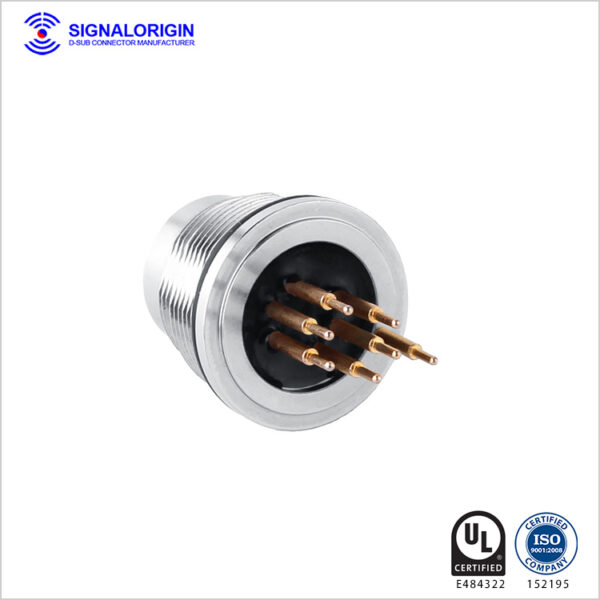

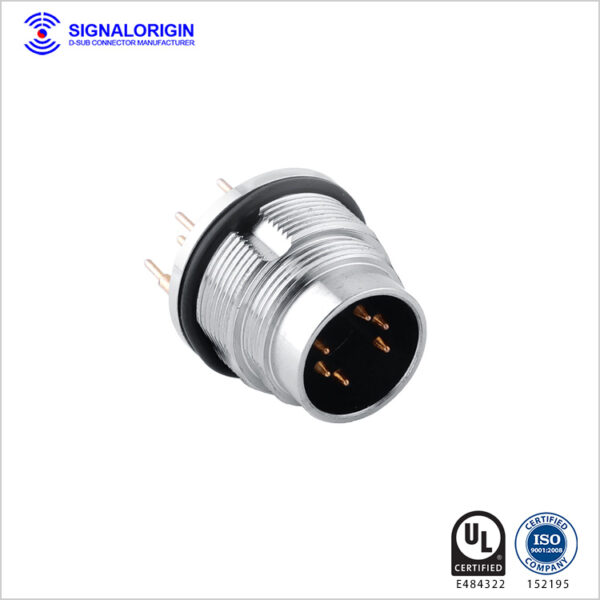

SIGNALORIGIN is a trusted manufacturer of 6 pin male power circular connectors, known for their robust performance, easy installation, and secure environmental sealing. These circular connectors support a wide range of voltages and currents, making them ideal for industrial automation, robotics, LED lighting systems, and outdoor equipment.
With options ranging from compact to large sizes, straight or angled designs, and molded or field-assembly types, SIGNALORIGIN offers flexible solutions tailored to your power, signal, or data transmission needs. Our 6 pin connectors pair perfectly with female counterparts to ensure a reliable and efficient connection in harsh environments.
SIGNALORIGIN is a trusted manufacturer of 6 pin male power circular connectors, known for their robust performance, easy installation, and secure environmental sealing. These circular connectors support a wide range of voltages and currents, making them ideal for industrial automation, robotics, LED lighting systems, and outdoor equipment.
With options ranging from compact to large sizes, straight or angled designs, and molded or field-assembly types, SIGNALORIGIN offers flexible solutions tailored to your power, signal, or data transmission needs. Our 6 pin connectors pair perfectly with female counterparts to ensure a reliable and efficient connection in harsh environments.
| Material | Insulator material | PBT 4130, UL94-V0 fireproof rated |
| Insulator color | Pantone 299U (can be customized) | |
| Contacts material | H62 | |
| Contact plating | Gold Plated, 1U” | |
| Shell material | Steel/SPCC-SD, nickel or tin plated | |
| Electrical | Working voltage | 120V AC |
| High power contacts current rating | 10A-40A(customized) | |
| Signal contacts current rating | 3A | |
| Contact resistance | 30mΩ Max | |
| Insulation resistance | 1000MΩ Min.at 500v DC | |
| Mechanical | Dielectric withstanding voltage | 750V AC rms at 1 minute |
| Insertion force | ￠1.0 :0.6～2 N /Pin
￠3.6:2～7 N /Pin |
|
| Extraction force | ￠1.0:0.2 N /Pin MIN
￠3.6:0.5 N /Pin MIN |
|
| Durability | 500 cycles | |
| Operating temperature | -40°C to +125°C |
