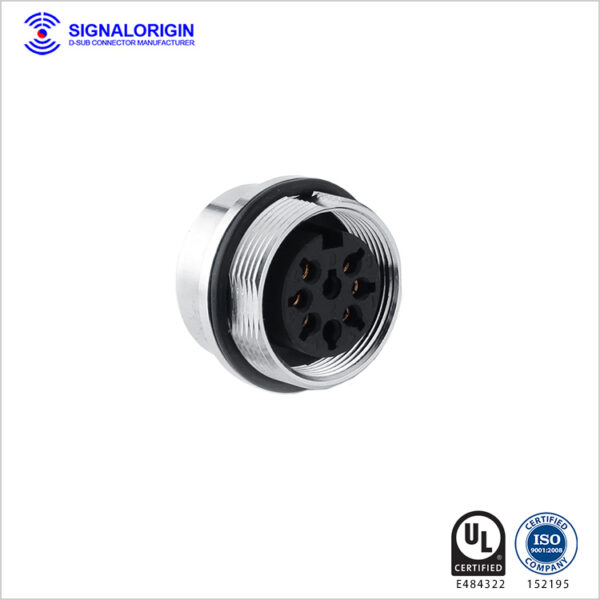

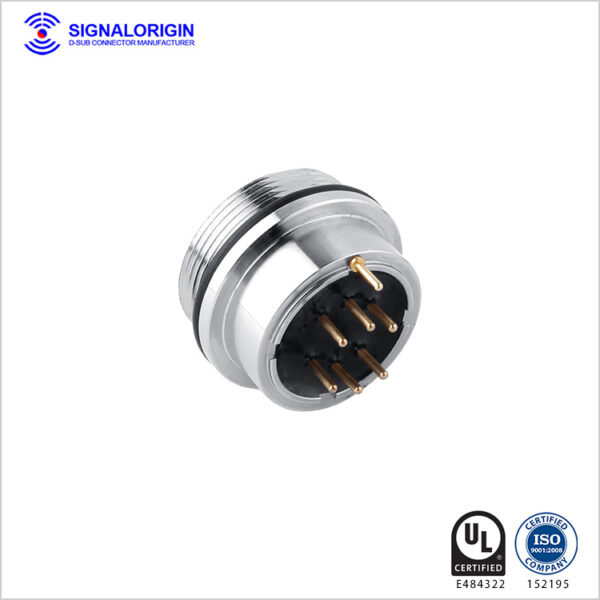

SIGNALORIGIN is a professional manufacturer of 6-pin female waterproof electrical circular connectors, offering a wide range of signal and power transmission solutions in sizes from M5 to M23. Available in 3 to 19 positions, our connectors support various connection methods including IDC displacement, screw, spring, solder, crimp, and solder-in—ensuring maximum flexibility for system integration.
Engineered for industrial automation, transportation, energy systems, and medical devices, SIGNALORIGIN’s circular connectors deliver secure, waterproof performance and are easy to install in harsh environments. Whether you need to connect power, signal, or data—or all in one compact connector—our solutions are fully customizable to meet your requirements.
You may also like our 6-pin male circular connector for paired applications.
SIGNALORIGIN is a professional manufacturer of 6-pin female waterproof electrical circular connectors, offering a wide range of signal and power transmission solutions in sizes from M5 to M23. Available in 3 to 19 positions, our connectors support various connection methods including IDC displacement, screw, spring, solder, crimp, and solder-in—ensuring maximum flexibility for system integration.
Engineered for industrial automation, transportation, energy systems, and medical devices, SIGNALORIGIN’s circular connectors deliver secure, waterproof performance and are easy to install in harsh environments. Whether you need to connect power, signal, or data—or all in one compact connector—our solutions are fully customizable to meet your requirements.
You may also like our 6-pin male circular connector for paired applications.
| Material | Insulator material | PBT 4130, UL94-V0 fireproof rated |
| Insulator color | Pantone 299U (can be customized) | |
| Contacts material | H62 | |
| Contact plating | Gold Plated, 1U” | |
| Shell material | Steel/SPCC-SD, nickel or tin plated | |
| Electrical | Working voltage | 120V AC |
| High power contacts current rating | 10A-40A(customized) | |
| Signal contacts current rating | 3A | |
| Contact resistance | 30mΩ Max | |
| Insulation resistance | 1000MΩ Min.at 500v DC | |
| Mechanical | Dielectric withstanding voltage | 750V AC rms at 1 minute |
| Insertion force | ￠1.0 :0.6～2 N /Pin
￠3.6:2～7 N /Pin |
|
| Extraction force | ￠1.0:0.2 N /Pin MIN
￠3.6:0.5 N /Pin MIN |
|
| Durability | 500 cycles | |
| Operating temperature | -40°C to +125°C |
