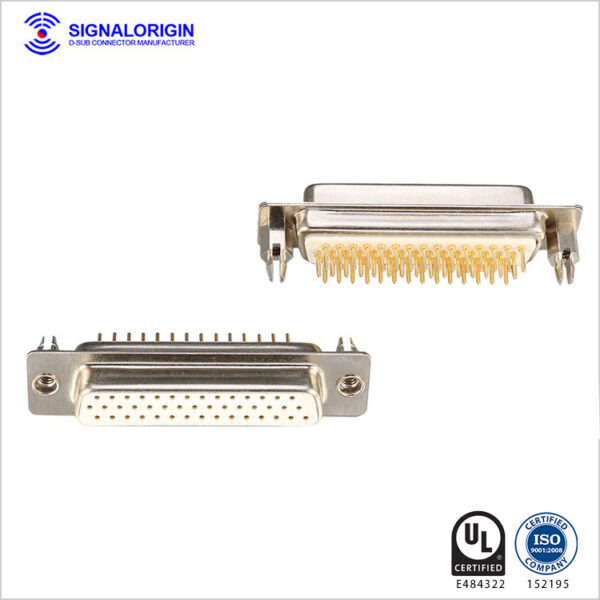

The 44 Pin Female Standard D-Sub Connector features 6.0 copper alloy fork-style contacts, gold over nickel plated for superior conductivity and durability. Housed in nickel or tin-plated steel shells, with robust insulators and locking nuts, this connector is designed for stable, long-lasting signal transmission.
Available in both standard and high-density versions, these D-sub connectors support crimp removable contacts for signal, power, and high-voltage applications. RoHS and non-RoHS compliant options are offered to meet a wide range of industrial, communication, and test equipment requirements.
The 44 Pin Female Standard D-Sub Connector features 6.0 copper alloy fork-style contacts, gold over nickel plated for superior conductivity and durability. Housed in nickel or tin-plated steel shells, with robust insulators and locking nuts, this connector is designed for stable, long-lasting signal transmission.
Available in both standard and high-density versions, these D-sub connectors support crimp removable contacts for signal, power, and high-voltage applications. RoHS and non-RoHS compliant options are offered to meet a wide range of industrial, communication, and test equipment requirements.
| Material | Insulator material | PBT+30% G.F (UL94V-O) |
| Insulator color | Black/Blue (can be customized) | |
| Contacts material | Phosphor copper | |
| Contact plating | Gold finish over nickel | |
| Shell material | Steel/SPCC-SD, nickel or tin plated | |
| Electrical | Dielectric rating | 300V AC |
| Current rating | 3 AMP | |
| Contacts OD | ∮0.76 | |
| Contact resistance | 15mΩ Max | |
| Insulation resistance | 1000MΩ Min at 500V DC | |
| Mechanical | Dielectric withstanding voltage | 750V AC rms at 1 minute |
| Insertion force | ∮0.76: 0.3～2N /Pin | |
| Extraction force | ∮0.76: 02 N /Pin min | |
| Durability | 500 cycles | |
| Operating temperature | -55°C to +105°C |
