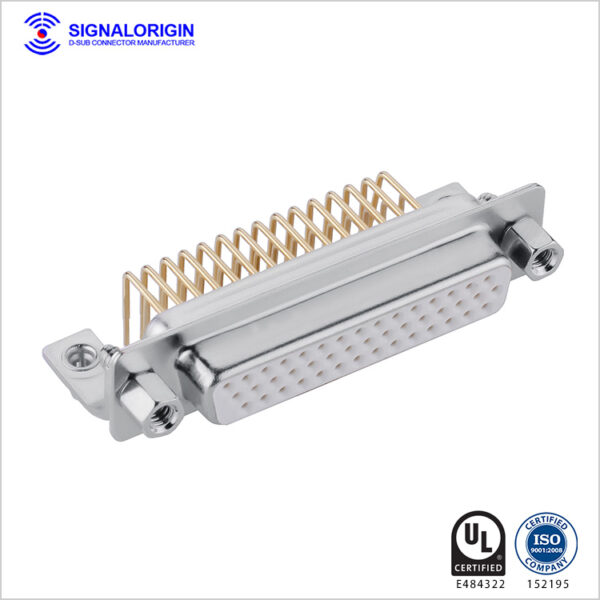

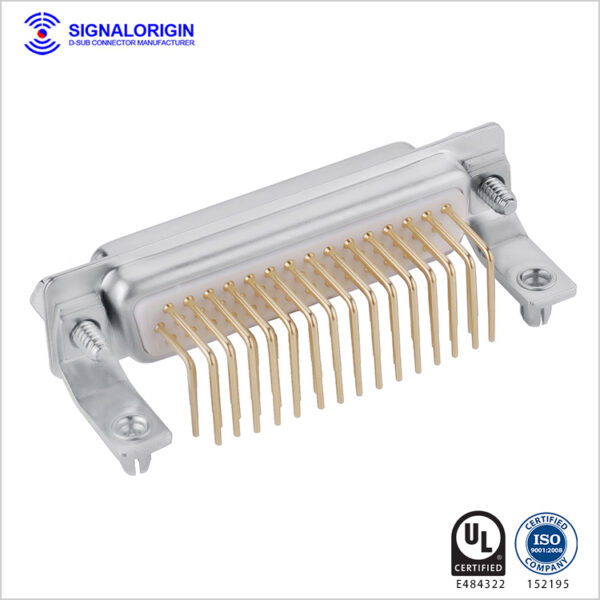

SIGNALORIGIN is a professional manufacturer in China offering the 44 Pin Female Right Angle D-Sub Connector, built for high-density, space-saving PCB applications. Our high-density D-sub connectors are available in 15, 26, 44, and 78 positions, providing a cost-effective solution that complies with industry standards.
Designed for data-intensive and mission-critical systems, this right-angle connector offers reliable signal performance, excellent mechanical durability, and long-term functionality even under physical or environmental stress. It is widely used in industrial electronics, embedded systems, instrumentation, and communication equipment.
SIGNALORIGIN is a professional manufacturer in China offering the 44 Pin Female Right Angle D-Sub Connector, built for high-density, space-saving PCB applications. Our high-density D-sub connectors are available in 15, 26, 44, and 78 positions, providing a cost-effective solution that complies with industry standards.
Designed for data-intensive and mission-critical systems, this right-angle connector offers reliable signal performance, excellent mechanical durability, and long-term functionality even under physical or environmental stress. It is widely used in industrial electronics, embedded systems, instrumentation, and communication equipment.
| Material | Insulator material | PBT+30% G.F (UL94V-O) |
| Insulator color | Black/Blue (can be customized) | |
| Contacts material | Phosphor copper | |
| Contact plating | Gold finish over nickel | |
| Shell material | Steel/SPCC-SD, nickel or tin plated | |
| Electrical | Dielectric rating | 300V AC |
| Current rating | 3 AMP | |
| Contacts OD | ∮0.76 | |
| Contact resistance | 15mΩ Max | |
| Insulation resistance | 1000MΩ Min at 500V DC | |
| Mechanical | Dielectric withstanding voltage | 750V AC rms at 1 minute |
| Insertion force | ∮0.76: 0.3～2N /Pin | |
| Extraction force | ∮0.76: 02 N /Pin min | |
| Durability | 500 cycles | |
| Operating temperature | -55°C to +105°C |
