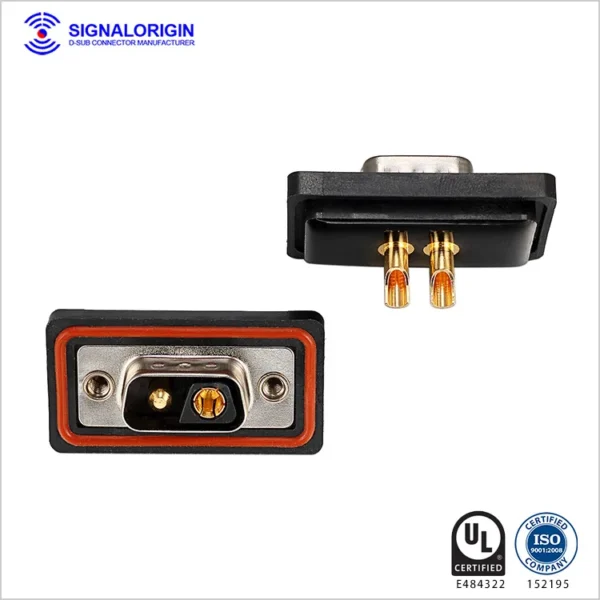

Introducing The 2v2 Male Mixed D-Sub Waterproof Power Connector, Designed To Deliver Reliable Power And Signal Transmission In Harsh Indoor And Outdoor Environments. As Part Of Our Ip67-Rated D-Sub Connector Series, This Connector Ensures Complete Protection Against Water, Dust, And Dirt, Making It Ideal For Heavy-Duty Industrial, Military, Transportation, And Outdoor Communication Applications.
Engineered For Rugged Performance, This Mixed D-Sub Connector Integrates Both Power And Signal Contacts In A Compact Design, Helping Reduce Space While Enhancing Durability. Whether Used In Control Systems, Field Equipment, Or Outdoor Machinery, This Waterproof Solution Ensures Long-Term, Secure Connectivity Under The Toughest Conditions.
Introducing The 2v2 Male Mixed D-Sub Waterproof Power Connector, Designed To Deliver Reliable Power And Signal Transmission In Harsh Indoor And Outdoor Environments. As Part Of Our Ip67-Rated D-Sub Connector Series, This Connector Ensures Complete Protection Against Water, Dust, And Dirt, Making It Ideal For Heavy-Duty Industrial, Military, Transportation, And Outdoor Communication Applications.
Engineered For Rugged Performance, This Mixed D-Sub Connector Integrates Both Power And Signal Contacts In A Compact Design, Helping Reduce Space While Enhancing Durability. Whether Used In Control Systems, Field Equipment, Or Outdoor Machinery, This Waterproof Solution Ensures Long-Term, Secure Connectivity Under The Toughest Conditions.
Material | Insulator material | PBT thermoplastic, UL94-V0 fireproof rated |
Insulator color | Black/Blue (can be customized) | |
Contacts material | Copper alloy | |
Contact plating | Gold Plated, 1U”-30U” | |
Shell material | Steel/SPCC-SD, nickel or tin plated | |
Electrical | Working voltage | 300V AC |
High power contacts current rating | 10A-40A(customized) | |
Contact resistance | 2.7milliohms max | |
Insulation resistance | 2000MΩ Min.at 500v DC | |
Mechanical | Dielectric withstanding voltage | 1000V AC rms at 1 minute |
Insertion force | ¢1.0 :0.6~2 N /Pin
¢3.6:2~7 N /Pin |
|
Extraction force | ¢1.0:0.2 N /Pin MIN
¢3.6:0.5 N /Pin MIN |
|
Durability | 500 cycles | |
Operating temperature | -55°C to +125°C |
