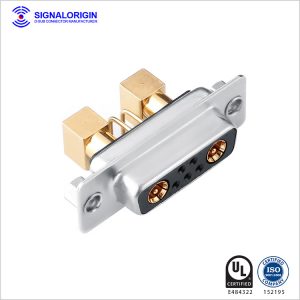

The Signalorigin high power d-sub connector have peplaced the two rows in a Standard Density connector with a power contact that take up about the same size as the two rows of signal contacts. The Signalorigin high power d-sub connector is exactly the same size as the standard Density connector but instead of example 9 possitions of signal pins it has 2 power contacts , or instead of 37 possitions of signals it has 8 power.

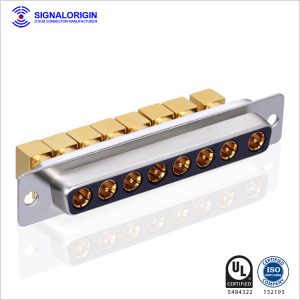

Full layout high power D-sub

d-sub male and female 2w2 power connector manufacturer 2W2 d sub coaxial cable female connector supplier 2w2 male d sub solder cup coaxial power connector
Right angle female coaxial d sub 8W8 connector wholesale  High current male combo D-sub 3w3 Connector  5W5 male high current d sub right angle connector

The Power contacts are available with current rating ranging between 10A – 40A with only the size of the terminal being different.

The Signalorigin mix contact high power d-sub connector is a very popular connector and that it is for a reason, as the name apply, the connector mixes both power contacts and signal contacts in the same connector.

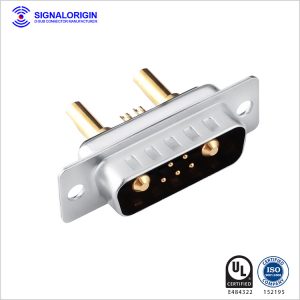

For example the same size as a 15 position Standard Density D-Sub you can have what we call a 7W2, which means there is 7 contacts where 2 of them are power contacts, which means there are 5 signal contacts, so 5 signals and 2 power.

Mixed contact high power d-sub connector

5w1 female coaxial type d connector for sale 5W1 male coaxial power d shell connector 7w2 male right angle combo high power d-connector manufacturers
7w2 solder cup combo male d-sub connector manufacturer 7w2 coaxial rf d-sub female connector manufacturer 11W1 male mixed contact d type connector
