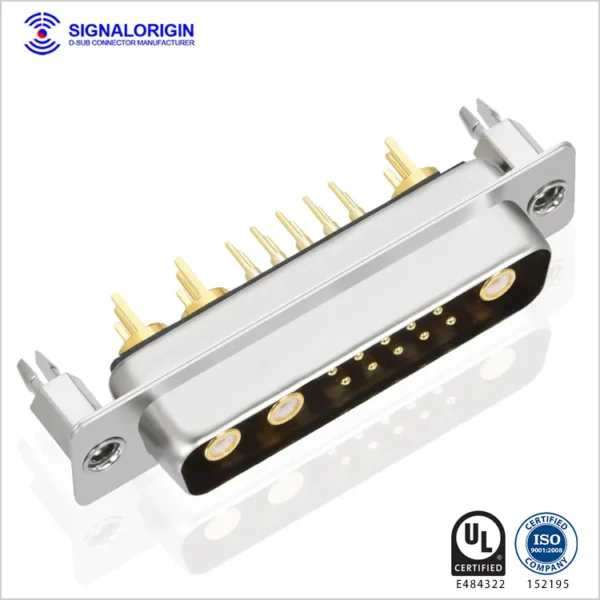

The Combo D-Sub PCB type female 13W3 connector is designed to support both power and signal transmission in a single compact unit. This 13W3 connector features 3 power contacts and 10 signal contacts, making it ideal for high-current applications such as industrial control, power supplies, and communication systems. Power contacts support current ratings from 10A to 40A, with only the terminal size varying to match specific load requirements.
This mixed-layout D-sub connector offers a reliable, space-saving solution with robust performance and easy PCB mounting. Customization options are available for different current ratings, pin configurations, and housing materials to meet complex application needs.
This mixed-layout D-sub connector offers a reliable, space-saving solution with robust performance and easy PCB mounting. Customization options are available for different current ratings, pin configurations, and housing materials to meet complex application needs.
| Material | Insulator material | PBT thermoplastic, UL94-V0 fireproof rated |
| Insulator color | Black/Blue (can be customized) | |
| Contacts material | Phosphor Copper | |
| Contact plating | Gold Plated, 1U”-30U” | |
| Shell material | Steel/SPCC-SD, nickel or tin plated | |
| Electrical | Working voltage | 300V AC |
| High power contacts current rating | 10A-40A(customized) | |
| Signal contacts current rating | 3A | |
| Contact resistance | 15mΩ Max | |
| Insulation resistance | 2000MΩ Min.at 500v DC | |
| Mechanical | Dielectric withstanding voltage | 1000V AC rms at 1 minute |
| Insertion force | ￠1.0 :0.6～2 N /Pin
￠3.6:2～7 N /Pin |
|
| Extraction force | ￠1.0:0.2 N /Pin MIN
￠3.6:0.5 N /Pin MIN |
|
| Durability | 500 cycles | |
| Operating temperature | -55°C to +125°C |
