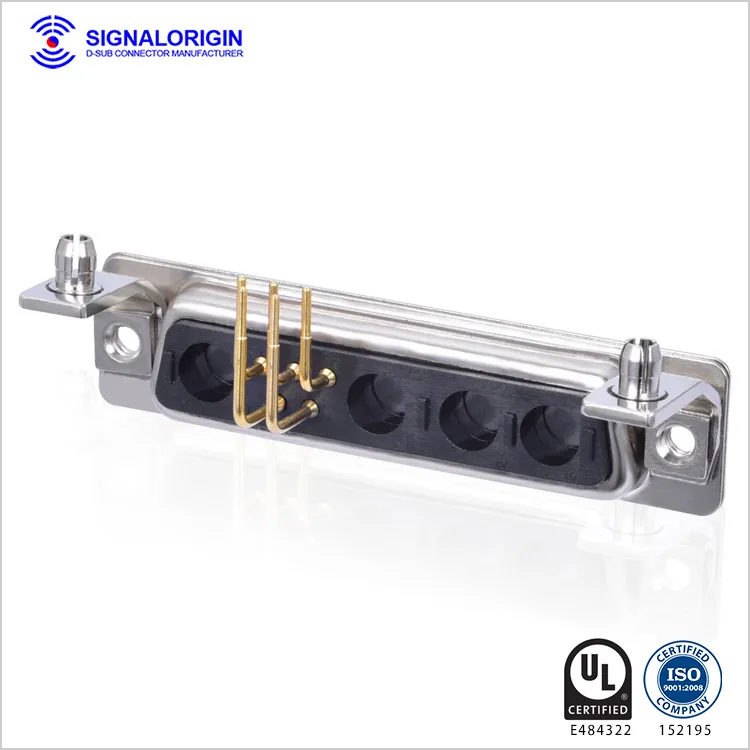

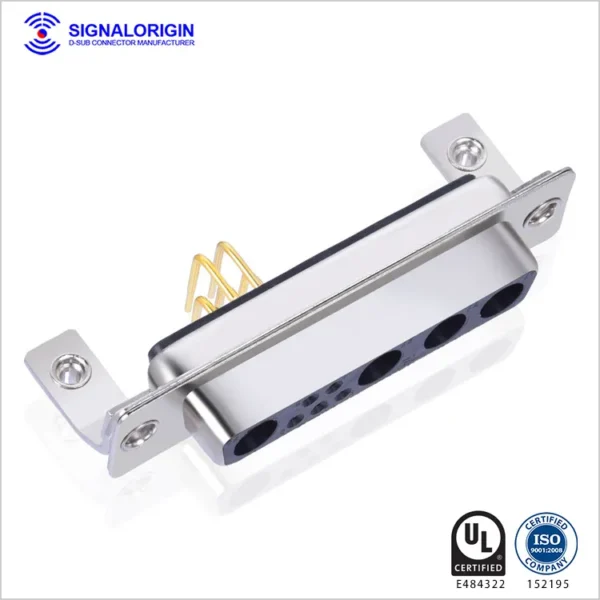

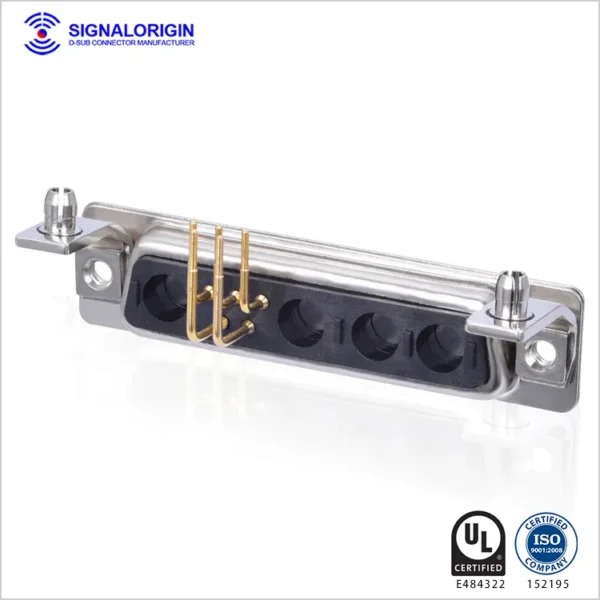

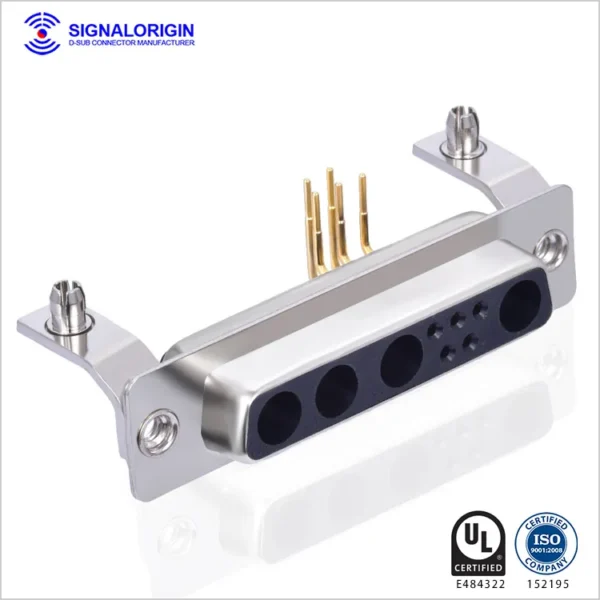

The 9w4 Female Right Angle Combo D-Sub Connector By Signalorigin Features A Durable Steel/Spcc-Sd Shell With Either Tin Or Nickel Plating For Enhanced Corrosion Resistance And Conductivity. This Hybrid Connector Integrates 4 Power Contacts And 5 Signal Contacts In A Single Compact Layout, Providing An Efficient Solution For Applications Requiring Both Power And Signal Transmission Within One Connector.
Ideal For Industrial Automation, Telecommunications, Power Management, And Embedded Systems, The 9w4 Combo D-Sub Offers Robust Performance With A Mixed-Contact Design That Supports High Current Loads Alongside Sensitive Signal Connections. For Complementary Use, Consider Pairing With Our 9w4 Male D-Sub Connector, Designed To Match Seamlessly In Complex Electronic Interfaces.
| Material | Insulator material | PBT thermoplastic, UL94-V0 fireproof rated |
| Insulator color | Black/Blue (can be customized) | |
| Contacts material | Phosphor Copper | |
| Contact plating | Gold Plated, 1U”-30U” | |
| Shell material | Steel/SPCC-SD, nickel or tin plated | |
| Electrical | Working voltage | 300V AC |
| High power contacts current rating | 10A-40A(customized) | |
| Signal contacts current rating | 3A | |
| Contact resistance | 15mΩ Max | |
| Insulation resistance | 2000MΩ Min.at 500v DC | |
| Mechanical | Dielectric withstanding voltage | 1000V AC rms at 1 minute |
| Insertion force | ￠1.0 :0.6～2 N /Pin
￠3.6:2～7 N /Pin |
|
| Extraction force | ￠1.0:0.2 N /Pin MIN
￠3.6:0.5 N /Pin MIN |
|
| Durability | 500 cycles | |
| Operating temperature | -55°C to +125°C |
