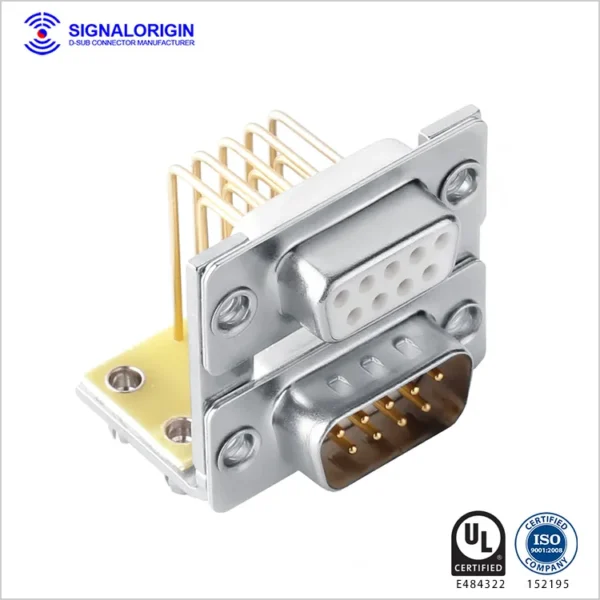

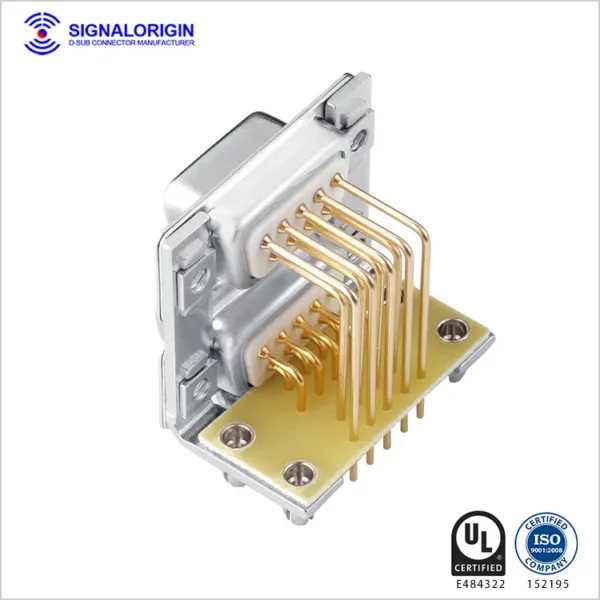

Signalorigin Is A Trusted Manufacturer Of 9-Pin Standard Dual-Port D-Sub Connectors, Specifically Designed To Maximize Board And Panel Space With A Compact Right-Angle Stacked Configuration. These Standard-Density Dual-Port Connectors Deliver Reliable Signal Transmission While Minimizing Footprint, Making Them Ideal For High-Density System Integration.
Our Extensive D-Subminiature Product Line Includes Standard D-Subs, High-Density D-Subs, Combo D-Subs, High-Power D-Subs, Dual-Port D-Subs, Coaxial D-Subs, And Waterproof D-Sub Connectors. Engineered For Use In Industrial Equipment, Automation Systems, Communication Devices, Military Electronics, Medical Technology, And More, Signalorigin Provides Cost-Effective, Time-Tested D-Sub Solutions Complete With Optional Accessories For Flexible Configurations.
Signalorigin Is A Trusted Manufacturer Of 9-Pin Standard Dual-Port D-Sub Connectors, Specifically Designed To Maximize Board And Panel Space With A Compact Right-Angle Stacked Configuration. These Standard-Density Dual-Port Connectors Deliver Reliable Signal Transmission While Minimizing Footprint, Making Them Ideal For High-Density System Integration.
Our Extensive D-Subminiature Product Line Includes Standard D-Subs, High-Density D-Subs, Combo D-Subs, High-Power D-Subs, Dual-Port D-Subs, Coaxial D-Subs, And Waterproof D-Sub Connectors. Engineered For Use In Industrial Equipment, Automation Systems, Communication Devices, Military Electronics, Medical Technology, And More, Signalorigin Provides Cost-Effective, Time-Tested D-Sub Solutions Complete With Optional Accessories For Flexible Configurations.
| Material | Insulator material | PBT thermoplastic, UL94-V0 fireproof rated |
| Insulator material | Black/Blue (can be customized) | |
| Contacts material | Phosphor Copper | |
| Contact plating | Gold Plated, 1U”-30U” | |
| Shell material | Steel/SPCC-SD, nickel or tin plated | |
| Electrical | Working voltage | 300V AC |
| High power contacts current rating | 10A-40A(customized) | |
| Signal contacts current rating | 3A | |
| Contact resistance | 15mΩ Max | |
| Insulation resistance | 2000MΩ Min.at 500v DC | |
| Mechanical | Dielectric withstanding voltage | 1000V AC rms at 1 minute |
| Insertion force | ￠1.0 :0.6～2 N /Pin
￠3.6:2～7 N /Pin |
|
| Extraction force | ￠1.0:0.2 N /Pin MIN
￠3.6:0.5 N /Pin MIN |
|
| Durability | 500 cycles | |
| Operating temperature | -55°C to +125°C |
