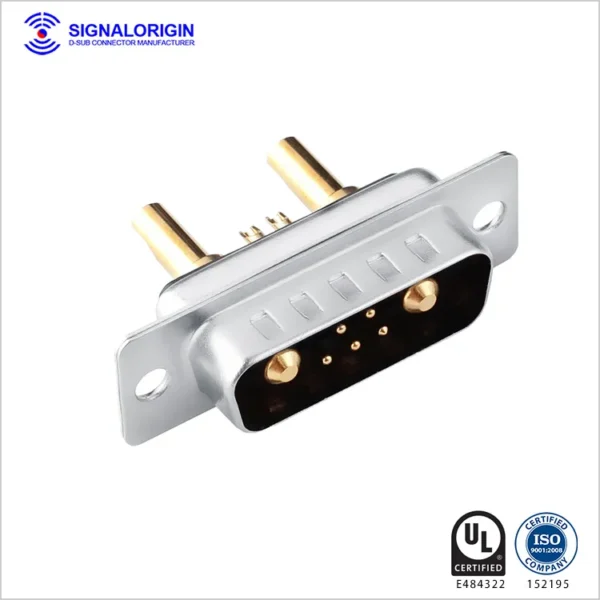

Signalorigin Is A Specialized Manufacturer Of 7w2 Solder Cup Combo Male D-Sub Connectors, Offering A Compact And Reliable Solution For Combining Signal, High Current, And High Voltage In A Single Interface. The Connector Features 2 Power Contacts (10a–40a) And 5 Signal Contacts, With Machined Copper Alloy Terminals, Full Gold Flash Plating, A Glass-Filled Thermoplastic Insulator, And A Nickel-Plated Steel Shell—Ensuring Durability, Electrical Performance, And Thermal Resistance.
These Mixed Layout D-Sub Connectors Are Widely Used In Power Control Systems, Industrial Machinery, Automation Equipment, Military Applications, And Transportation Electronics, Where A Rugged And Space-Saving Design Is Essential. Signalorigin Provides A Complete D-Subminiature Connector Portfolio And Accessories To Meet Diverse And Complex Application Needs With Cost-Effective, Customizable, And Standards-Compliant Solutions.
Signalorigin Is A Specialized Manufacturer Of 7w2 Solder Cup Combo Male D-Sub Connectors, Offering A Compact And Reliable Solution For Combining Signal, High Current, And High Voltage In A Single Interface. The Connector Features 2 Power Contacts (10a–40a) And 5 Signal Contacts, With Machined Copper Alloy Terminals, Full Gold Flash Plating, A Glass-Filled Thermoplastic Insulator, And A Nickel-Plated Steel Shell—Ensuring Durability, Electrical Performance, And Thermal Resistance.
These Mixed Layout D-Sub Connectors Are Widely Used In Power Control Systems, Industrial Machinery, Automation Equipment, Military Applications, And Transportation Electronics, Where A Rugged And Space-Saving Design Is Essential. Signalorigin Provides A Complete D-Subminiature Connector Portfolio And Accessories To Meet Diverse And Complex Application Needs With Cost-Effective, Customizable, And Standards-Compliant Solutions.
| Material | Insulator material | PBT thermoplastic, 30% Glass filled, UL 94V-O rated |
| Insulator color | Black/Blue (can be customized) | |
| High power contact | Copper alloy material, gold plated | |
| Connector with signal contact material | Copper alloy, gold plated | |
| Shell material | Steel or copper alloy material, Tin/Ni or Au finished | |
| Bracket | Copper alloy material, Ni plated | |
| Electrical | Working voltage | 300V AC |
| High power contacts current rating | 10A-40A(customized) | |
| Signal contacts current rating | 3A | |
| High power contact resistance | 2.7 milliohms max | |
| Insulation resistance | 2000 megaohms min | |
| Mechanical | Dielectric withstanding voltage | 1000V AC rms at 1 minute |
| Insertion force | ￠1.0 :0.6～2 N /Pin
￠3.6:2～7 N /Pin |
|
| Extraction force | ￠1.0:0.2 N /Pin MIN
￠3.6:0.5 N /Pin MIN |
|
| Durability | 500 cycles | |
| Operating temperature | -55°C to +125°C |
