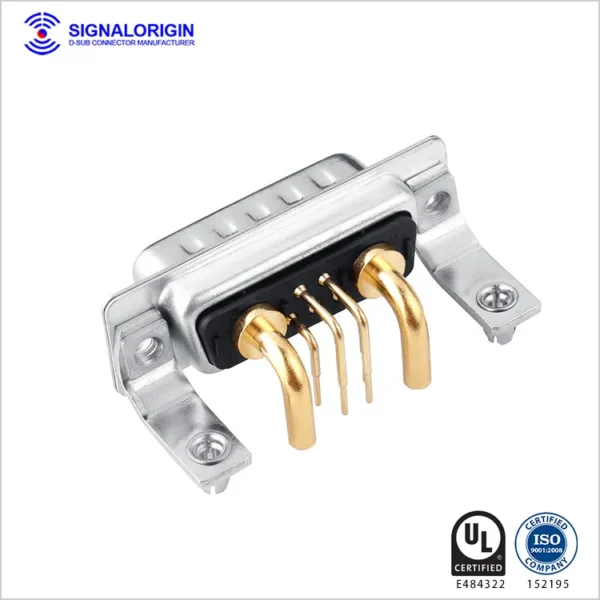

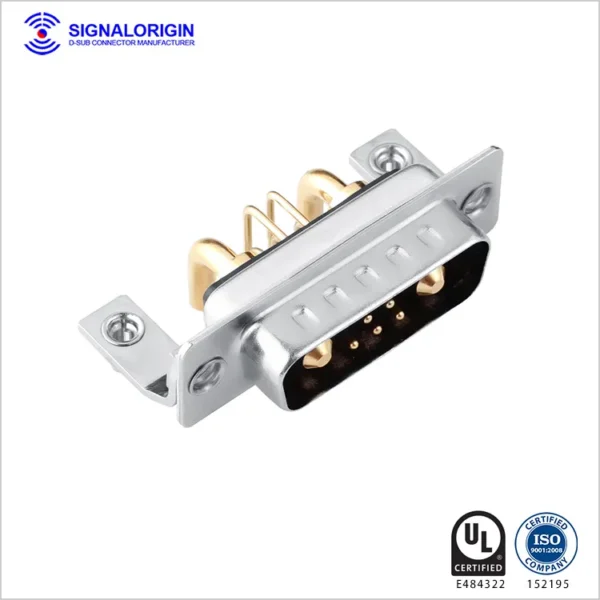

Signalorigin Is A Leading Manufacturer And Wholesale Supplier Of 7w2 Male Right-Angle Combo High Power D-Sub Connectors In China. This Mixed Layout D-Sub Connector Features 2 Power Contacts (Rated 10a–40a) And 5 Signal Contacts, Combining High-Current Capability And Signal Transmission In A Single Compact Housing. The Variation In Current Rating Depends On The Terminal Size, Offering Versatile Solutions For Demanding Power-Signal Integration.
Our 7w2 Combo D-Sub Connectors Are Widely Used In Industrial Control, Robotics, Automation Systems, Transportation, And Military Electronics, Where Reliable Performance And Space-Saving Design Are Crucial. Signalorigin Also Offers A Full Range Of D-Subminiature Connectors, Including Standard, High-Density, Combo, High-Power, Dual-Port, Coaxial, And Waterproof D-Sub Types—Providing Complete And Customized Interconnect Solutions For Global Oems.
Signalorigin Is A Leading Manufacturer And Wholesale Supplier Of 7w2 Male Right-Angle Combo High Power D-Sub Connectors In China. This Mixed Layout D-Sub Connector Features 2 Power Contacts (Rated 10a–40a) And 5 Signal Contacts, Combining High-Current Capability And Signal Transmission In A Single Compact Housing. The Variation In Current Rating Depends On The Terminal Size, Offering Versatile Solutions For Demanding Power-Signal Integration.
Our 7w2 Combo D-Sub Connectors Are Widely Used In Industrial Control, Robotics, Automation Systems, Transportation, And Military Electronics, Where Reliable Performance And Space-Saving Design Are Crucial. Signalorigin Also Offers A Full Range Of D-Subminiature Connectors, Including Standard, High-Density, Combo, High-Power, Dual-Port, Coaxial, And Waterproof D-Sub Types—Providing Complete And Customized Interconnect Solutions For Global Oems.
| Material | Insulator material | PBT thermoplastic, 30% Glass filled, UL 94V-O rated |
| Insulator color | Black/Blue (can be customized) | |
| High power contact | Copper alloy material, gold plated | |
| Connector with signal contact material | Copper alloy, gold plated | |
| Shell material | Steel or copper alloy material, Tin/Ni or Au finished | |
| Bracket | Copper alloy material, Ni plated | |
| Electrical | Working voltage | 300V AC |
| High power contacts current rating | 10A-40A(customized) | |
| Signal contacts current rating | 3A | |
| High power contact resistance | 2.7 milliohms max | |
| Insulation resistance | 2000 megaohms min | |
| Mechanical | Dielectric withstanding voltage | 1000V AC rms at 1 minute |
| Insertion force | ￠1.0 :0.6～2 N /Pin
￠3.6:2～7 N /Pin |
|
| Extraction force | ￠1.0:0.2 N /Pin MIN
￠3.6:0.5 N /Pin MIN |
|
| Durability | 500 cycles | |
| Operating temperature | -55°C to +125°C |
