Signalorigin Is A Trusted Manufacturer Of 7w2 D-Sub Male Right-Angle High Current Connectors In China, Offering A Reliable Combination Of Power And Signal Transmission Within A Compact Design. The 7w2 Configuration Features 2 Power Contacts (Rated 10a To 40a) And 5 Signal Contacts, Making It Ideal For High-Power And Mixed-Signal Applications. Power Contact Ratings Vary Based On Terminal Size, Ensuring Flexibility Across Different Current Requirements.
Our D-Subminiature Connectors Are Widely Used In Industrial Automation, Electric Vehicles, Communication Systems, Military Equipment, And Power Control. With Ul Certification, Iso 9001 Quality Standards, And Support For Customization, Signalorigin Offers Fast Delivery (3–7 Days), 3–5 Free Sample Sets, And Professional, Responsive Customer Service—Delivering Cost-Effective And Dependable Solutions For Complex Connectivity Challenges.

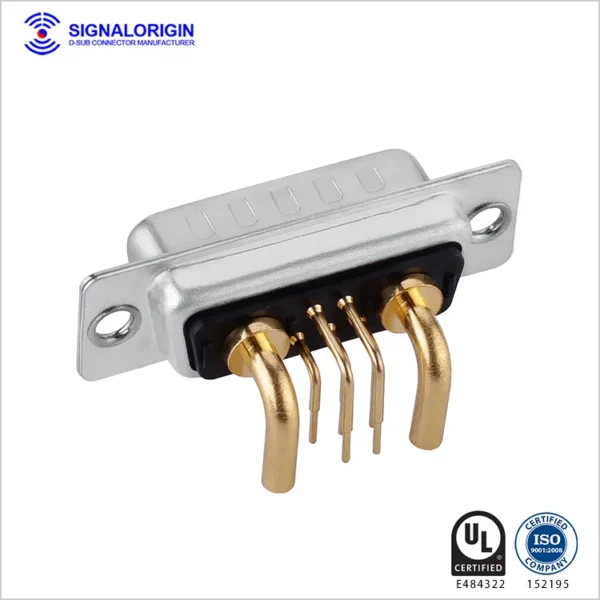

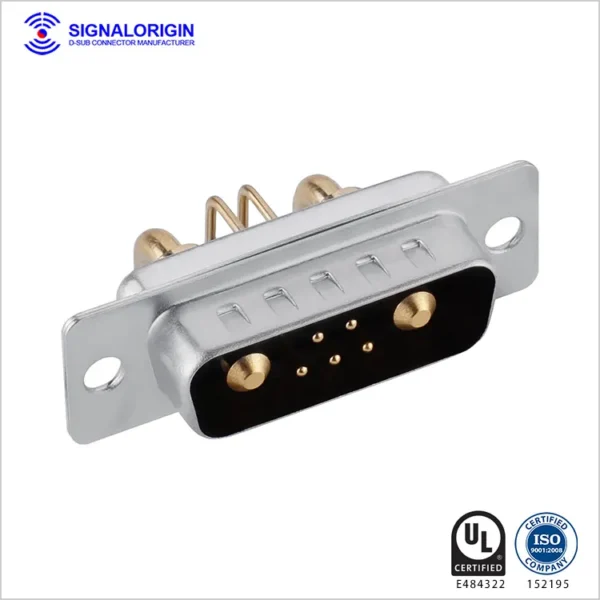

SIGNALORIGIN is a trusted manufacturer of 7W2 D-sub male right-angle high current connectors in China, offering a reliable combination of power and signal transmission within a compact design. The 7W2 configuration features 2 power contacts (rated 10A to 40A) and 5 signal contacts, making it ideal for high-power and mixed-signal applications. Power contact ratings vary based on terminal size, ensuring flexibility across different current requirements.
Our D-subminiature connectors are widely used in industrial automation, electric vehicles, communication systems, military equipment, and power control. With UL certification, ISO 9001 quality standards, and support for customization, SIGNALORIGIN offers fast delivery (3–7 days), 3–5 free sample sets, and professional, responsive customer service—delivering cost-effective and dependable solutions for complex connectivity challenges.
| Material | Insulator material | PBT thermoplastic, UL94-V0 fireproof rated |
| Insulator color | Black/Blue (can be customized) | |
| Contacts material | Brass | |
| Contact plating | Gold Plated, 1U”-30U” | |
| Shell material | Steel/SPCC-SD, nickel or tin plated | |
| Electrical | Working voltage | 300V AC |
| High power contacts current rating | 10A-40A(customized) | |
| Signal contacts current rating | 5A | |
| Contact resistance | 2.7 milliohms max | |
| Insulation resistance | 2000MΩ Min.at 500v DC | |
| Mechanical | Dielectric withstanding voltage | 1000V AC rms at 1 minute |
| Insertion force | ￠1.0 :0.6～2 N /Pin
￠3.6:2～7 N /Pin |
|
| Extraction force | ￠1.0:0.2 N /Pin MIN
￠3.6:0.5 N /Pin MIN |
|
| Durability | 500 cycles | |
| Operating temperature | -55°C to +125°C |
