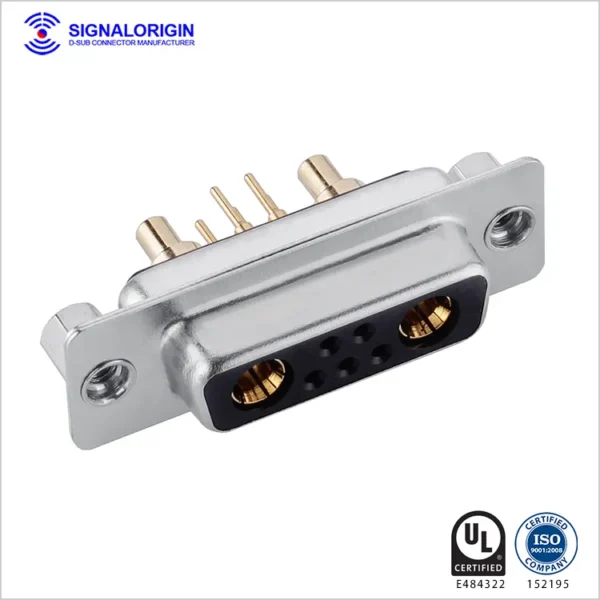

Signalorigin Is A Professional Manufacturer Of 7w2 D-Sub High Current Female Dip Type Connectors In China. This Power D-Sub Connector Features A Hybrid Layout Of 2 Power Contacts (10a–40a) And 5 Signal Contacts, Providing Both High-Current Capacity And Reliable Signal Transmission In A Single Compact Solution. The Power Contact Rating Is Determined By Terminal Size, Making It Suitable For A Wide Range Of Industrial, Automation, Energy, And Power Supply Applications.
Our D-Sub Connector Portfolio Offers Excellent Flexibility, Durability, And Sealability, With Customization Options For Various Current Ratings (10a, 20a, 30a, 40a). Signalorigin Ensures Quality Through Ul Certification And Iso 9001 Standards, Offers 3–5 Sets Of Free Samples, Fast Delivery Within 3–7 Days, And Responsive Customer Support. We Provide Cost-Effective And Tailored D-Sub Solutions To Meet Complex System Integration Needs.
Signalorigin Is A Professional Manufacturer Of 7w2 D-Sub High Current Female Dip Type Connectors In China. This Power D-Sub Connector Features A Hybrid Layout Of 2 Power Contacts (10a–40a) And 5 Signal Contacts, Providing Both High-Current Capacity And Reliable Signal Transmission In A Single Compact Solution. The Power Contact Rating Is Determined By Terminal Size, Making It Suitable For A Wide Range Of Industrial, Automation, Energy, And Power Supply Applications.
Our D-Sub Connector Portfolio Offers Excellent Flexibility, Durability, And Sealability, With Customization Options For Various Current Ratings (10a, 20a, 30a, 40a). Signalorigin Ensures Quality Through Ul Certification And Iso 9001 Standards, Offers 3–5 Sets Of Free Samples, Fast Delivery Within 3–7 Days, And Responsive Customer Support. We Provide Cost-Effective And Tailored D-Sub Solutions To Meet Complex System Integration Needs.
| Material | Insulator material | PBT thermoplastic, UL94-V0 fireproof rated |
| Insulator color | Black/Blue (can be customized) | |
| Contacts material | Brass | |
| Contact plating | Gold Plated, 1U”-30U” | |
| Shell material | Steel/SPCC-SD, nickel or tin plated | |
| Electrical | Working voltage | 300V AC |
| High power contacts current rating | 10A-40A(customized) | |
| Signal contacts current rating | 5A | |
| Contact resistance | 2.7 milliohms max | |
| Insulation resistance | 2000MΩ Min.at 500v DC | |
| Mechanical | Dielectric withstanding voltage | 1000V AC rms at 1 minute |
| Insertion force | ￠1.0 :0.6～2 N /Pin
￠3.6:2～7 N /Pin |
|
| Extraction force | ￠1.0:0.2 N /Pin MIN
￠3.6:0.5 N /Pin MIN |
|
| Durability | 500 cycles | |
| Operating temperature | -55°C to +125°C |
