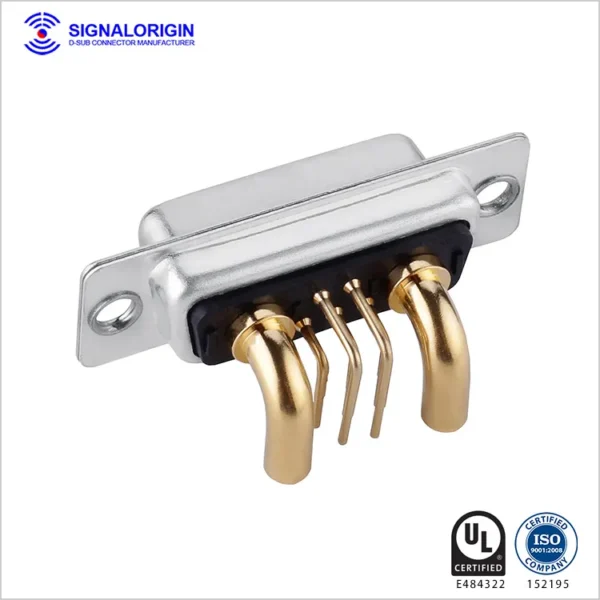

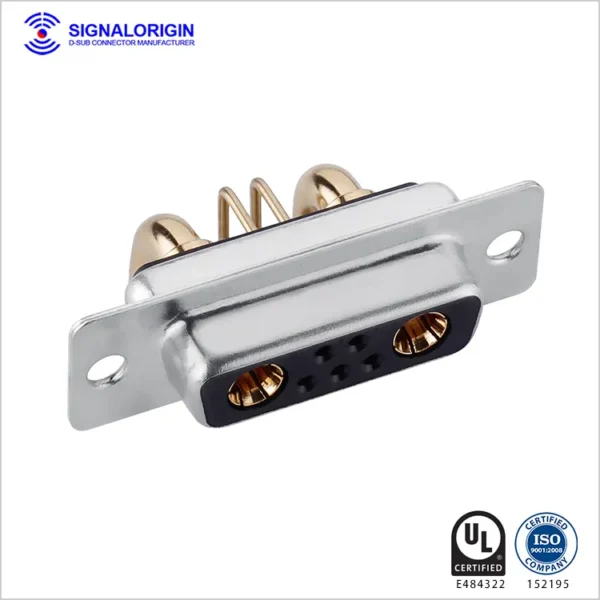

SIGNALORIGIN is a leading manufacturer in China specializing in 7W2 D-sub female right-angle high current connectors, designed to combine power and signal transmission in one compact solution. The 7W2 Power D-sub features 2 power contacts (10A–40A) and 5 signal contacts, with only the terminal size determining the current rating. These connectors are ideal for high-power, mixed-signal applications across industrial, automation, and control systems.
Our D-subminiature connector lineup offers flexibility, durability, and sealability, with full support for custom designs, UL certification, ISO 9001 standards, and fast delivery within 3–7 days. SIGNALORIGIN also provides 3–5 free sample sets, personalized support, and a wide selection of sizes—making us your trusted partner for high-performance D-sub connector solutions.
SIGNALORIGIN is a leading manufacturer in China specializing in 7W2 D-sub female right-angle high current connectors, designed to combine power and signal transmission in one compact solution. The 7W2 Power D-sub features 2 power contacts (10A–40A) and 5 signal contacts, with only the terminal size determining the current rating. These connectors are ideal for high-power, mixed-signal applications across industrial, automation, and control systems.
Our D-subminiature connector lineup offers flexibility, durability, and sealability, with full support for custom designs, UL certification, ISO 9001 standards, and fast delivery within 3–7 days. SIGNALORIGIN also provides 3–5 free sample sets, personalized support, and a wide selection of sizes—making us your trusted partner for high-performance D-sub connector solutions.
| Material | Insulator material | PBT thermoplastic, UL94-V0 fireproof rated |
| Insulator color | Black/Blue (can be customized) | |
| Contacts material | Brass | |
| Contact plating | Gold Plated, 1U”-30U” | |
| Shell material | Steel/SPCC-SD, nickel or tin plated | |
| Electrical | Working voltage | 300V AC |
| High power contacts current rating | 10A-40A(customized) | |
| Signal contacts current rating | 5A | |
| Contact resistance | 2.7 milliohms max | |
| Insulation resistance | 2000MΩ Min.at 500v DC | |
| Mechanical | Dielectric withstanding voltage | 1000V AC rms at 1 minute |
| Insertion force | ￠1.0 :0.6～2 N /Pin
￠3.6:2～7 N /Pin |
|
| Extraction force | ￠1.0:0.2 N /Pin MIN
￠3.6:0.5 N /Pin MIN |
|
| Durability | 500 cycles | |
| Operating temperature | -55°C to +125°C |
