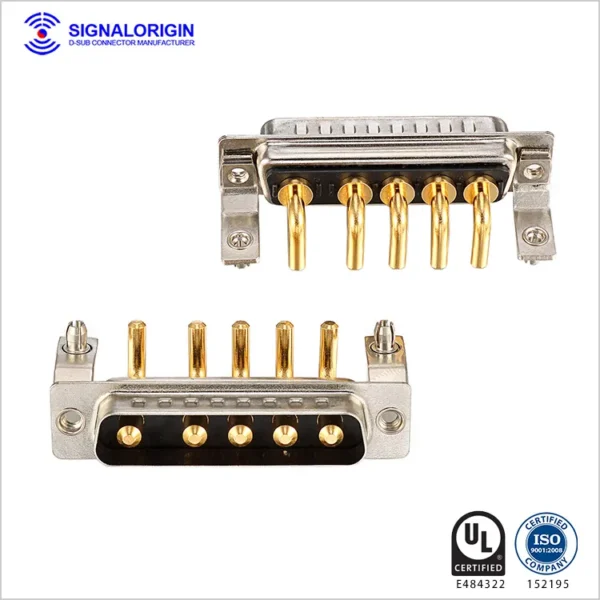

The 5w5 Male High Current Right Angle D-Sub Connector From Signalorigin Is Designed For Space-Saving, High-Current Applications. It Features Gold Over Nickel Plated Machined Contacts, Housed In A Nickel Or Tin-Plated Steel Shell, Along With A Nickel-Plated Bracket And High-Temperature Insulating Materials. The Right-Angle Configuration Is Ideal For Compact Pcb Layouts And Tight Mounting Spaces.
Engineered For Maximum Mechanical Strength And Superior Current-Carrying Capacity, This Connector Is Widely Used In Power Distribution Systems, Industrial Automation, Telecommunications, And Military-Grade Equipment. Machined Contacts Offer Outstanding Conductivity, Durability, And A Variety Of Plating Options. For Complete Connectivity, Pair It With The 5w5 Female D-Sub Connector From Signalorigin.
| Material | Insulator material | PBT thermoplastic, 30% Glass filled, UL 94V-O rated |
| Insulator color | Black/Blue (can be customized) | |
| Contacts material | Copper alloy | |
| Contact plating | Gold finish over nickel | |
| Shell material | Steel or copper alloy material, Tin/Ni or Au finished | |
| Electrical | High power contact current rating | 10, 20, 30, 40 A (can be customized) |
| The working voltage | 300V | |
| High power contact resistance | 10 milliohms max | |
| Insulation resistance | 2000 megaohms min | |
| Mechanical | Dielectric withstanding voltage | 1000 v AC for 1 minute |
| Insertion force | ∮0.76: 0.3～2N /Pin | |
| Extraction force | ∮0.76: 02 N /Pin min | |
| Durability | 500 cycles | |
| Operating temperature | -55°C to +125°C |
