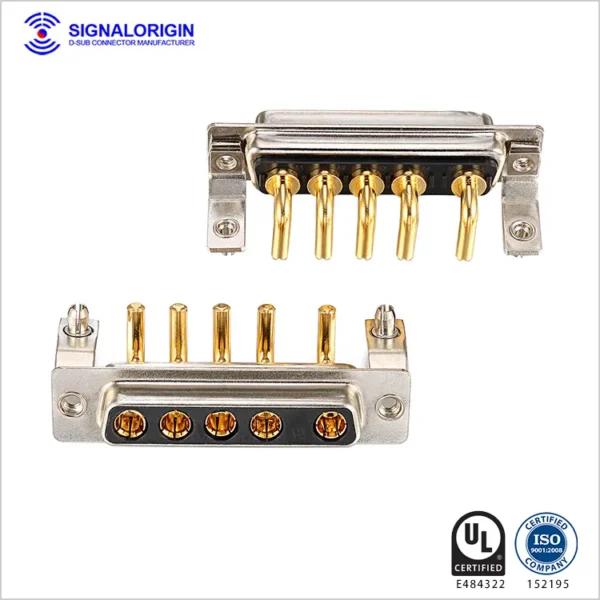

The 5w5 Female High Current Subminiature D Connector From Signalorigin Is Built To Deliver Exceptional Electrical Performance And Reliability In Mission-Critical And High-Load Environments. This Connector Serves As A Robust Interface Between Devices, With Five Power Contacts Engineered To Handle High Current Transmission Efficiently. Manufactured Using Premium-Grade Materials, It Ensures Long-Term Durability And Secure Electrical Conductivity Under Extreme Operating Conditions.
Widely Used In Industrial Equipment, Military Systems, Telecom Infrastructure, And Power Control Modules, The 5w5 Female D-Sub Connector Offers Precision Engineering And Stable Connectivity. For A Complete Interface Solution, Pair It With The 5w5 Male D-Sub Connector To Ensure Optimal System Performance.
| Material | Insulator material | PBT thermoplastic, 30% Glass filled, UL 94V-O rated |
| Insulator color | Black/Blue (can be customized) | |
| Contacts material | Copper alloy | |
| Contact plating | Gold finish over nickel | |
| Shell material | Steel or copper alloy material, Tin/Ni or Au finished | |
| Electrical | High power contact current rating | 10, 20, 30, 40 A (can be customized) |
| The working voltage | 300V | |
| High power contact resistance | 10 milliohms max | |
| Insulation resistance | 2000 megaohms min | |
| Mechanical | Dielectric withstanding voltage | 1000 v AC for 1 minute |
| Insertion force | ∮3.6:0.5 N /Pin MIN | |
| Extraction force | ∮3.6:0.5 N /Pin MIN | |
| Durability | 500 cycles | |
| Operating temperature | -55°C to +125°C |
