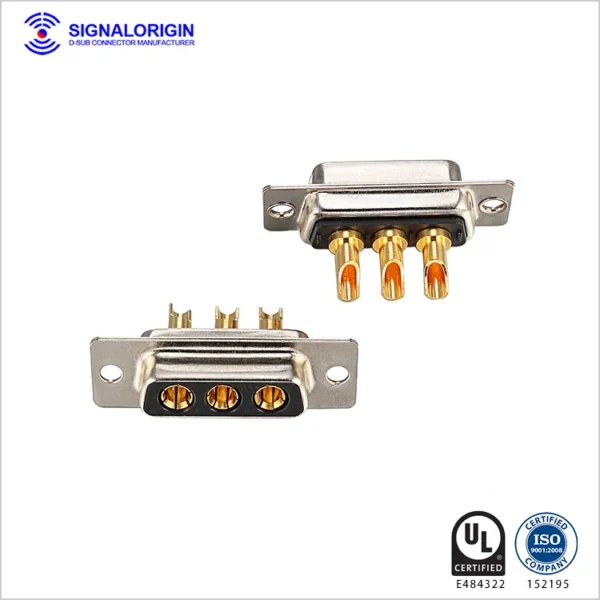

Signalorigin Is A Reliable Supplier Of 3w3 Female Combo D-Sub Connectors, Designed To Deliver High Current And High Performance In Demanding Electronic Systems. The 3-Position Layout Offers A Combination Of Power And Signal Contacts, Utilizing Advanced Contact Technology For Stable And Efficient Transmission. This Connector Retains The Classic D-Sub Shape, Making It Interchangeable With Standard D-Sub Connectors On Pcbs, Panels, Or Cable Assemblies.
Built for power supplies, industrial controls, military electronics, and communication systems, the 3W3 female connector ensures long-term reliability and seamless integration. Pair it with our 3W3 male D-sub connector for a complete connection solution in your high-power or hybrid interface projects.
| Material | Insulator material | PBT thermoplastic, 30% Glass filled, UL 94V-O rated |
| Insulator color | Black/Blue (can be customized) | |
| Contacts material | Copper alloy | |
| Contact plating | Gold finish over nickel | |
| Shell material | Steel or copper alloy material, Tin/Ni or Au finished | |
| Electrical | High power contact current rating | 10, 20, 30, 40 A (can be customized) |
| The working voltage | 300V | |
| High power contact resistance | 2.7 milliohms max | |
| Contact resistance | 15mΩ Max | |
| Insulation resistance | 2000 megaohms min | |
| Mechanical | Dielectric withstanding voltage | 1000 v AC for 1 minute |
| Insertion force | ∮3.6:2～7 N /Pin | |
| Extraction force | ∮3.6:0.5 N /Pin MIN | |
| Durability | 500 cycles | |
| Operating temperature | -55°C to +125°C |
