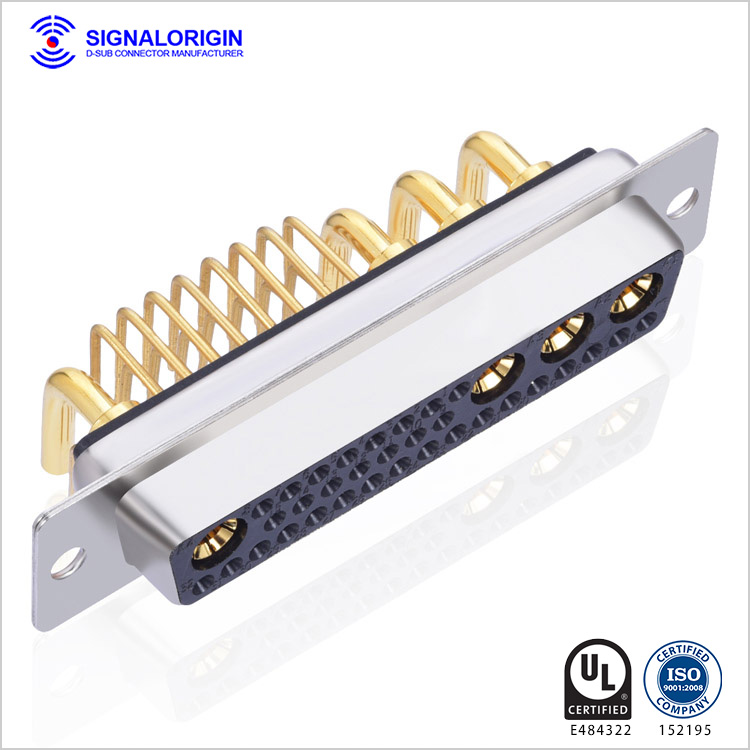

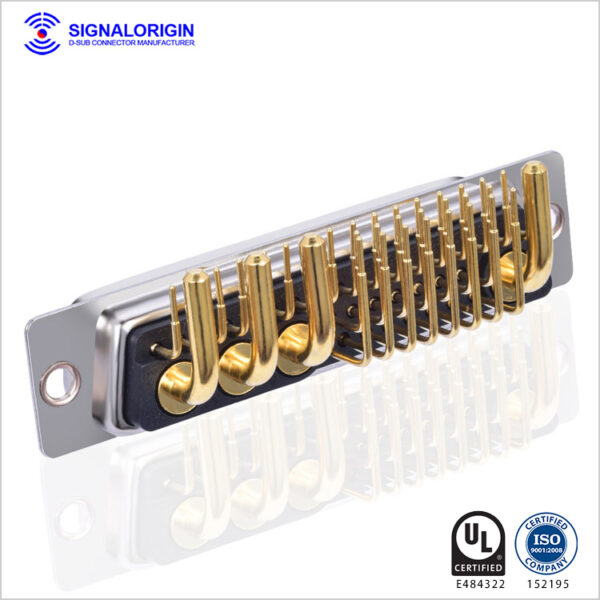

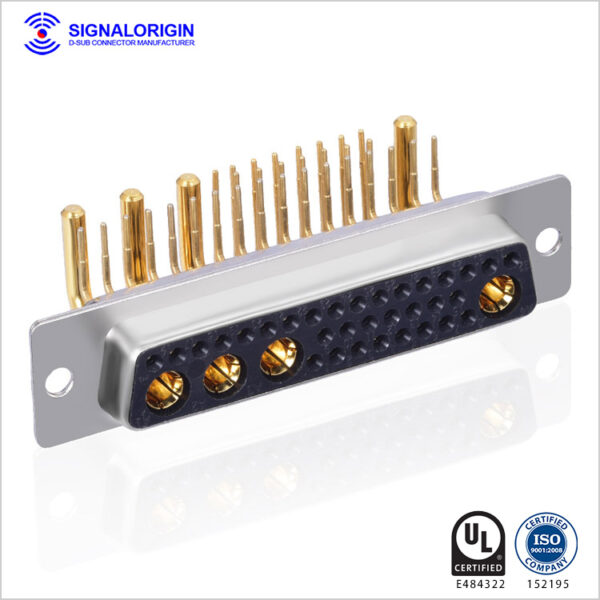

The 36W4 high current female D-Sub connector features a right angle DIP type design with a rated current capacity of 30A, making it ideal for reliable power and signal transmission. As a crucial interface component between electronic devices, this mixed contact D-Sub connector combines 4 power contacts and 32 signal contacts, delivering stable performance in high-demand environments.
Perfect for use in military equipment, ground support systems, computer peripherals, modems, and industrial instrumentation, the 36W4 connector ensures strong electrical contact and long service life. Need a compatible match? Discover our 36W4 male D-Sub connector for complete connectivity solutions.
The 36W4 high current female D-Sub connector features a right angle DIP type design with a rated current capacity of 30A, making it ideal for reliable power and signal transmission. As a crucial interface component between electronic devices, this mixed contact D-Sub connector combines 4 power contacts and 32 signal contacts, delivering stable performance in high-demand environments.
Perfect for use in military equipment, ground support systems, computer peripherals, modems, and industrial instrumentation, the 36W4 connector ensures strong electrical contact and long service life. Need a compatible match? Discover our 36W4 male D-Sub connector for complete connectivity solutions.
| Material | Insulator material | PBT thermoplastic, UL94-V0 fireproof rated |
| Insulator color | Black/Blue (can be customized) | |
| Contacts material | Phosphor Copper | |
| Contact plating | Gold Plated, 1U”-30U” | |
| Shell material | Steel/SPCC-SD, nickel or tin plated | |
| Electrical | Working voltage | 300V AC |
| High power contacts current rating | 10A-40A(customized) | |
| Signal contacts current rating | 3A | |
| Contact resistance | 2.7 milliohms max | |
| Insulation resistance | 2000MΩ Min.at 500v DC | |
| Mechanical | Dielectric withstanding voltage | 1000V AC rms at 1 minute |
| Insertion force | ￠1.0 :0.6～2 N /Pin
￠3.6:2～7 N /Pin |
|
| Extraction force | ￠1.0:0.2 N /Pin MIN
￠3.6:0.5 N /Pin MIN |
|
| Durability | 500 cycles | |
| Operating temperature | -55°C to +125°C |
