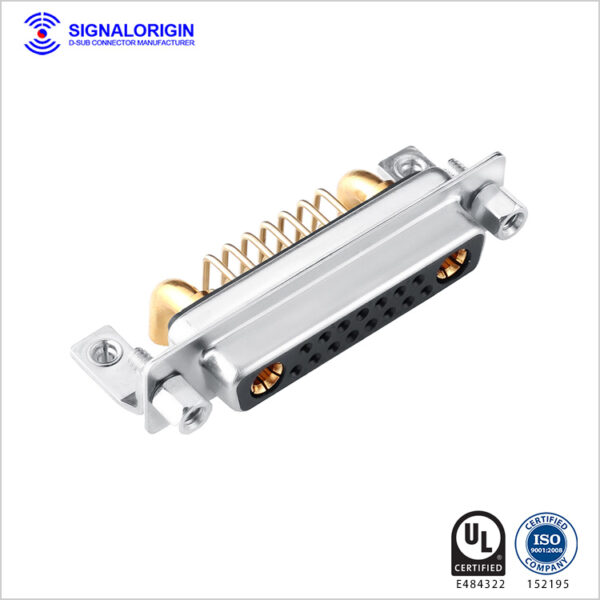

SIGNALORIGIN is a reliable supplier of 17W2 female right-angle combo D-sub connectors, designed for mixed power and signal transmission in compact electronic systems. This power D-sub connector features gold-plated copper alloy contacts for enhanced conductivity and durability. Its robust and shielded design makes it an excellent I/O solution for applications such as set-top boxes, energy meters, control devices, and industrial systems.
Inspired by the standard D-subminiature form factor, SIGNALORIGIN’s power D-sub connectors ensure seamless integration with traditional equipment while offering superior performance in power delivery. We provide a complete range of D-sub products, including solder type, high-density, coaxial, waterproof, and combination D-sub connectors. Looking for a matching solution? You may also like the 17W2 male D-sub connector.
SIGNALORIGIN is a reliable supplier of 17W2 female right-angle combo D-sub connectors, designed for mixed power and signal transmission in compact electronic systems. This power D-sub connector features gold-plated copper alloy contacts for enhanced conductivity and durability. Its robust and shielded design makes it an excellent I/O solution for applications such as set-top boxes, energy meters, control devices, and industrial systems.
Inspired by the standard D-subminiature form factor, SIGNALORIGIN’s power D-sub connectors ensure seamless integration with traditional equipment while offering superior performance in power delivery. We provide a complete range of D-sub products, including solder type, high-density, coaxial, waterproof, and combination D-sub connectors. Looking for a matching solution? You may also like the 17W2 male D-sub connector.
| Material | Insulator material | PBT thermoplastic, UL94-V0 fireproof rated |
| Insulator color | Black/Blue (can be customized) | |
| Contacts material | Phosphor Copper | |
| Contact plating | Gold Plated, 1U”-30U” | |
| Shell material | Steel/SPCC-SD, nickel or tin plated | |
| Electrical | Working voltage | 300V AC |
| High power contacts current rating | 10A-40A(customized) | |
| Signal contacts current rating | 3A | |
| Contact resistance | 15mΩ Max | |
| Insulation resistance | 2000MΩ Min.at 500v DC | |
| Mechanical | Dielectric withstanding voltage | 1000V AC rms at 1 minute |
| Insertion force | ￠1.0 :0.6～2 N /Pin
￠3.6:2～7 N /Pin |
|
| Extraction force | ￠1.0:0.2 N /Pin MIN
￠3.6:0.5 N /Pin MIN |
|
| Durability | 500 cycles | |
| Operating temperature | -55°C to +125°C |
