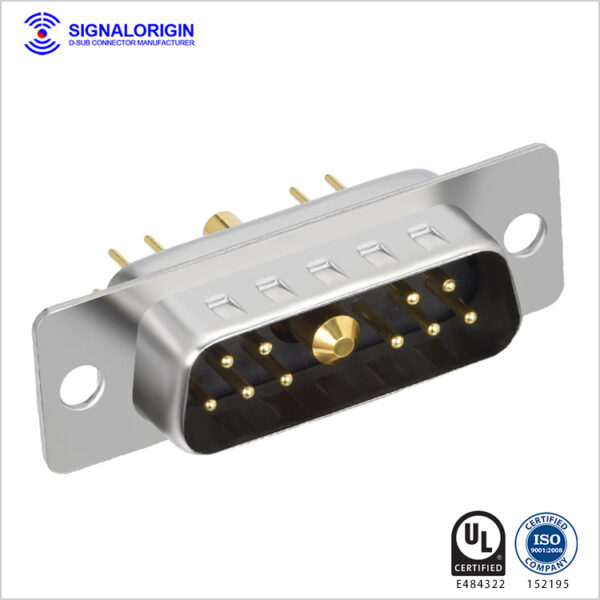

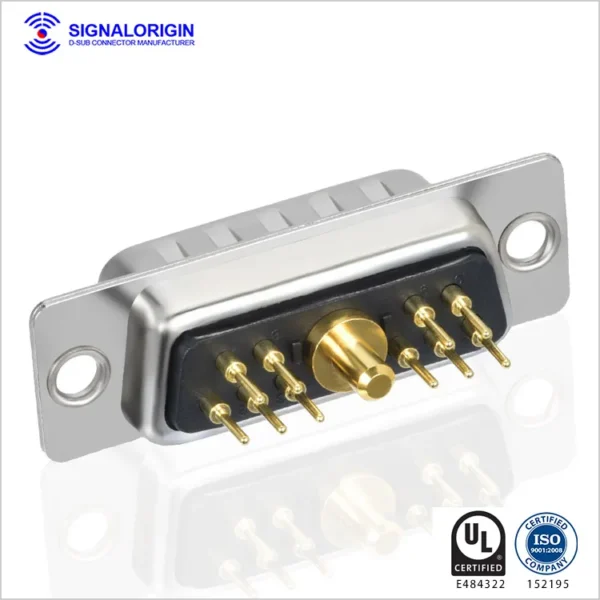

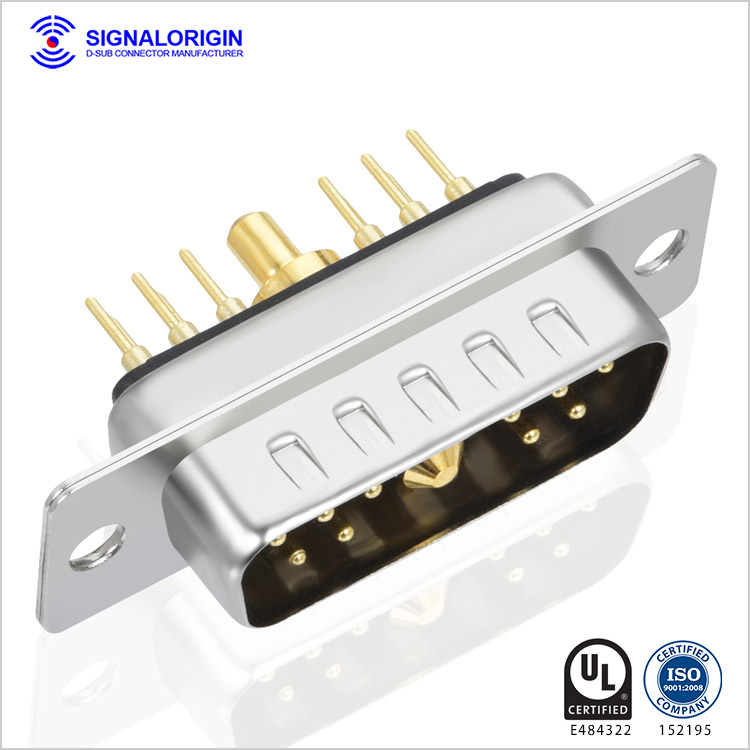

11W1 male mixed contact d type connector

The 11W1 male mixed contact D-Sub connector combines the benefits of an industry-standard I/O interface with the flexibility of customized configurations. Designed within the standard D-Sub shell size, this connector offers a hybrid of power, signal, or high-voltage contacts—ideal for versatile and demanding electronic applications. All contacts are CNC machined and available with dual plating options to ensure superior conductivity, mechanical strength, and corrosion resistance.

This connector is widely used in power systems, industrial equipment, military electronics, communication devices, and automation control. Looking for the matching counterpart? Check out our 11W1 female D-Sub connectors for full compatibility.

Product Description

The 11W1 male mixed contact D-Sub connector combines the benefits of an industry-standard I/O interface with the flexibility of customized configurations. Designed within the standard D-Sub shell size, this connector offers a hybrid of power, signal, or high-voltage contacts—ideal for versatile and demanding electronic applications. All contacts are CNC machined and available with dual plating options to ensure superior conductivity, mechanical strength, and corrosion resistance.

This connector is widely used in power systems, industrial equipment, military electronics, communication devices, and automation control. Looking for the matching counterpart? Check out our 11W1 female D-Sub connectors for full compatibility.

Material Insulator material PBT thermoplastic, 30% Glass filled, UL 94V-O rated
Insulator color Black/Blue (can be customized)
High power contact Copper alloy material, gold plated
Connector with signal contact material Copper alloy, Gold plated
Shell material Steel or copper alloy material, Tin/Ni or Au finished
Electrical High power contact current rating 10, 20, 30, 40 A (can be customized)
Connector with signal contact current rating 3A
The working voltage 300V
High power contact resistance 2.7 milliohms max
Insulation resistance 2000 megaohms min
Mechanical Dielectric withstanding voltage 1000V AC rms  at 1 minute
Insertion force ¢1.0 :0.6~2 N /Pin

¢3.6:2~7 N /Pin

Extraction force ¢1.0:0.2 N /Pin MIN

¢3.6:0.5 N /Pin MIN

Durability 500 cycles
Operating temperature -55°C to +125°C
