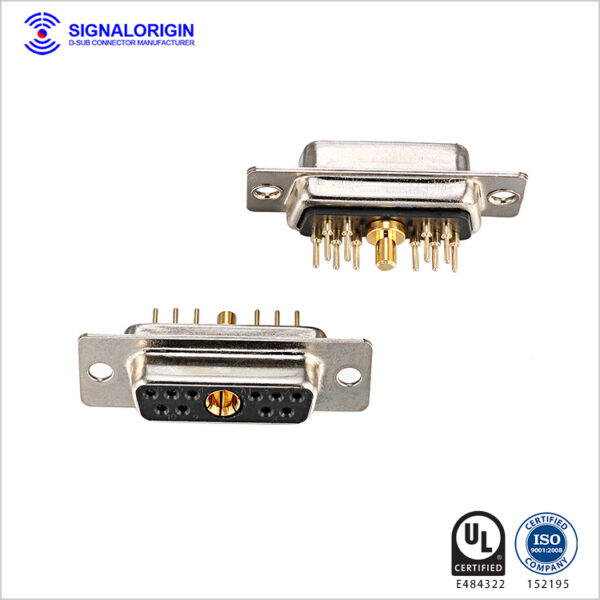

SIGNALORIGIN is a reliable supplier of 11W1 female D-Sub mixed terminal connectors, offering high-performance solutions for power and signal integration. This connector features 1 power contact (10A–40A customizable) and 10 signal contacts, all machined for enhanced current-carrying capacity, contact precision, and mechanical durability. Gold-plated finishes ensure superior conductivity and corrosion resistance.
Ideal for use in industrial control systems, communication devices, automation, and embedded electronics, the 11W1 D-Sub connector supports a wide variety of electronic applications. Need a perfect match? Explore our 11W1 male D-Sub connectors for seamless connectivity.
SIGNALORIGIN is a reliable supplier of 11W1 female D-Sub mixed terminal connectors, offering high-performance solutions for power and signal integration. This connector features 1 power contact (10A–40A customizable) and 10 signal contacts, all machined for enhanced current-carrying capacity, contact precision, and mechanical durability. Gold-plated finishes ensure superior conductivity and corrosion resistance.
Ideal for use in industrial control systems, communication devices, automation, and embedded electronics, the 11W1 D-Sub connector supports a wide variety of electronic applications. Need a perfect match? Explore our 11W1 male D-Sub connectors for seamless connectivity.
| Material | Insulator material | PBT thermoplastic, 30% Glass filled, UL 94V-O rated |
| Insulator color | Black/Blue (can be customized) | |
| High power contact | Copper alloy material, gold plated | |
| Connector with signal contact material | Copper alloy, Gold plated | |
| Shell material | Steel or copper alloy material, Tin/Ni or Au finished | |
| Electrical | High power contact current rating | 10, 20, 30, 40 A (can be customized) |
| Connector with signal contact current rating | 3 AMP | |
| The working voltage | 300V | |
| High power contact resistance | 2.7 milliohms max | |
| Insulation resistance | 2000 megaohms min | |
| Mechanical | Dielectric withstanding voltage | 1000 v AC for 1 minute |
| Insertion force | ￠1.0 :0.6～2 N /Pin
￠3.6:2～7 N /Pin |
|
| Extraction force | ￠1.0:0.2 N /Pin MIN
￠3.6:0.5 N /Pin MIN |
|
| Durability | 500 cycles | |
| Operating temperature | -55°C to +105°C |
