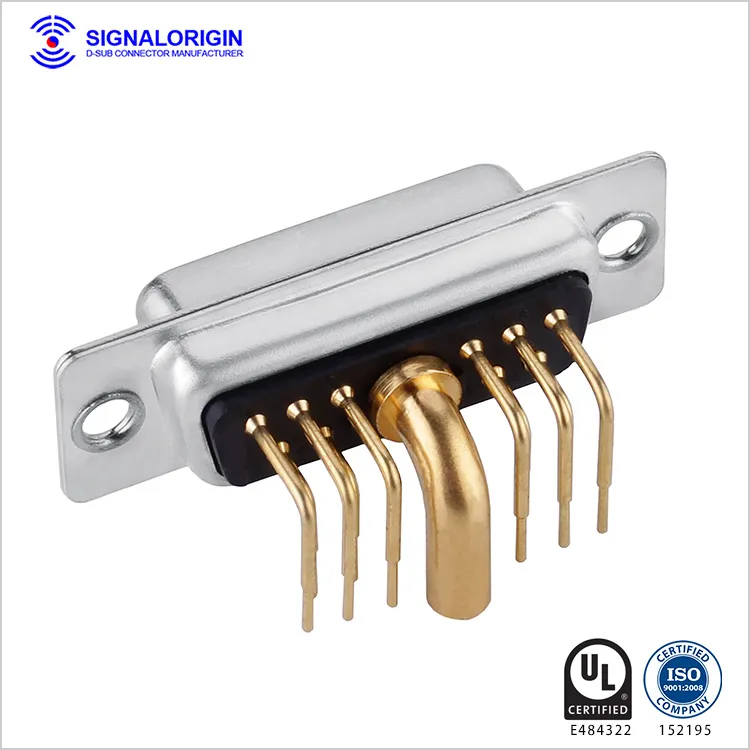

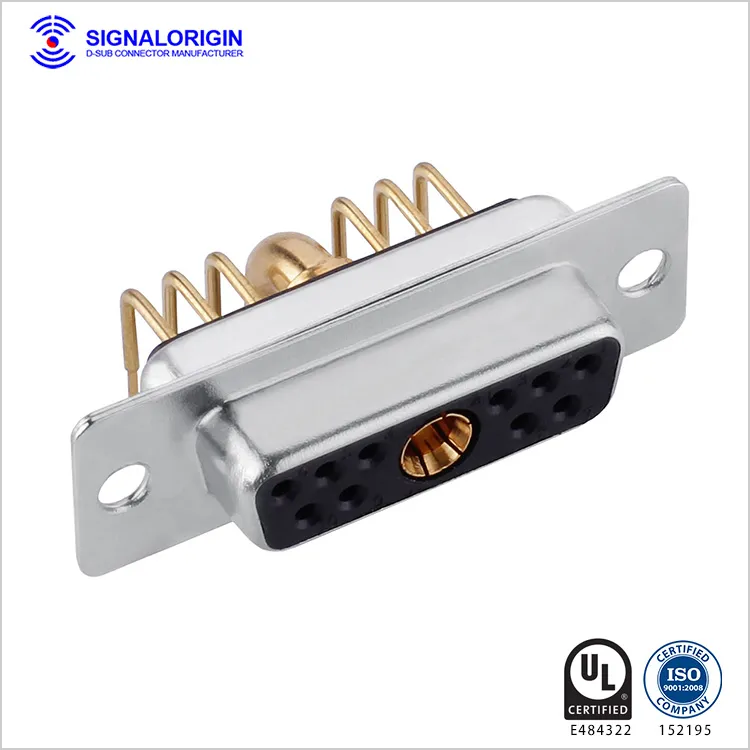

Signalorigin Is A Trusted Manufacturer Of The 11w1 D-Sub Female Right Angle High Current Connector In China, Offering Compact And Efficient Solutions For Power And Signal Transmission. This Power D-Sub Connector Features 1 High Current Contact (10a–40a Customizable) And 10 Signal Contacts, With Precision-Machined Terminals Available In Various Sizes To Meet Specific Current Demands. The Connector Can Also Be Configured With All Signal Contacts, Providing Flexibility For A Wide Range Of Applications.
Engineered For Industrial Equipment, Communication Systems, Power Distribution, And Custom Control Devices, Our D-Subminiature Connectors Deliver Excellent Durability, Sealability, And Reliability. Signalorigin Offers Ul-Certified And Iso 9001-Compliant Products, With 3–5 Free Samples, Fast Delivery (3–7 Days), And Customized Service Options To Support Your Project Needs.
Signalorigin Is A Trusted Manufacturer Of The 11w1 D-Sub Female Right Angle High Current Connector In China, Offering Compact And Efficient Solutions For Power And Signal Transmission. This Power D-Sub Connector Features 1 High Current Contact (10a–40a Customizable) And 10 Signal Contacts, With Precision-Machined Terminals Available In Various Sizes To Meet Specific Current Demands. The Connector Can Also Be Configured With All Signal Contacts, Providing Flexibility For A Wide Range Of Applications.
Engineered For Industrial Equipment, Communication Systems, Power Distribution, And Custom Control Devices, Our D-Subminiature Connectors Deliver Excellent Durability, Sealability, And Reliability. Signalorigin Offers Ul-Certified And Iso 9001-Compliant Products, With 3–5 Free Samples, Fast Delivery (3–7 Days), And Customized Service Options To Support Your Project Needs.
| Material | Insulator material | PBT thermoplastic, UL94-V0 fireproof rated |
| Insulator color | Black/Blue (can be customized) | |
| Contacts material | Brass | |
| Contact plating | Gold Plated, 1U”-30U” | |
| Shell material | Steel/SPCC-SD, nickel or tin plated | |
| Electrical | Working voltage | 300V AC |
| High power contacts current rating | 10A-40A(customized) | |
| Signal contacts current rating | 3A | |
| Contact resistance | 2.7 milliohms max | |
| Insulation resistance | 2000MΩ Min.at 500v DC | |
|
Mechanical |
Dielectric withstanding voltage | 1000V AC rms at 1 minute |
| Insertion force | ￠1.0 :0.6～2 N /Pin ￠3.6:2～7 N /Pin |
|
| Extraction force | ￠1.0:0.2 N /Pin MIN ￠3.6:0.5 N /Pin MIN |
|
| Durability | 500 cycles | |
| Operating temperature | -55°C to +125°C |
