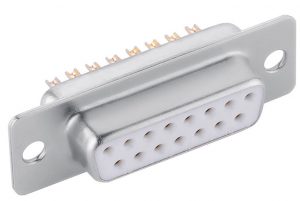

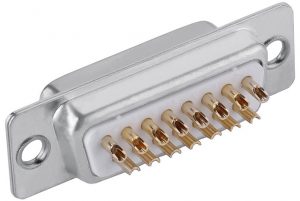

D-sub connector 15 pin female solder cup type
描述
SIGNALORIGIN is the D-sub connector 15 pin female solder cup type manufacturer. Our D-sub connector 15 pin range consists of both male and female connectors in various terminations such as solder buckets, straight and right angled solder pins with 9, 15, 25 and 37 contact versions. Suitable for military, aerospace, industrial, medical, telecom and computer applications. Our D-Subminiature connector portfolio is designed for multiple applications along with specialized accessories that will provide any customer with an economical d-sub solution for any complex application. You may like DB 15 connector from Signalorigin in China
Types of d-sub connectors and their uses
Specification of D-sub connector 15 pin female solder cup type
| P/N | XHY-06-0002 | ||
|---|---|---|---|
|
|
Material | Insulator material | PBT+30% G. F(UL94V-O) |
| Insulator color | Black/Blue (can be customized) | ||
| Contacts material | Copper alloy | ||
| Contact plating | Gold flash over nickel, 1U”-30U” | ||
| Shell material | SPCC, NICKEL/TIN plated | ||
| Screws | Copper alloy/Ni plated | ||
| Electrical | Working voltage | 300V | |
| Contact current rating | 5A (customized) | ||
| Contact resistance | 15mΩ Max | ||
| Insulation resistance | 1000MΩ Min.at 500v DC | ||
| Mechanical | Dielectric strength | 500V AC rms for 1 minute | |
| Insertion force | ￠1.0 :0.6～2 N /Pin ￠3.6:2～7 N /Pin |
||
| Extraction force | ￠1.0:0.2 N /Pin MIN ￠3.6:0.5 N /Pin MIN |
||
| Durability | 500 cycles | ||
| Operating temperature | -55°C to +125°C | ||

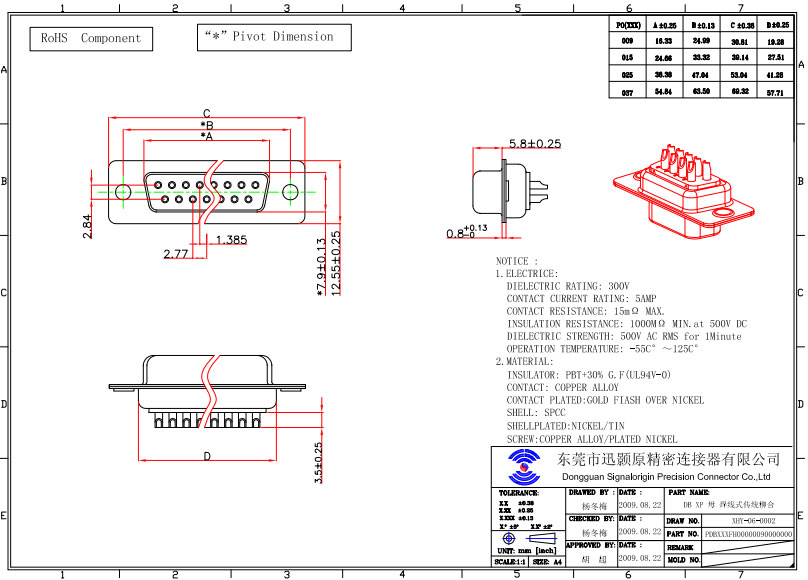

Drawing of D-sub connector 15 pin female solder cup type
Variety of D-sub connectors
 |
 |
 |
 |
 |
||||
| Stander D-sub | Coaxial D-sub | Combo D-sub | High density D-sub | Waterproof D-sub |
Products Certifications
Signalorigin company is the professional manufacturer of D-sub connector, we have got the global recognition, there are the main certifications of our products.
 |
 |
| Safety UL Certification | ISO9001:2008 |
