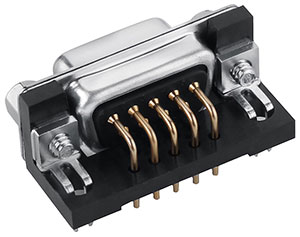

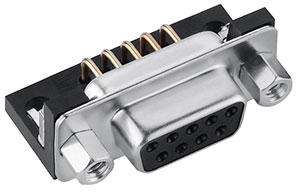

9 pin d-sub connector female pcb right angle
描述
SIGNALORIGIN is the 9 pin d-sub connector female pcb right angle type supplier. Tin shells have indents to provide grounding and additional retention. Machine contacts ensure maximum operational efficiency during high intensity and mission critical application.
This connector is flame retardant glass filled PBT insulators and gold over nickel plated machined contacts are housed in nickel or tin plated steel shells. d-sub high density connectors is to provide a higher density of contacts within the standard d-sub shell pattern.
Our D-Subminiature connector portfolio is designed for multiple applications along with specialized accessories that will provide any customer with an economical d-sub solution for any complex application.
Specification of 9 pin d-sub connector female pcb right angle
| P/N | XHY-06-0023 | ||
|---|---|---|---|
|
|
Material | Insulator material | PBT+30% G. F(UL94V-O) |
| Insulator color | Black/Blue (can be customized) | ||
| Contacts material | Copper alloy | ||
| Contact plating | Gold flash over nickel, 1U”-30U” | ||
| Shell material | SPCC | ||
| Shell plated | Nicker/Tin | ||
| Electrical | Working voltage | 300V | |
| Contact current rating | 5A (customized) | ||
| Contact resistance | 15mΩ Max | ||
| Insulation resistance | 1000MΩ Min.at 500v DC | ||
| Mechanical | Dielectric strength | 500V AC rms for 1 minute | |
| Insertion force | ￠1.0 :0.6～2 N /Pin ￠3.6:2～7 N /Pin |
||
| Extraction force | ￠1.0:0.2 N /Pin MIN ￠3.6:0.5 N /Pin MIN |
||
| Durability | 500 cycles | ||
| Operating temperature | -55°C to +125°C | ||

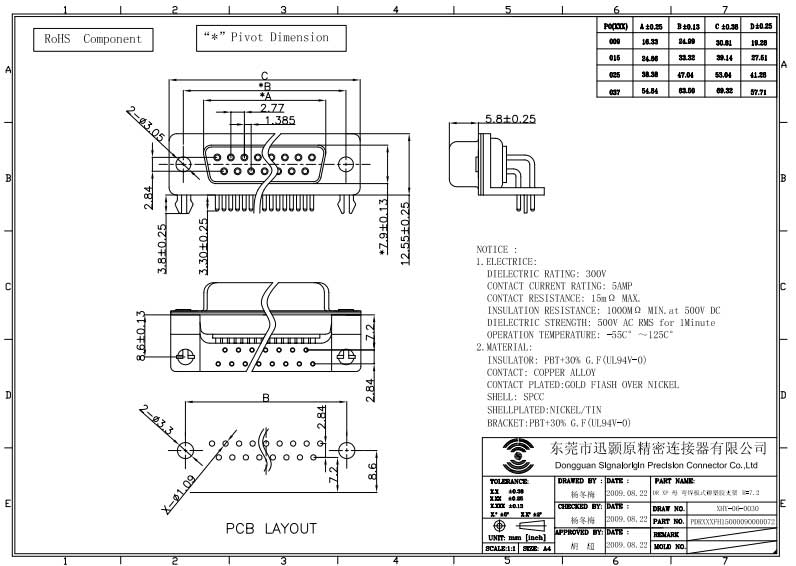

Drawing of 9 pin d-sub connector female pcb right angle
Variety of D-sub connectors
 |
 |
 |
 |
 |
||||
| Stander D-sub | Coaxial D-sub | Combo D-sub | High density D-sub | Waterproof D-sub |
Products Certifications
Signalorigin company is the professional manufacturer of D-sub connector, we have got the global recognition, there are the main certifications of our products.
 |
 |
| Safety UL Certification | ISO9001:2008 |
