13W3 D-Sub coaxial female right angle connector manufacturer in China. The Coaxial D-Sub with mixed layout mixes both coaxial contacts and signal contacts that it provides the ideal solution for applications to require power, signal and coaxial connections within one connector. The high frequency contact current rating of coaxial contacts is 50 or 75 ohm. You may like other 13W3 connector

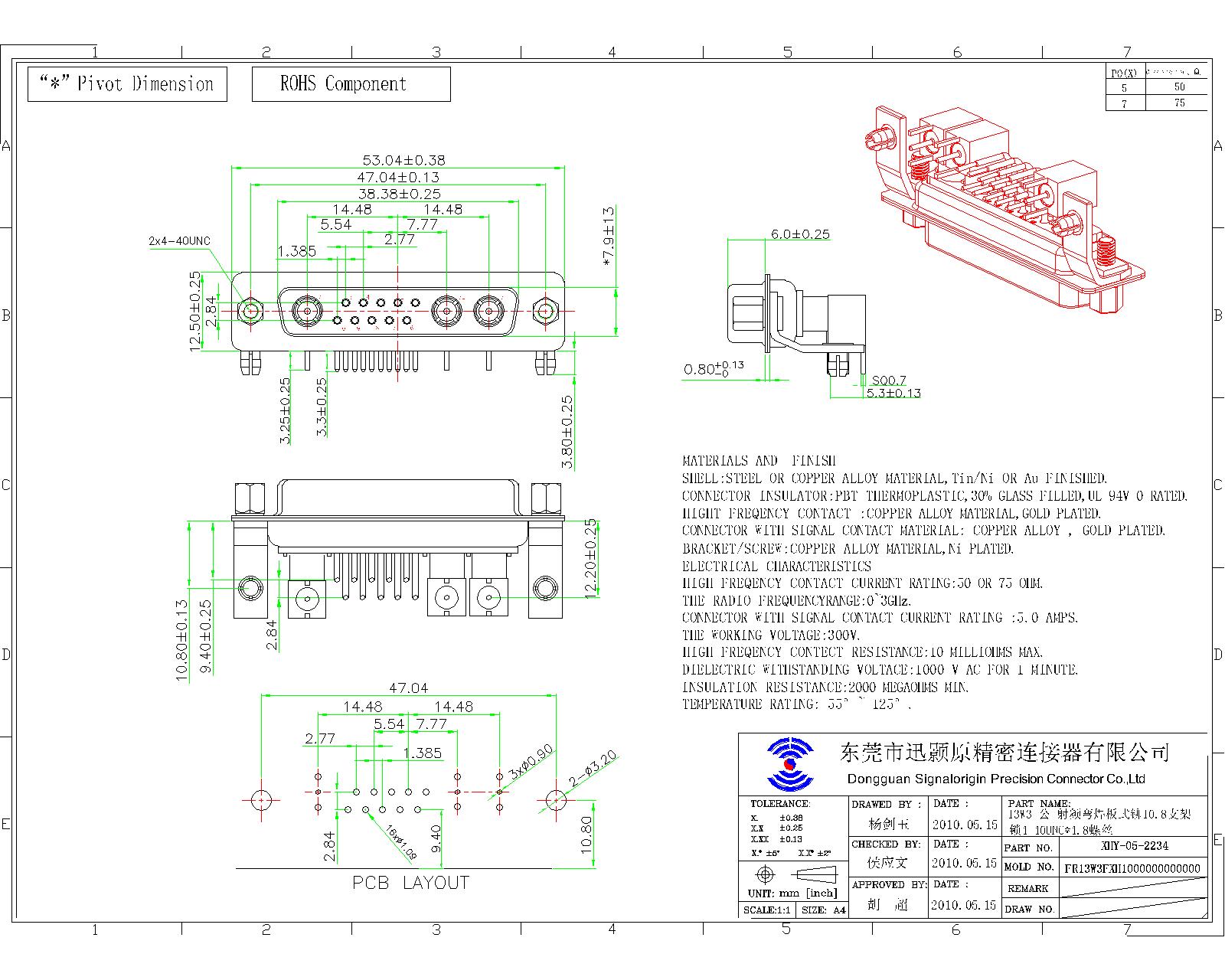

| P/N | XHY-05-2234 | ||
|---|---|---|---|
|
|
Material | Insulator material | PBT thermoplastic, 30% Glasss filled, UL94V- O |
| Insulator color | Black/Blue (can be customized) | ||
| High frequency contact | Copper alloy material, gold plated | ||
| Connector with signal contact | Copper alloy, gold plated | ||
| Fork | Copper alloy, Ni plated | ||
| Shell Material | Steel/SPCC-SD, Nickel or tin plated | ||
| Electrical | High frequency contact current rating | 50 or 75 ohm | |
| The radio frequency range | 0~3Ghz | ||
| Connector with signal contact current rating | 5 Amps | ||
| The working voltage | 300V | ||
| Contact resistance | 10 milliohms mas | ||
| Mechanical | Dielectric Withstanding Voltage | 1000V AC rms at 1 minute | |
| Insertion force | ￠1.0 :0.6～2 N /Pin ￠3.6:2～7 N /Pin |
||
| Extraction force | ￠1.0:0.2 N /Pin MIN ￠3.6:0.5 N /Pin MIN |
||
| Durability | 500 cycles | ||
| Operating temperature | -55°C to +125°C | ||
