All coax contacts are precision machined
Coaxial contact impedance: 50Ω+/-5Ω；75Ω+/-5Ω
Dielectric withstanding voltace: 750v ac for 1 minute
All our contacts are RoHS & UL Compliant versions available
Inquiry Now

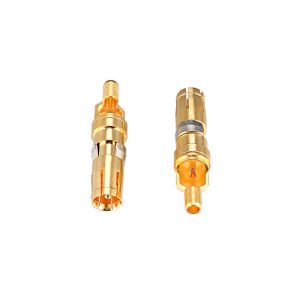

D sub male connector solder cup coaxial contact supplier
描述
D sub male connector solder cup coaxial contact supplier. This gold contact is made of gold over nickel plated copper alloy, high performance, precision machined contacts, solder cup standard mating types, the coaxial contact impedance is 50Ω+/-5Ω；75Ω+/-5Ω. The contacts are durablbe and strength, 500 mating cycles.
Specification of D sub male connector solder cup coaxial contact supplier
| P/N | XHY-07-0013 | ||
|---|---|---|---|
|
|
Material | Contacts material | Brass |
| Contact Plating | Gold Plated, 1U”-30U” | ||
| Contact insulator material | TEFLON | ||
| Electrical | Working Voltage | 250V AC | |
| Contact resistance | 3mΩ | ||
| Coaxial contact impedance | 50Ω；75Ω | ||
| The radio frequency range | 0~4ghz. | ||
| Voltage standing wave ratio | 1.3max | ||
| Insulation resistance | 2000MΩ Min | ||
| Mechanical | Dielectric Withstanding Voltage | 750V AC rms at 1 minute | |
| Insertion force | 2-7 N /Pin | ||
| Extraction force | 0.5 N /Pin | ||
| Durability | 500 cycles | ||
| Operating temperature | -55°C to +125°C | ||

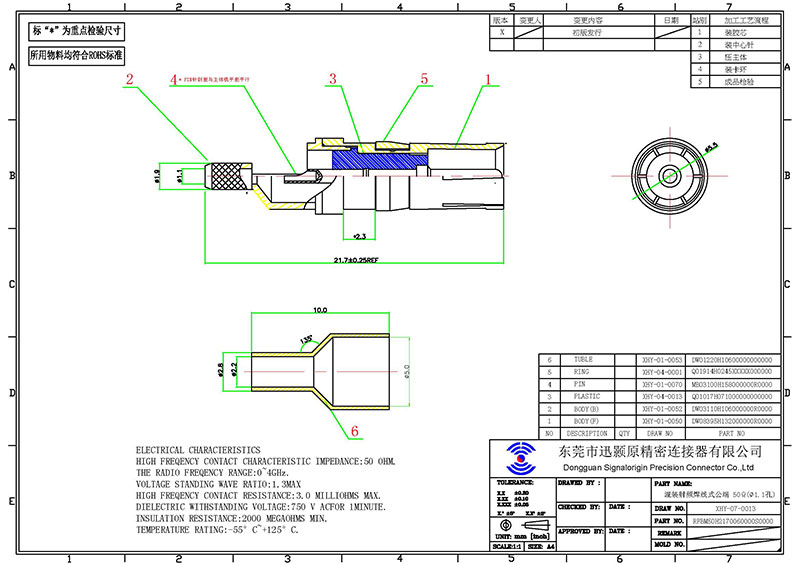

Drawing of d sub male connector solder cup coaxial contact supplier
Variety of D-sub connectors
 |
 |
 |
 |
 |
||||
| Stander D-sub | Coaxial D-sub | Combo D-sub | High density D-sub | Waterproof D-sub |
