High current rating:10A, 20A, 30A, 40A
Allows signal, high current & high voltage in one connector
Corrosion protected & corrosion resistant options
RoHS & UL Compliant versions available
Inquiry Now

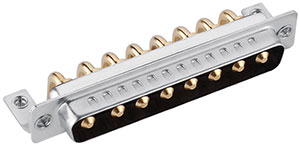

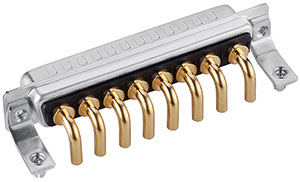

8W8 D-sub high current male connector right angle type
描述
SIGNALORIGIN is the 8W8 D-sub high current male connector right angle type manufacturer. The Power contacts are available with current rating ranging between 10A – 40A with only the size of the terminal being different.
Our D-Subminiature connector portfolio is designed for multiple applications along with specialized accessories that will provide any customer with an economical d-sub solution for any complex application.
- D-sub with flexibility, durability, sealability
- High current rating:10A, 20A, 30A, 40A customization
- Safety UL certification and ISO 9001 Quality standard
- Personal and friendly customer service
- Comprehensive product size, and customization available
- 3~5 set free sample are provide for you
- Short-term products delivery, normally 3~7 days
Specification of 8W8 D-sub high current male connector right angle type
| P/N | XHY-05-1608 | ||
|---|---|---|---|
|
|
Material | Insulator material | PBT thermoplastic, UL94-V0 fireproof rated |
| Insulator color | Black/Blue (can be customized) | ||
| Contacts material | Brass | ||
| Contact plating | Gold Plated, 1U”-30U” | ||
| Shell material | Steel/SPCC-SD, nickel or tin plated | ||
| Electrical | Working voltage | 300V AC | |
| High power contacts current rating | 10A-40A(customized) | ||
| Contact resistance | 2.7 milliohms max | ||
| Insulation resistance | 2000MΩ Min.at 500v DC | ||
| Mechanical | Dielectric withstanding voltage | 1000V AC rms at 1 minute | |
| Insertion force | ￠1.0 :0.6～2 N /Pin ￠3.6:2～7 N /Pin |
||
| Extraction force | ￠1.0:0.2 N /Pin MIN ￠3.6:0.5 N /Pin MIN |
||
| Durability | 500 cycles | ||
| Operating temperature | -55°C to +125°C | ||

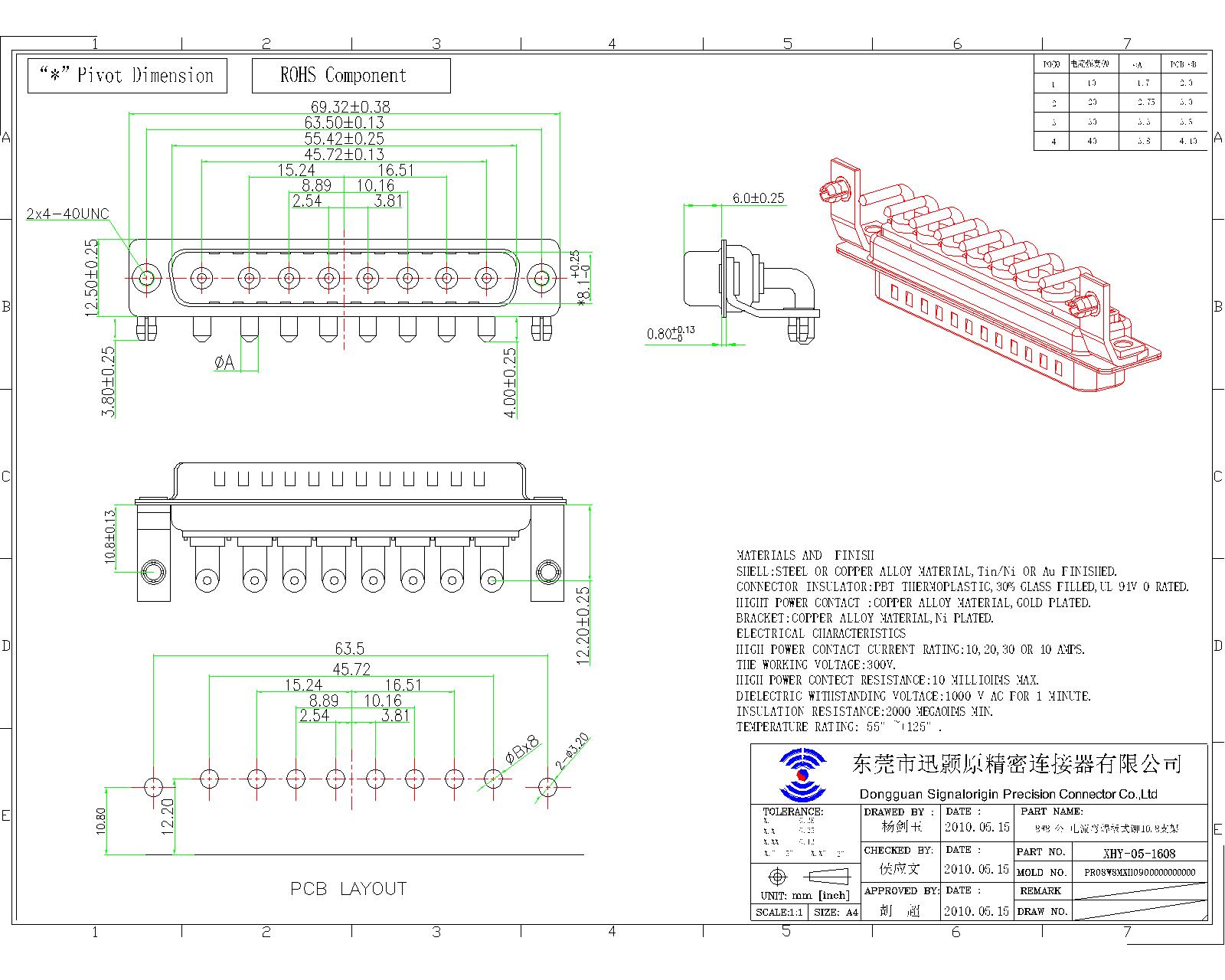

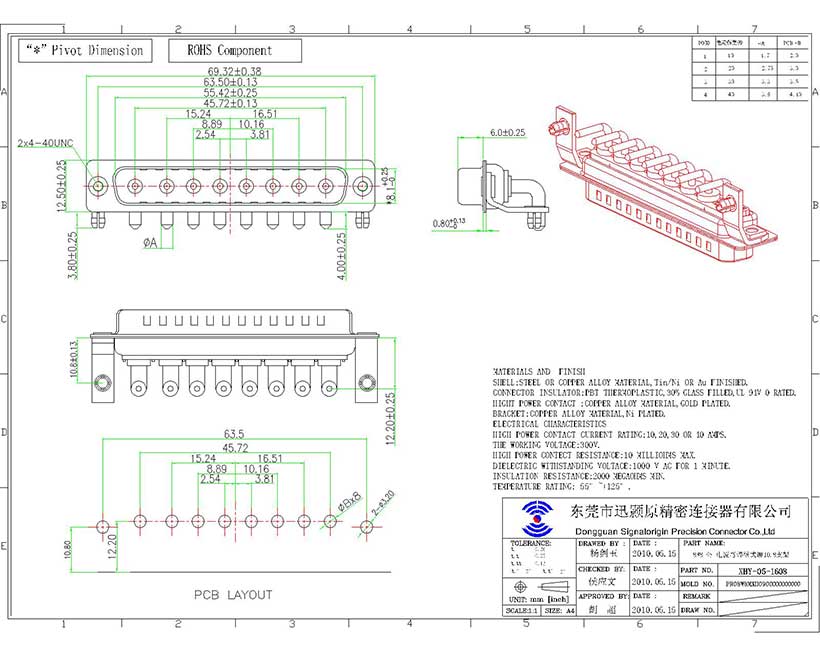

Drawing of 8W8 D-sub high current male connector right angle type
