62 pin d-sub connector plug solder cup type
描述
SIGNALORIGIN is the 62 pin d-sub connector plug solder cup type supplier. This high density connector are available in 7 industry sizes/positions (9, 15, 25, 37, 50, 62, 78). Non-removable contacts, Tin shells have indents to provide grounding and additional retention. Machine contacts ensure maximum operational efficiency during high intensity and mission critical application.
This connector is flame retardant glass filled PBT insulators and gold over nickel plated machined contacts are housed in nickel or tin plated steel shells. d-sub high density connectors is to provide a higher density of contacts within the standard d-sub shell pattern.
Our D-Subminiature connector portfolio is designed for multiple applications along with specialized accessories that will provide any customer with an economical d-sub solution for any complex application.
Specification of 62 pin d-sub connector plug solder cup type
| P/N | XHY-06-0191 | ||
|---|---|---|---|
|
|
Material | Insulator material | PBT+30% G. F(UL94V-O) |
| Insulator color | Black/Blue (can be customized) | ||
| Contacts material | Copper alloy | ||
| Contact plating | Gold flash over nickel, 1U”-30U” | ||
| Shell material | SPCC | ||
| Shell plated | Nicker/Tin | ||
| Electrical | Working voltage | 300V | |
| Contact current rating | 3A (customized) | ||
| Contact resistance | 15mΩ Max | ||
| Insulation resistance | 1000MΩ Min.at 500v DC | ||
| Mechanical | Dielectric strength | 500V AC rms for 1 minute | |
| Insertion force | ￠1.0 :0.6～2 N /Pin ￠3.6:2～7 N /Pin |
||
| Extraction force | ￠1.0:0.2 N /Pin MIN ￠3.6:0.5 N /Pin MIN |
||
| Durability | 500 cycles | ||
| Operating temperature | -55°C to +125°C | ||

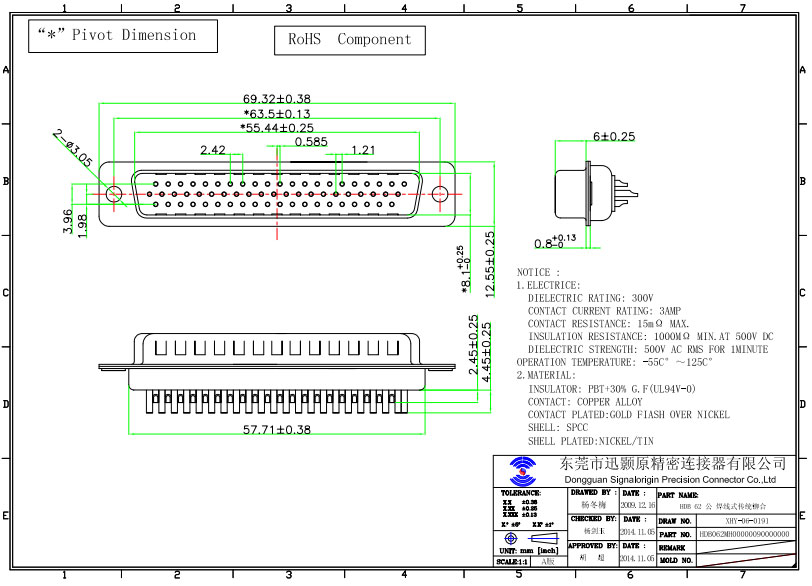

Drawing of 62 pin d-sub connector plug solder cup type
Variety of D-sub connectors
 |
 |
 |
 |
 |
||||
| Stander D-sub | Coaxial D-sub | Combo D-sub | High density D-sub | Waterproof D-sub |
Products Certifications
Signalorigin company is the professional manufacturer of D-sub connector, we have got the global recognition, there are the main certifications of our products.
 |
 |
| Safety UL Certification | ISO9001:2008 |
About us
We are specializing in designing and producing D-Sub Connectors. We have more than 10 years rich experiences in the electronic industry. In addition. Signalorigin is a brand company of Yang Ming precision electronic company, which has established a long-term strategic cooperative relation of our top 10 companies and these companies have years of experiences in our markets.
