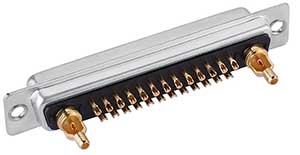

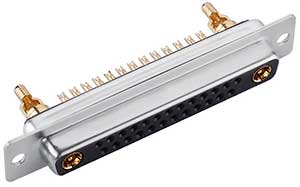

27W2 D-sub coaxial connector female solder cup
描述
SIGNALORIGIN is the 27W2 D-sub coaxial connector female solder cup supplier. Machine contacts ensure maximum operational efficiency during high intensity and mission critical application.
This connector is flame retardant glass filled PBT insulators and gold over nickel plated machined contacts are housed in nickel or tin plated steel shells. d-sub high density connectors is to provide a higher density of contacts within the standard d-sub shell pattern.
Our D-Subminiature connector portfolio is designed for multiple applications along with specialized accessories that will provide any customer with an economical d-sub solution for any complex application.
- D-sub with flexibility, durability, sealability
- The radio frequency: 0~3GHz
- High current rating:10A, 20A, 30A, 40A customization
- Safety UL certification and ISO 9001 Quality standard
- Personal and friendly customer service
- Comprehensive product size, and customization available
- 3~5 set free sample are provide for you
- Short-term products delivery, normally 3~7 days
Specification of 27W2 D-sub coaxial connector female solder cup
| P/N | XHY- | ||
|---|---|---|---|
|
PDF Drawing Download |
Material | Insulator material | PBT thermoplastic, 30% Glass filled, UL 94V-O rated |
| Insulator color | Black/Blue (can be customized) | ||
| Contacts material | Copper alloy material | ||
| Contact plating | Gold flash over nickel, 1U”-30U” | ||
| Shell material | Steel or copper alloy material, Tin/Ni or Au finished | ||
| Electrical | High frequency contact current rating | 50 or 75 ohm | |
| The radio frequency | 0~3GHz | ||
| Connector with signal contact current rating | 5 A | ||
| The working voltage | 300V | ||
| High frequency contact resistance | 10 milliohms max | ||
| Mechanical | Dielectric withstanding voltage | 1000 v AC for 1 minute | |
| Insertion force | ￠1.0 :0.6～2 N /Pin ￠3.6:2～7 N /Pin |
||
| Extraction force | ￠1.0:0.2 N /Pin MIN ￠3.6:0.5 N /Pin MIN |
||
| Durability | 500 cycles | ||
| Operating temperature | -55°C to +125°C | ||
Drawing of 27W2 D-sub coaxial connector female solder cup
Variety of D-sub connectors
 |
 |
 |
 |
 |
||||
| Stander D-sub | Coaxial D-sub | Combo D-sub | High density D-sub | Waterproof D-sub |
Products Certifications
Signalorigin company is the professional manufacturer of D-sub connector, we have got the global recognition, there are the main certifications of our products.
 |
 |
| Safety UL Certification | ISO9001:2008 |
